As medical facilities increasingly standardize on needle-free systems to mitigate Catheter-Related Bloodstream Infections (CRBSIs), manufacturing demand for high-precision connectors is surging. Hospitals rely on these small fluid-pathway devices to protect patient lives daily. Producing them requires absolute precision.
Producing these critical devices requires zero-defect manufacturing environments. Manual assembly cannot meet the strict repeatability, sterile handling, and pressure-testing requirements mandated by ISO and FDA standards. Even minor human errors introduce unacceptable contamination risks during production.
Understanding the internal mechanics and automated workflows of a Needle free valve connector assembly machine is the first step in evaluating capital equipment for your cleanroom. We explore how these specialized automation systems blend robotics, vision inspection, and precision mechanics to guarantee strict clinical compliance.
Automated Precision: Modern assembly machines integrate multi-station rotary or linear indexing to automate feeding, silicone valve insertion, housing closure, and sealing without human intervention.
Inline Quality Control: Built-in CCD vision systems and pressure decay testing ensure 100% of units meet tight medical tolerances before discharge.
Scalability Metrics: Evaluating a machine requires looking beyond theoretical Units Per Hour (UPH) to focus on Overall Equipment Effectiveness (OEE), scrap rates, and cleanroom compatibility.
Risk Mitigation: The biggest implementation hurdles involve tooling wear, changeover times for different connector profiles, and managing particulate generation during assembly.

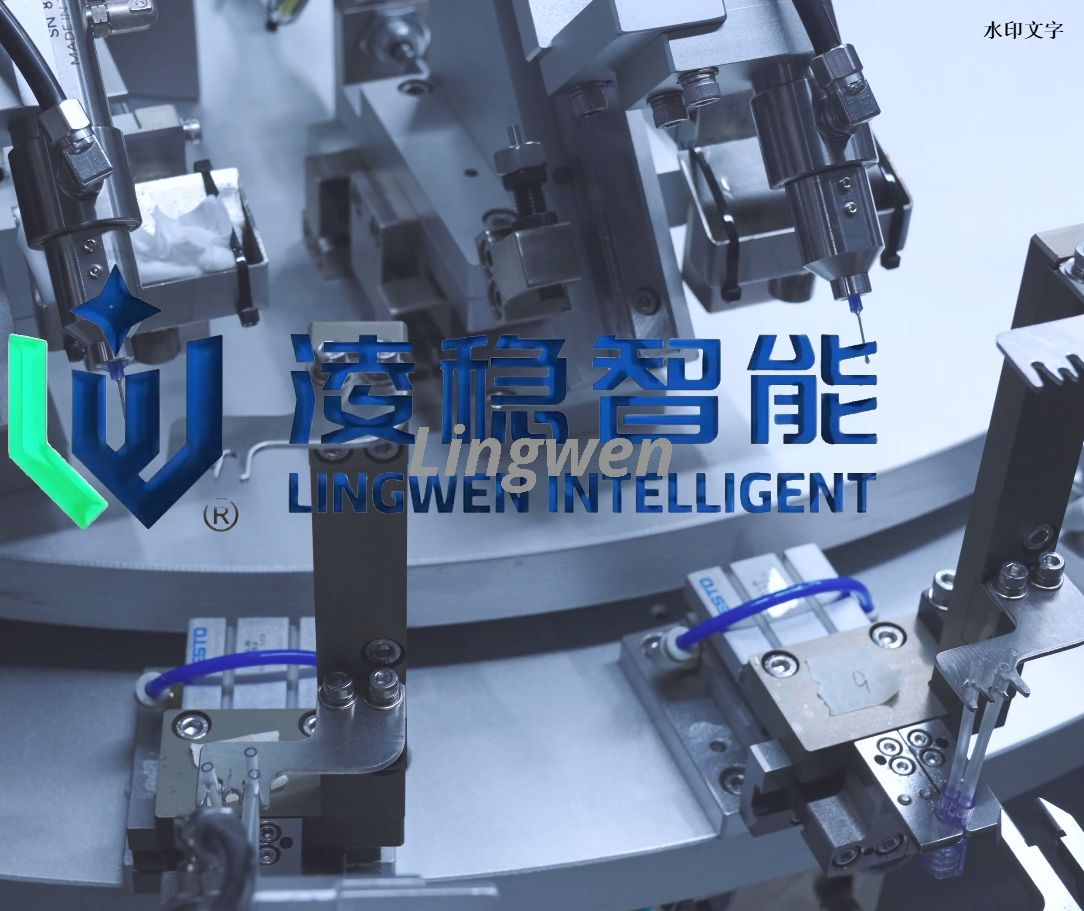

Automated manufacturing systems follow a rigorous sequential process. They move individual components through distinct mechanical stations. Each station performs a highly specific task to build the final medical device.

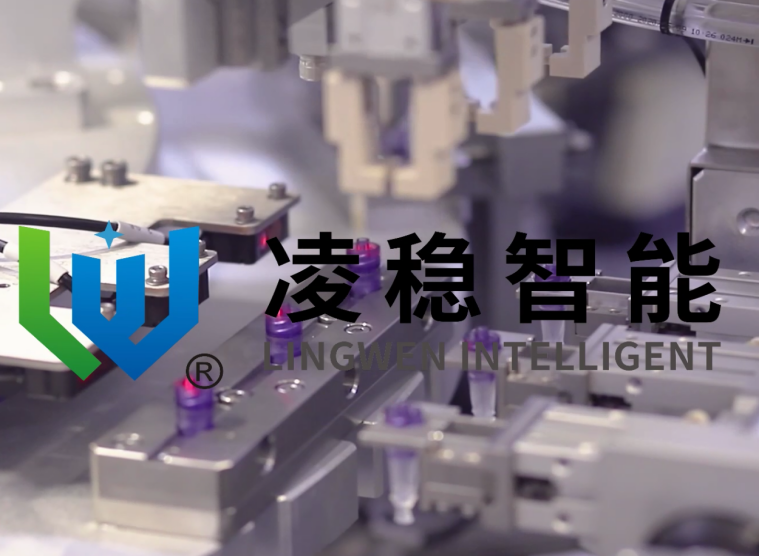

The process begins at the feeding stations. Systems utilize vibratory bowl feeders alongside linear tracks. Engineers apply medical-grade coatings like polyurethane to these metal tracks. These coatings orient the upper housing, silicone gland, and lower base. They prevent micro-abrasions on clear plastic surfaces. Scratched housings can obscure fluid visibility for nurses later. Proper orientation ensures seamless handoffs to the robotic grippers.
Servo-driven pick-and-place robotics manage the central silicone piston. These robots compress and position the internal valve into the rigid housing. Handling flexible silicone parts presents a significant mechanical challenge. Silicone generates static electricity easily. Static causes parts to stick to tracks or grippers. Builders install ionizing air blowers over the feeding zones. They eliminate static buildup to ensure consistent robotic handling.
Next, the machine executes mechanical pressing. It pushes the upper and lower housings together. Automated sealing immediately follows this step. Evaluators must choose a specific sealing technology. You might use ultrasonic welding, UV gluing, or snap-fit mechanical locking. The choice depends entirely on the connector's patented design. Positive, negative, or neutral displacement models require different structural bonds. Ultrasonic welding uses high-frequency vibrations to melt the plastic joint. It creates a hermetic seal without introducing foreign adhesives.
The final mechanical stage involves automated sorting. The system segregates accepted assemblies from rejected parts. Good parts drop into designated cleanroom bins. Failed units divert into a locked rejection chute. This physical separation prevents accidental mixing on the factory floor.
Bulk loading of raw molded components into separate hoppers.
Vibratory sorting and linear track orientation.
Ionization and robotic insertion of the silicone gland.
Mechanical pressing of the external rigid housings.
Permanent sealing via ultrasonic energy or UV curing.
Final segregation into pass or fail receptacles.
Medical manufacturers cannot rely solely on end-of-line batch testing. They integrate quality assurance directly into the moving assembly line. A Needle free valve connector assembly machine features multiple verification checkpoints.
Multi-axis cameras monitor the entire production cycle. They utilize advanced backlighting and raking light techniques. These specific lighting setups help cameras see through transparent plastics. Vision systems verify silicone valve alignment inside the housing. They detect minute plastic flashing or particulate contamination. Cameras also confirm proper housing seating before the sealing process begins. If the software detects a misaligned valve, it flags the part for rejection.
Medical connectors must withstand specific fluid pressures. Systems integrate automated pneumatic testing stations. They verify that the connector holds a specific PSI level. The machine monitors for pressure decay over several milliseconds. A pressure drop indicates a micro-leak. This simulates real-world flushing and locking procedures used by hospital staff. Parts failing this pneumatic test divert immediately to the scrap bin.
Regulatory compliance demands rigorous production documentation. Programmable Logic Controller (PLC) systems handle this task. They log pass and fail data for every single batch. This data logging supports ISO 13485 quality management standards. Operators can track production anomalies back to specific assembly stations. If station four begins failing pressure tests, engineers can recalibrate it immediately.
Common Defects Caught by Inline Systems:
Inverted or pinched silicone valves.
Incomplete ultrasonic weld seams.
Foreign particulate matter inside the fluid path.
Micro-cracks in the clear polycarbonate housing.
Out-of-tolerance pressure decay rates.
Procuring capital equipment requires evaluating distinct operational metrics. Buyers must align machine capabilities with their exact cleanroom environment.
Decision-makers should heavily discount "maximum speed" claims on brochures. Focus instead on sustained Units Per Hour (UPH). You must factor in expected reject rates and machine downtime. Overall Equipment Effectiveness (OEE) provides a much better metric. It multiplies availability, performance, and quality. A machine running at 3,000 UPH but generating 10% scrap is highly inefficient. A stable machine running at 2,400 UPH producing zero defects is always superior.
Medical assembly happens in controlled environments. You must assess the machine footprint carefully. Look for 304 or 316L stainless steel construction. Enclosed servo motors are mandatory. They prevent metallic dust from contaminating the assembly zone. Low-particulate generation designs suit Class 7 or Class 8 cleanrooms perfectly. Engineers often install localized HEPA filter hoods directly over the dial table.
Many manufacturers produce multiple connector variants. You must evaluate the time required to switch production. Tooling changes switch between different needle-free connector models. Changing from Y-site connectors to standard Luer locks can take hours. Modern systems use modular, tool-less quick-change fixtures. This poka-yoke design prevents operators from installing the wrong fixture during a changeover.
Table: Evaluation Metrics Matrix
| Evaluation Category | Standard Requirement | Advanced Capability |
|---|---|---|
| Throughput | 1,500 - 2,000 UPH | 3,000+ UPH with high OEE |
| Cleanroom Level | ISO Class 8 compatible | ISO Class 7 with enclosed pneumatics |
| Changeover Time | 2 to 4 hours (manual tools) | Under 45 minutes (tool-less fixtures) |
| Vision Inspection | Basic presence/absence check | 360-degree defect & dimension analysis |
Deploying a customized automation line involves engineering hurdles. Facility managers must prepare for real-world production variables. Installing a Needle free valve connector assembly machine requires diligent planning.
Machine components degrade over millions of cycles. Ultrasonic welding horns represent a significant maintenance focus. The titanium horns wear down gradually. This degradation leads to weak welds or micro-leaks over time. Maintenance teams must follow strict calibration schedules. Routine amplitude testing ensures the ultrasonic stack delivers consistent melting energy to the plastic joints.
Automation assumes raw materials remain perfectly consistent. Reality proves otherwise. Slight variations occur in raw material batches. The Shore hardness (durometer) of the silicone valves can fluctuate. A slightly softer silicone batch can cause machine jams at the insertion station. Operators must recognize these variances quickly. They require immediate servo parameter adjustments to prevent massive batch failures. Standardize your injection molding tolerances strictly.
Never skip a comprehensive FAT at the builder's facility. It proves the machine works before it ships. You must run large-scale pilot batches during this test. Bring your specific injection-molded parts. Running 10,000 actual parts exposes micro-stoppages. It validates true OEE under sustained load. Simulating real production uncovers track jams and sensor blind spots early.
Secure bulk samples of all plastic components months before FAT.
Train internal maintenance staff directly at the vendor's facility.
Establish a clear spare parts inventory for wearable items like vacuum cups.
Document all baseline servo torque parameters for the silicone insertion step.
Selecting the right automation partner defines project success. Medical device assembly demands niche engineering expertise. A Needle free valve connector assembly machine is not a standard packaging line.
General automation builders often struggle with medical fluid-pathway devices. They underestimate the strict particulate controls needed. Specialized medical automation vendors understand ISO 80369-7 Luer standards implicitly. They know how to handle soft silicone without tearing it. Always ask potential vendors to demonstrate prior projects involving similar vascular access components.
Medical machinery procurement requires heavy documentation. You must ask if the manufacturer provides comprehensive validation packages. Installation Qualification (IQ) proves the machine is installed correctly. Operational Qualification (OQ) proves it operates within specified limits. Performance Qualification (PQ) proves it produces acceptable parts consistently. Pre-written protocols from the vendor accelerate your internal FDA or CE validation processes dramatically.
Begin by mapping out your specific connector design. Determine your required daily volume to calculate necessary UPH. Measure your available cleanroom footprint precisely. Provide these three data points to your shortlisted suppliers. Request accurate proposals and initial feasibility studies. They will determine if your connector requires linear indexing or a continuous rotary dial approach.
A needle free valve connector assembly machine is a complex integration of precision handling, advanced joining technologies, and rigorous quality verification. It transforms raw molded plastics and silicone into life-saving medical devices. Success requires balancing high-speed throughput with uncompromising inline inspections.
The right equipment not only meets current production quotas but safeguards your brand. It protects against the severe clinical consequences of a defective medical connector. Facilities must prioritize vendors offering robust cleanroom compatibility and thorough validation documentation.
Contact our engineering team for a feasibility assessment of your needle-free connector design, or request a customized layout and UPH estimation based on your facility's requirements.
A: Varies by automation level (semi vs. fully automated) and testing stations, typically ranging from 1,200 to 3,600+ UPH.
A: Yes, provided the machine features modular tooling and programmable servo stations, though significant design differences may require dedicated lines.
A: Through the use of medical-grade stainless steel, enclosed pneumatics, minimal-friction guide rails, and high-efficiency particulate air (HEPA) compatibility over the assembly zone.
A: Standard medical machinery procurement should include Installation Qualification (IQ), Operational Qualification (OQ), and support for Performance Qualification (PQ).
