Lingwen39
LW

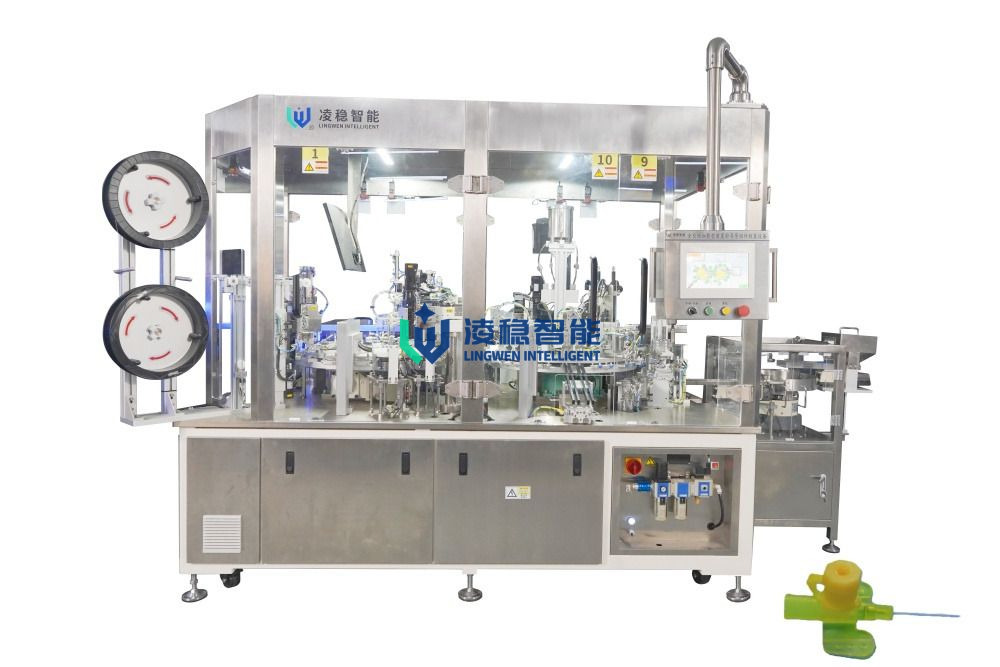

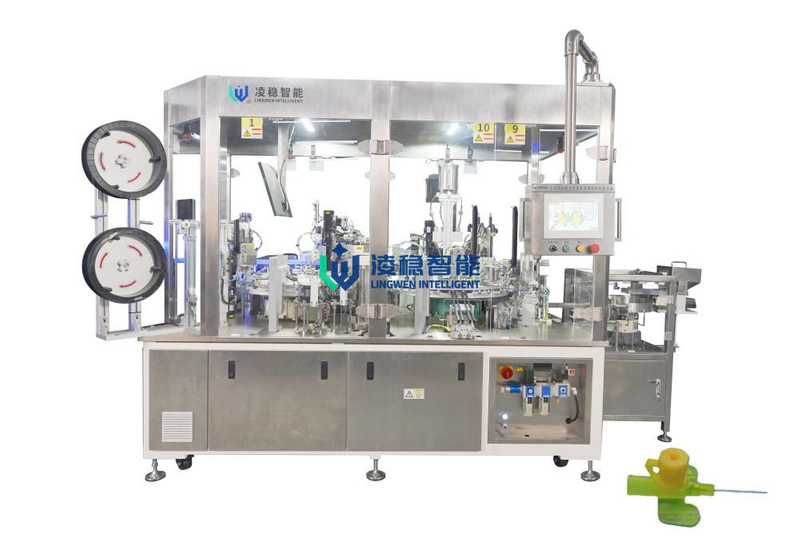

Automatic Assembly Machine for IV Cannula with Wings Injection Port cap

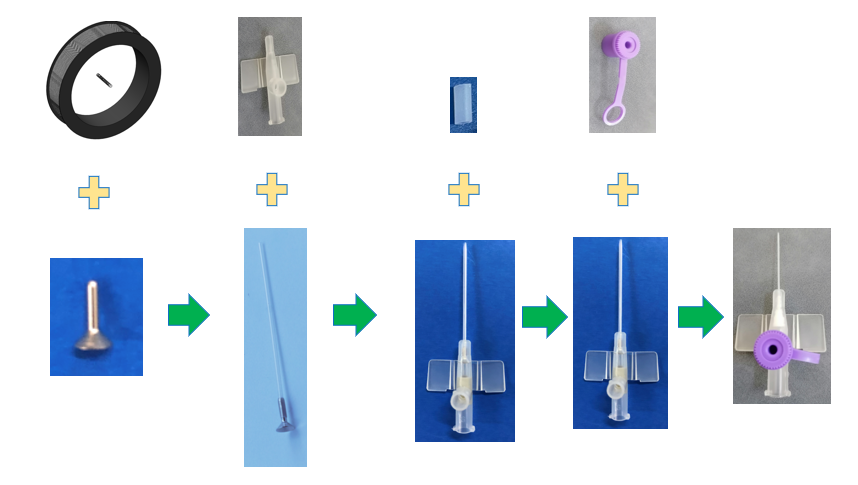

1、Process flow chart:
1) Automatic feeding wing house, bushing, needle hub, catheter, silicon valve, injection port cap
2) With CCD system to control the tube and bushing quality
3) Leackage and blockage for the catheter subassembly
4) Automatic apply silicon oil for catheter tip
5) Unload finished products Automatically
2、Machine Functions:
1 ) Automatic loading components
2 ) Production data can be traced
3 ) Apply silicon oil , Vision inspection
4 ) Monitoring forming shape quality by CCD
5 ）High efficient and capacity 2000~4000PCS/H
3.Details Machine features:
1) Customized Automated Tipping forming Technology for lower penetration forces
2) Minimum Clearance between catheter and needle to avoid peel-back
3) IV catheter production line control and adjust trim length automatically
4) Needle crosses Teflon holder，proportion of damaged needle is controlled within 1‰
5) Extension tube of PU and PVC with coil or fixed length tube
4、lead time
4 months
5、Packaging
Wooden case
6、warranty time
1 year
7、After-sales service
Support 7*24H,training support，Installation, wear parts..
