Lingwen38
LW

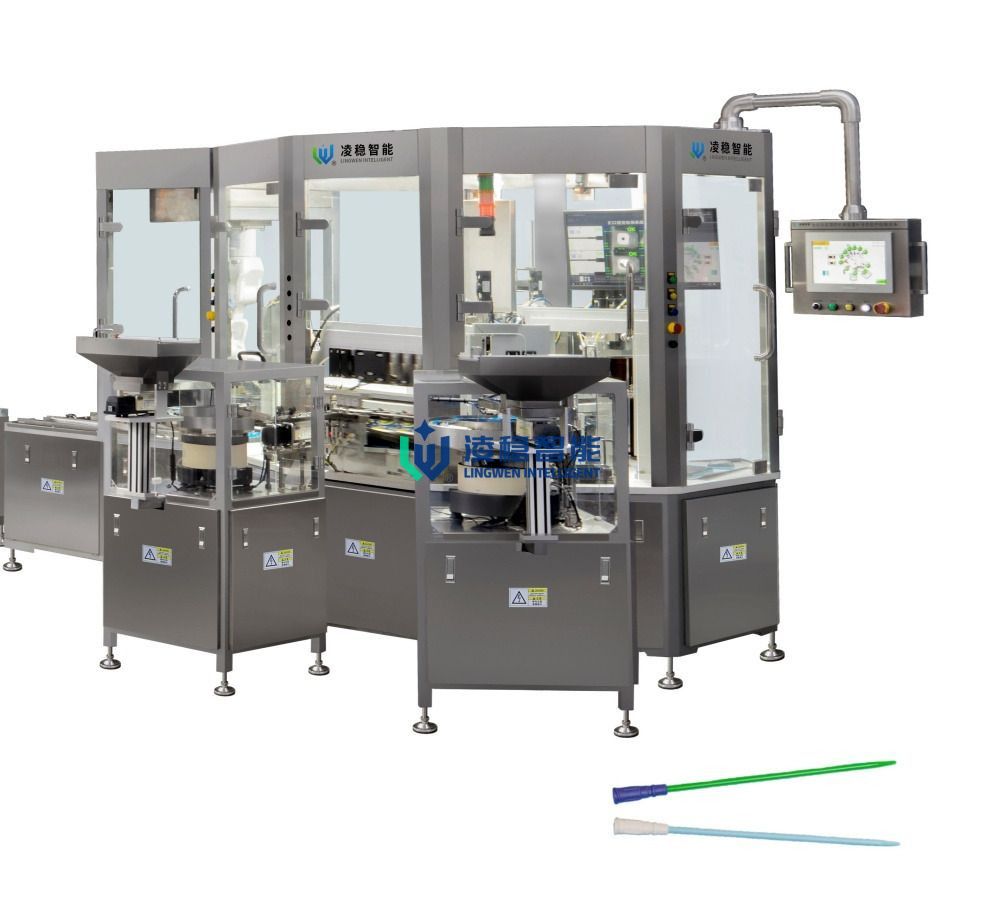

Automatic Machine for Tip Forming

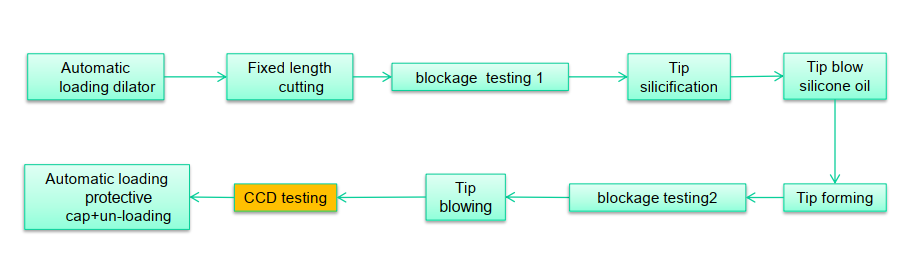

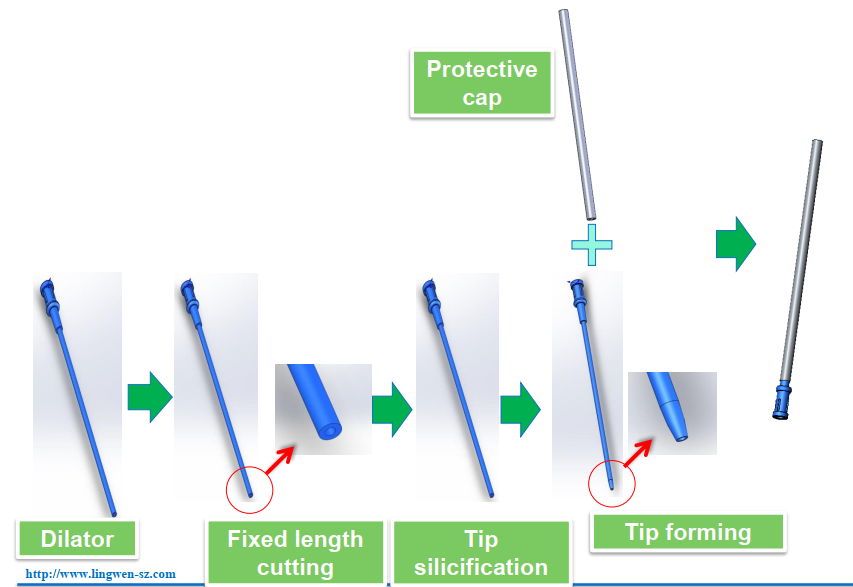

1、Process flow chart:
1) Automatic feeding dilater ,tube material can compatible with PP& PU
2) Automatic cut length & Blockage test
3) Apply silicification tip & clear silicon oil
4) Automatic tip forming
5) Blockage testing
6) Automatic feeding protective cap
7) Unload finished products
2、Machine Functions:
1 ) Automatic loading components
2 ) Production data can be traced
3 ) Apply silicon oil, Vision inspection
4 ) Monitoring forming shape quality by CCD
5 ) High efficient and capacity 600PCS/H
3.Details Machine features:
1) Machine could do tip forming process for different length and gauges tube
2) Tip forming machine is equipped with different gauges tip forming molds
3) Our machine provides a automatic tip forming function
4) We have a CCD testing for checking the quality of tip forming
5) Tip forming machine can feed protective cap automatically
4、lead time
4 months
5、Packaging
Wooden case
6、warranty time
1 year
7、After-sales service
Support 7*24H,training support，Installation, wear parts.
Automatic Machine for Tip Forming
1、Process flow chart:
1) Automatic feeding dilater ,tube material can compatible with PP& PU
2) Automatic cut length & Blockage test
3) Apply silicification tip & clear silicon oil
4) Automatic tip forming
5) Blockage testing
6) Automatic feeding protective cap
7) Unload finished products
2、Machine Functions:
1 ) Automatic loading components
2 ) Production data can be traced
3 ) Apply silicon oil, Vision inspection
4 ) Monitoring forming shape quality by CCD
5 ) High efficient and capacity 600PCS/H
3.Details Machine features:
1) Machine could do tip forming process for different length and gauges tube
2) Tip forming machine is equipped with different gauges tip forming molds
3) Our machine provides a automatic tip forming function
4) We have a CCD testing for checking the quality of tip forming
5) Tip forming machine can feed protective cap automatically
4、lead time
4 months
5、Packaging
Wooden case
6、warranty time
1 year
7、After-sales service
Support 7*24H,training support，Installation, wear parts.
