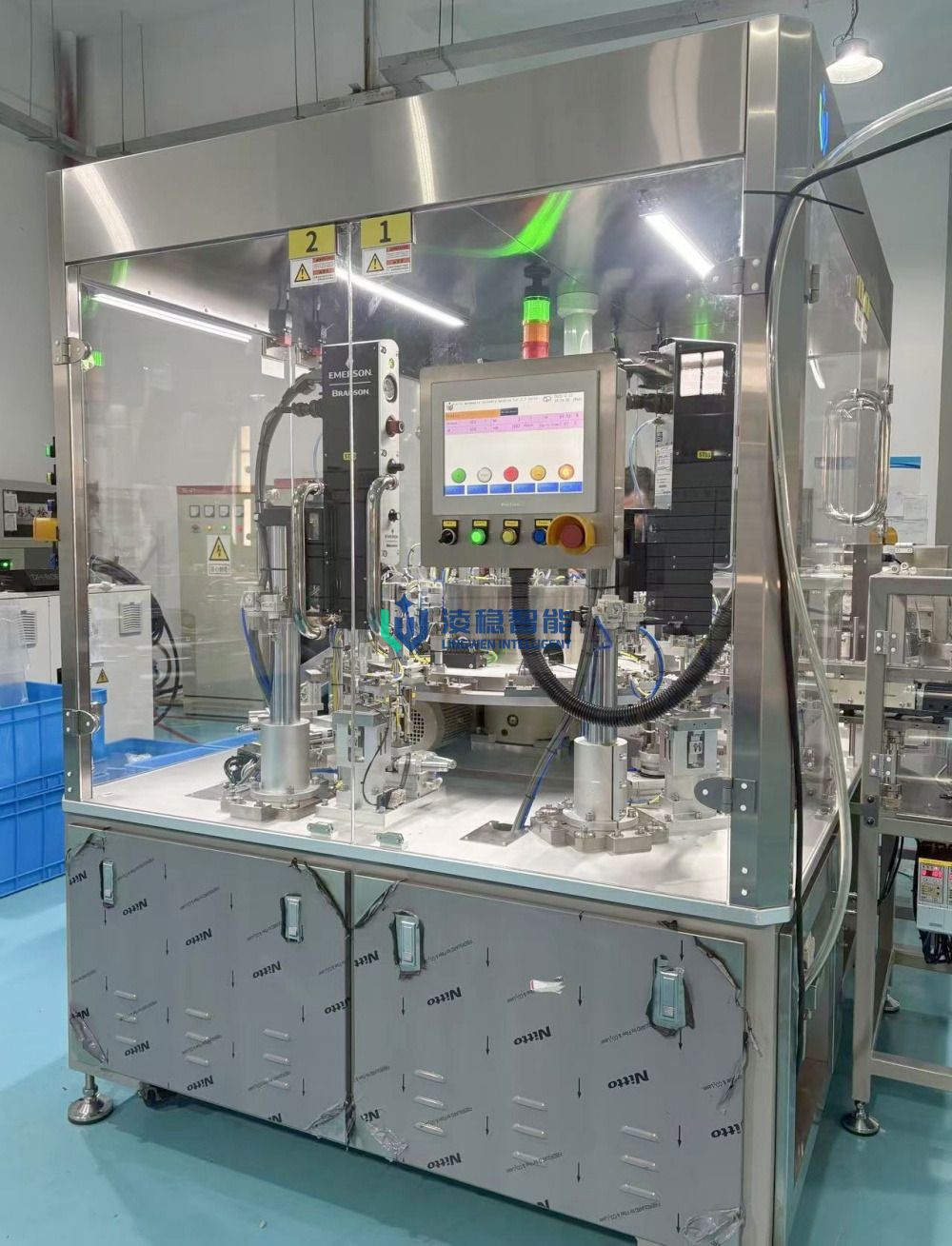

Neutral Needle Free Valve Connector Machine

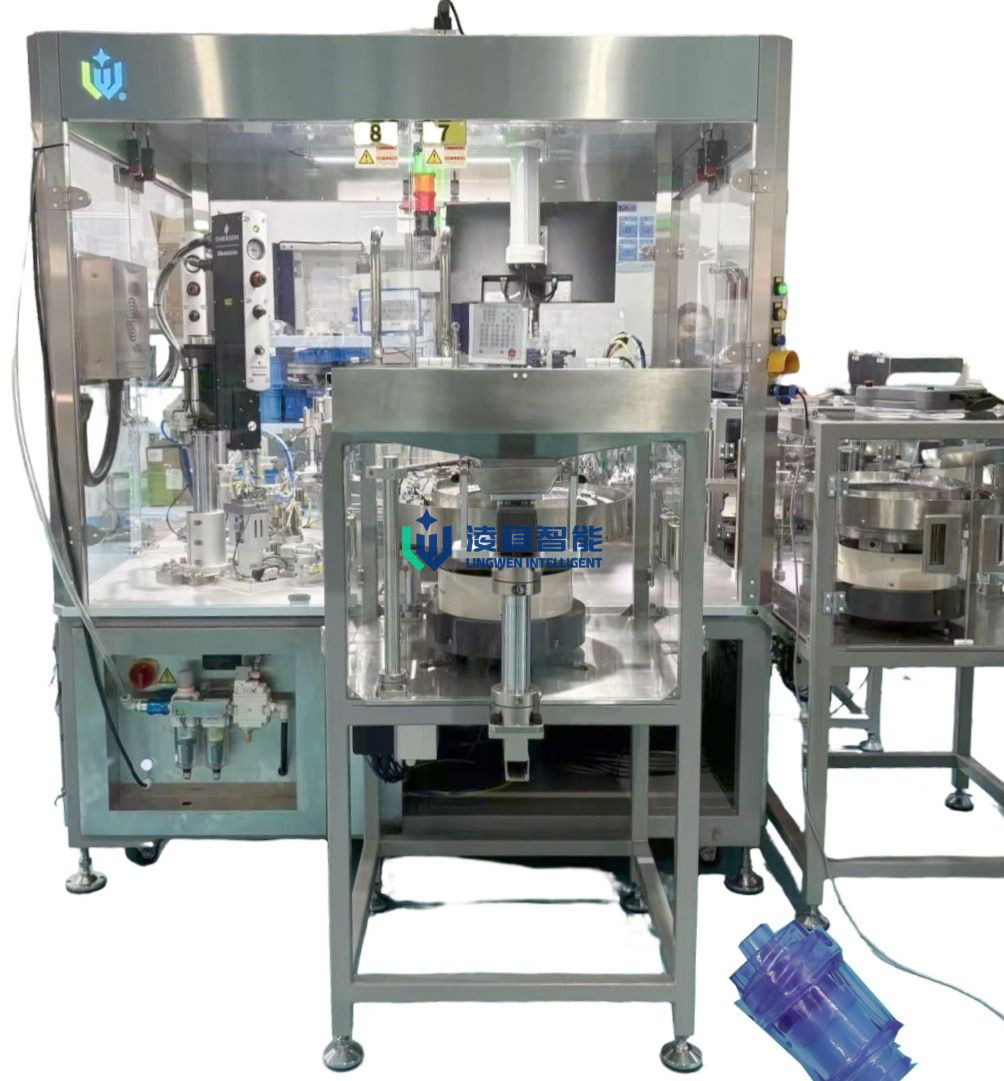

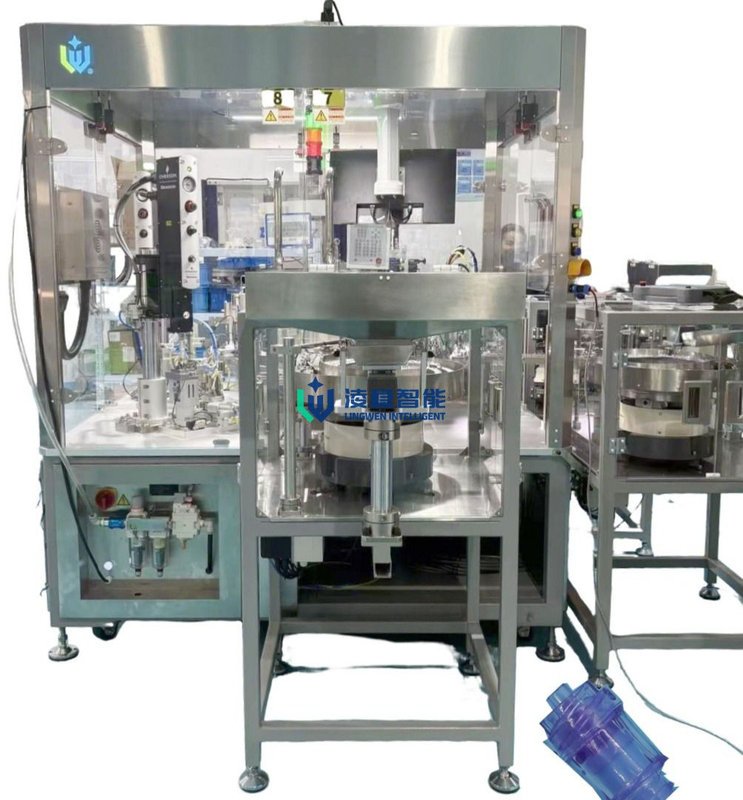

Automatic Neutral Needle Free Valve Connector Machine

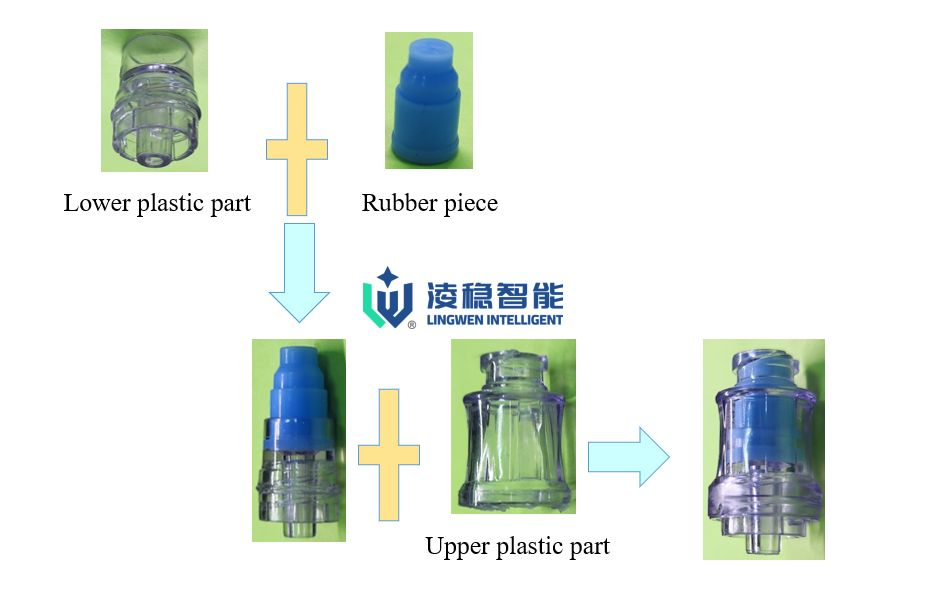

1、Process flow chart:

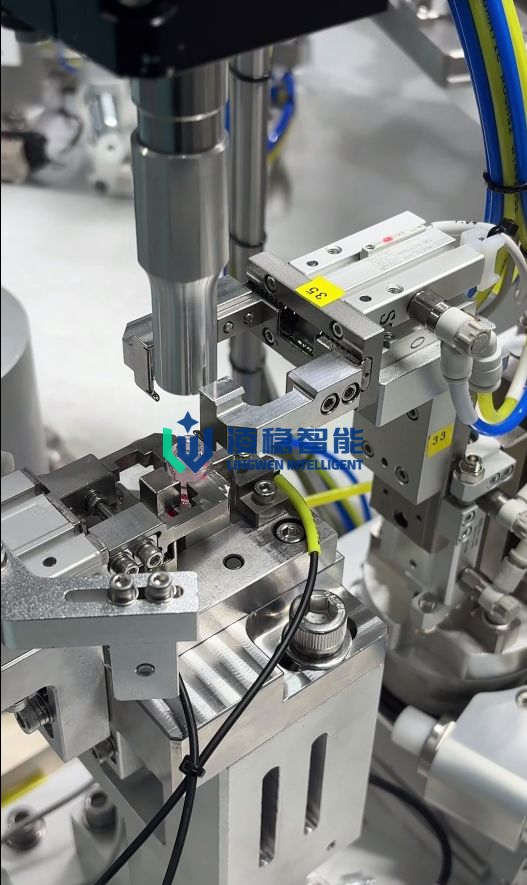

1)  Automatic feeding cover

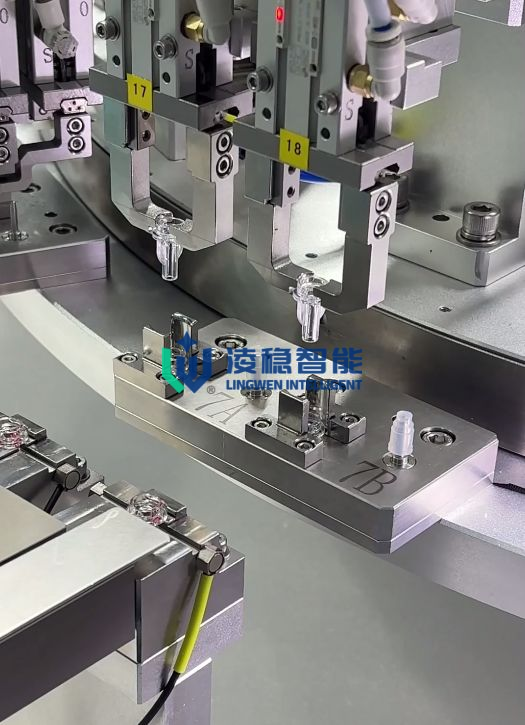

2)  Automatic feeding rubber

3)  Automatic feeding down cover

4)  apply silicon oil

5）Automatic ultrasonic welding

6) activate function

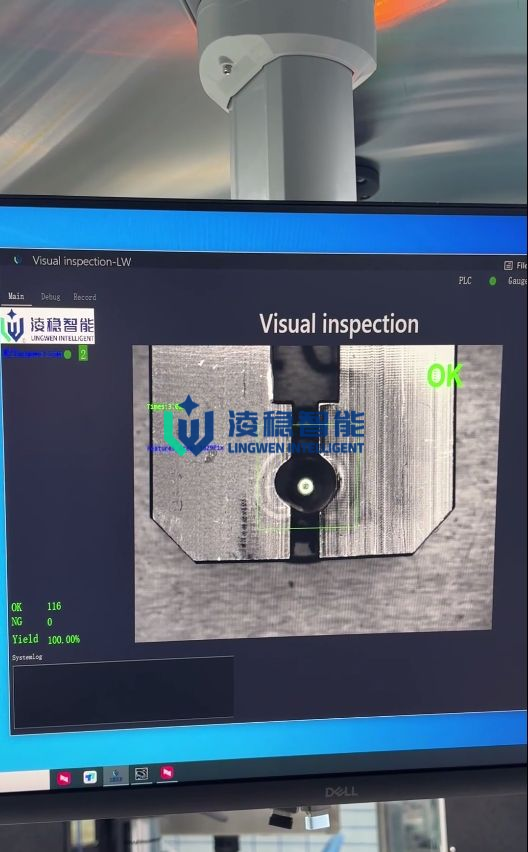

7)  With flow inspection with CCD system

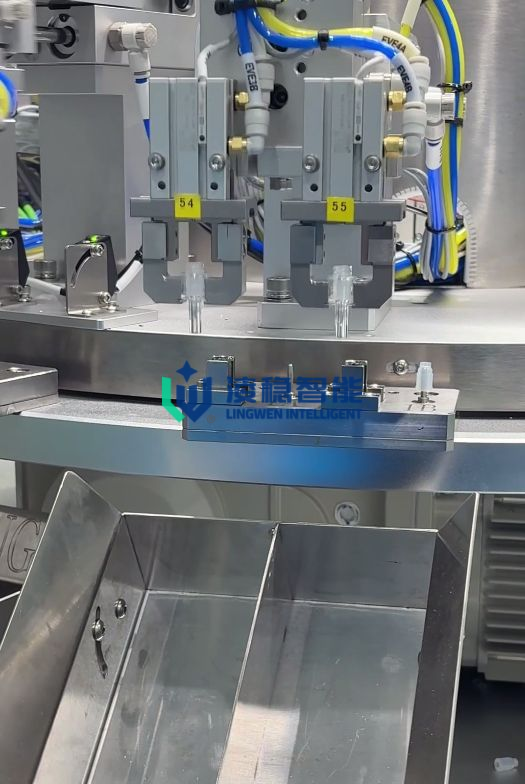

8)  Unloading valid and invalid products

2、Machine Functions:

3、Machines' advantage :

1)  Equipment basic functions, apply silicon oil, CCD monitor

2)  All components could be fed by vibratory feeder controllers

3)  The rotation accuracy of cylinder is ±2°

4)  Occlusion test with flow meter

5)  The equipment is equipped with detection sensors to detect whether the comonents in right place

4、Lead time

      5  months

5、Packaging

      Wooden case

6、Warranty time

       1 year

7、After-sales service

      Support 7*24H,training support，Installation, wear parts.
