Lingwen40
LW

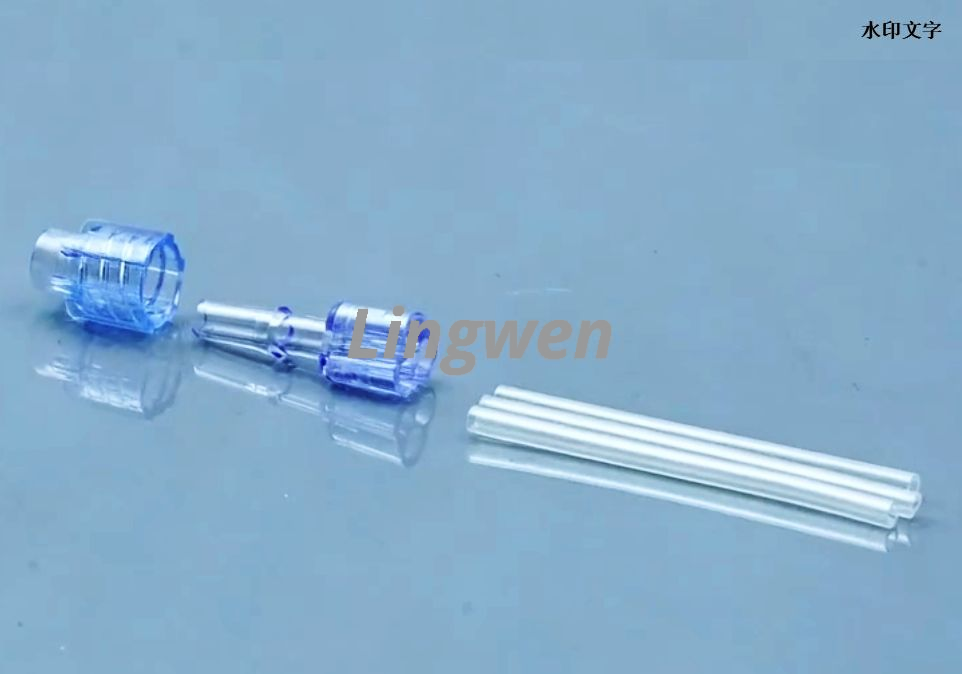

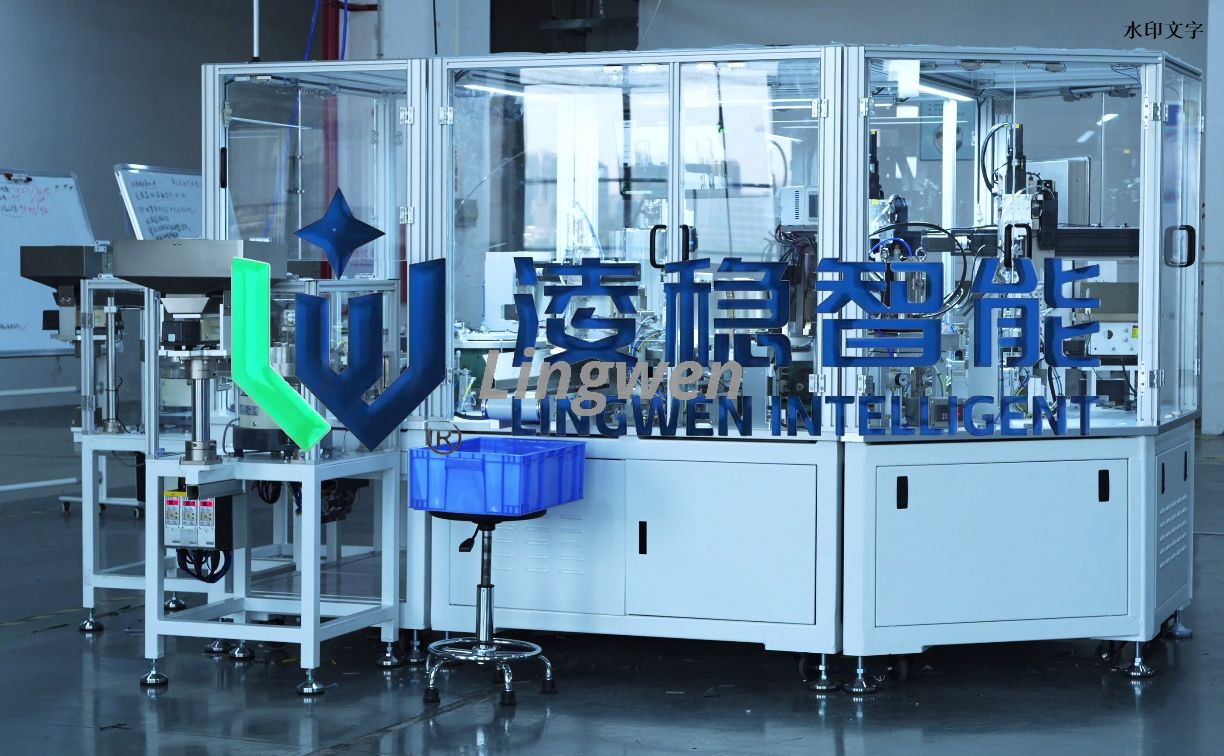

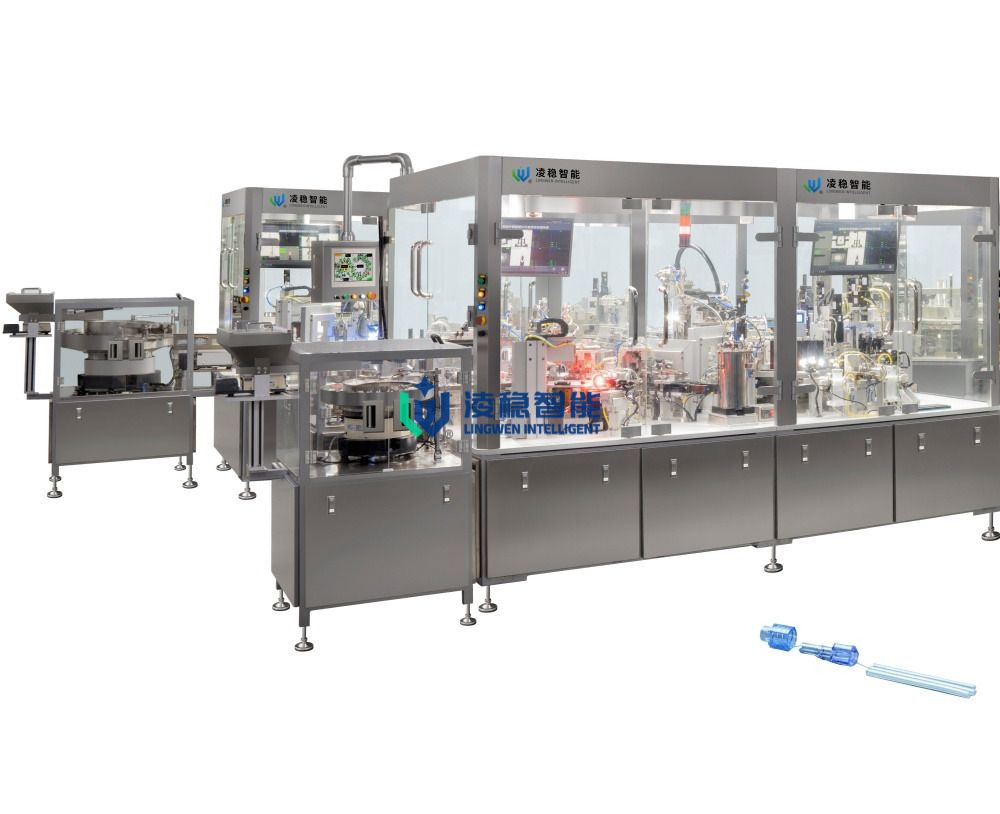

Automatic Needle-free Connector With Threefold Extension Assembly Machine

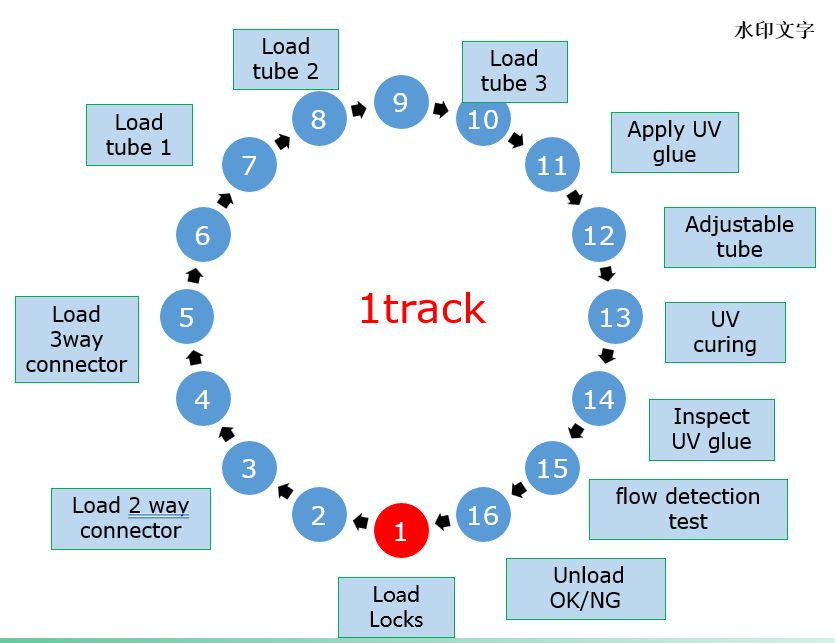

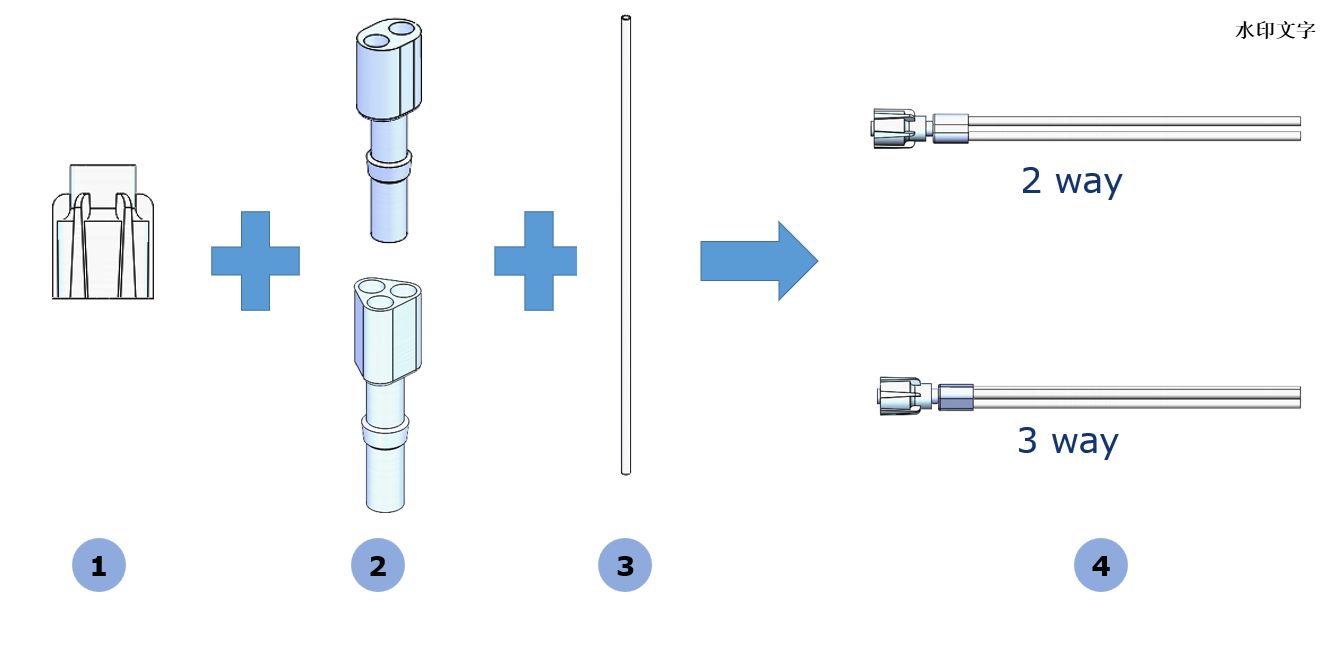

1、Process flow chart:
1) Automatic feeding Luer locks
2) Automatic feeding 2way connectors or 3way connectors components
3) Automatic feeding 2 tubes or 3 tubes
4) Apply UV glue
5）Curing
6) With flow inspection with CCD system
7) Unloading valid and invalid products
2、Machine Functions:
4) With precious inspection device
5) Rejection rate ≤2%
6 ) Utilization rate ≥95%
3、Machines' advantage :
1) Equipment basic functions, apply uv glue , curing , monitor and deal with inverse components,
2) With device to remote torque control and monitoring of production
3) All components could be fed by vibratory feeder controllers
4) The rotation accuracy of cylinder is ±2°
5) The equipment is equipped with detection sensors to detect whether the transfer is ok or not.
4、Lead time
4 months
5、Packaging
Wooden case
6、Warranty time
1 year
7、After-sales service
Support 7*24H,training support，Installation, wear parts.
