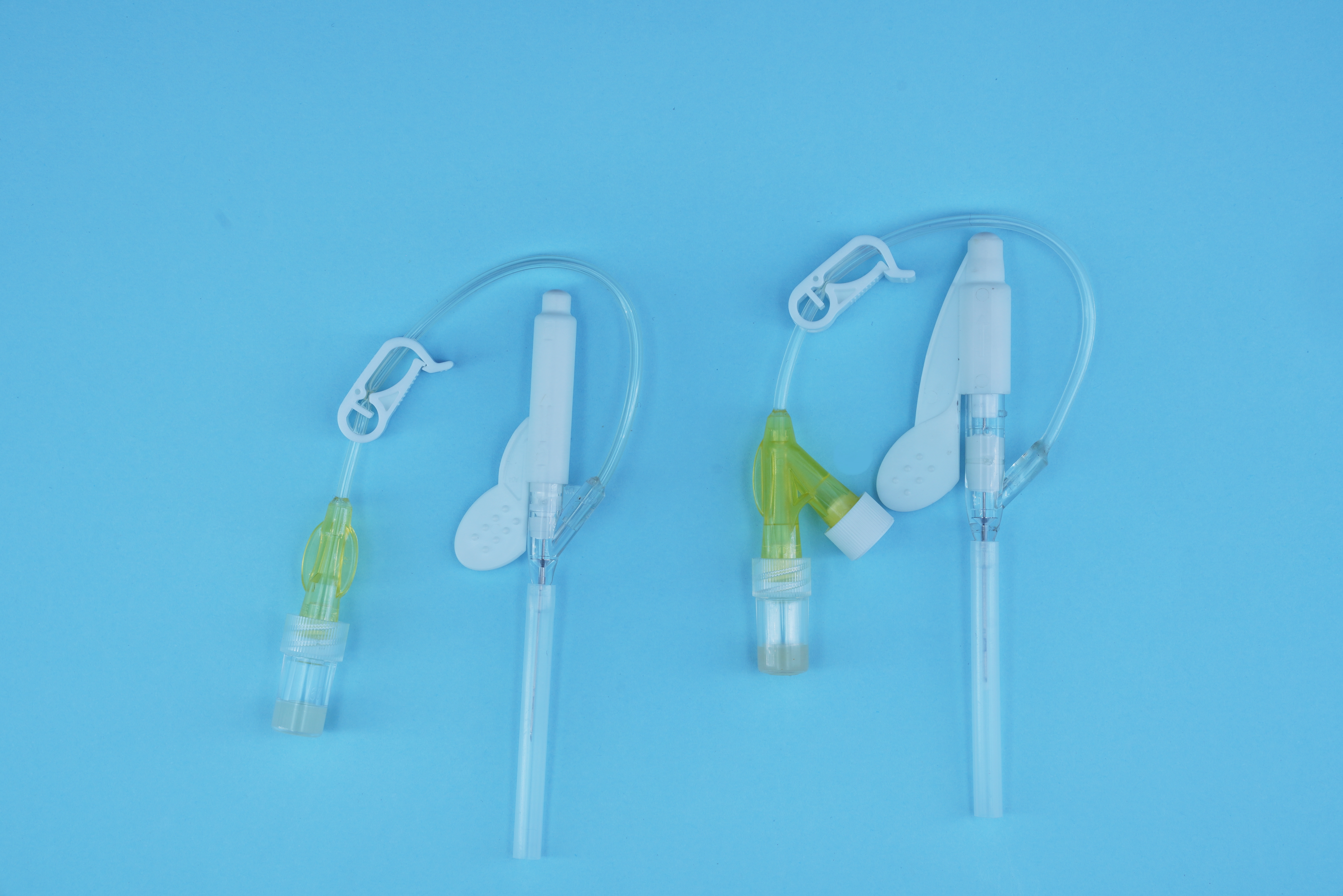

Y Type Safety IV Cannula Assembly machine

Y Type Safety IV Cannula Assembly Assembling

1. Machinery Capacity 2000pcs/h
2. Weight 2000 KG
3. Dimension(L*W*H) 6400*2200*2100
4. Voltage 380v/220v
5. Power 26kw
6. capacity 2000Pcs/H
7. rejection rate ≤3%
8. Utilization rate ≥95%
9. Size ：18G/20G/22G/24G/26G
10. Electrical brand Siemens and Kenyence

Availability:

Quantity:



Inquire Add to Basket

Model:
LW03
Brand:
Lingwen

Product Description

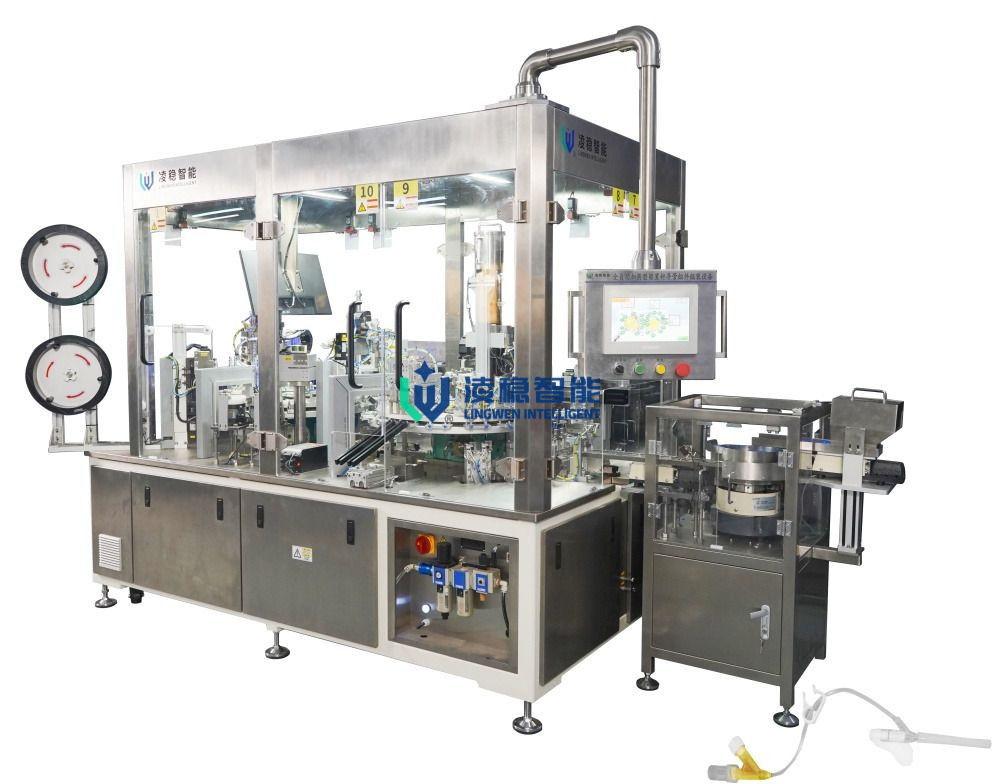

Automatic Y Type Safety IV Cannula Assembly Machine

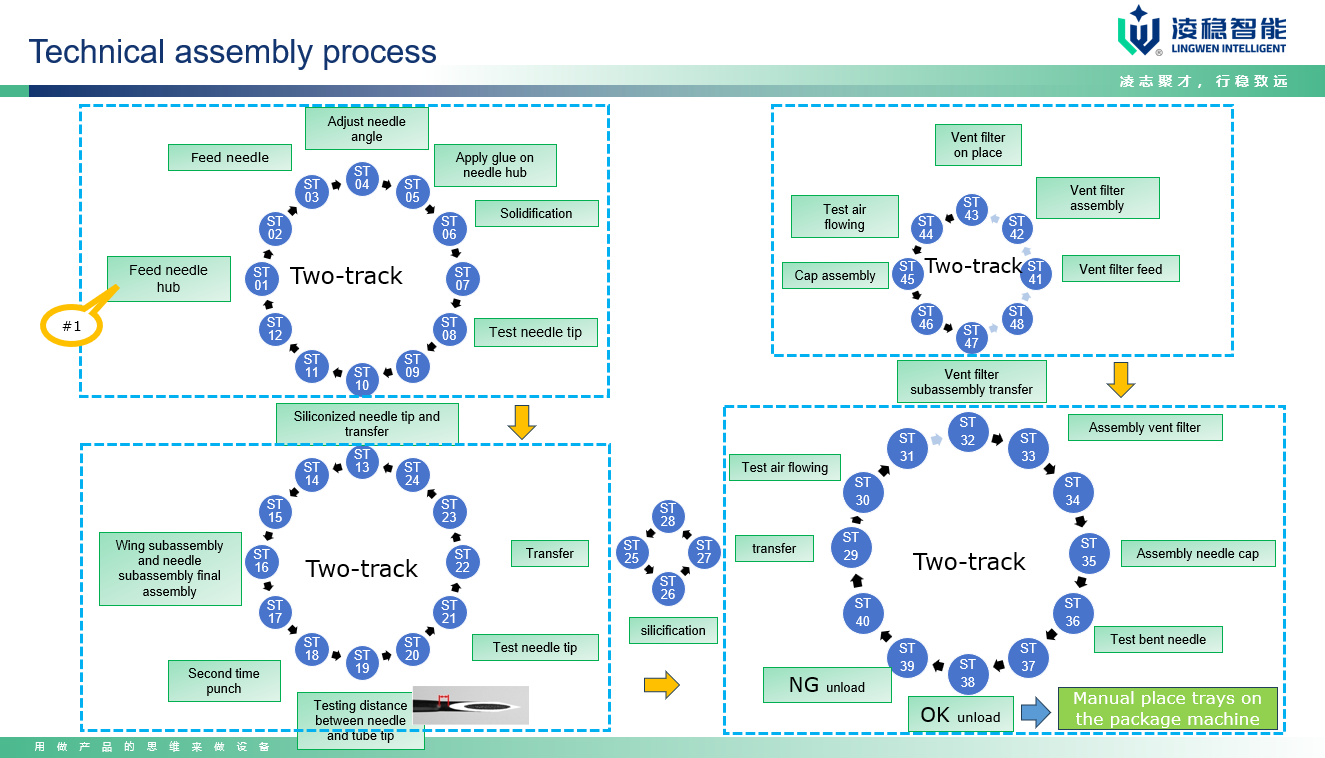

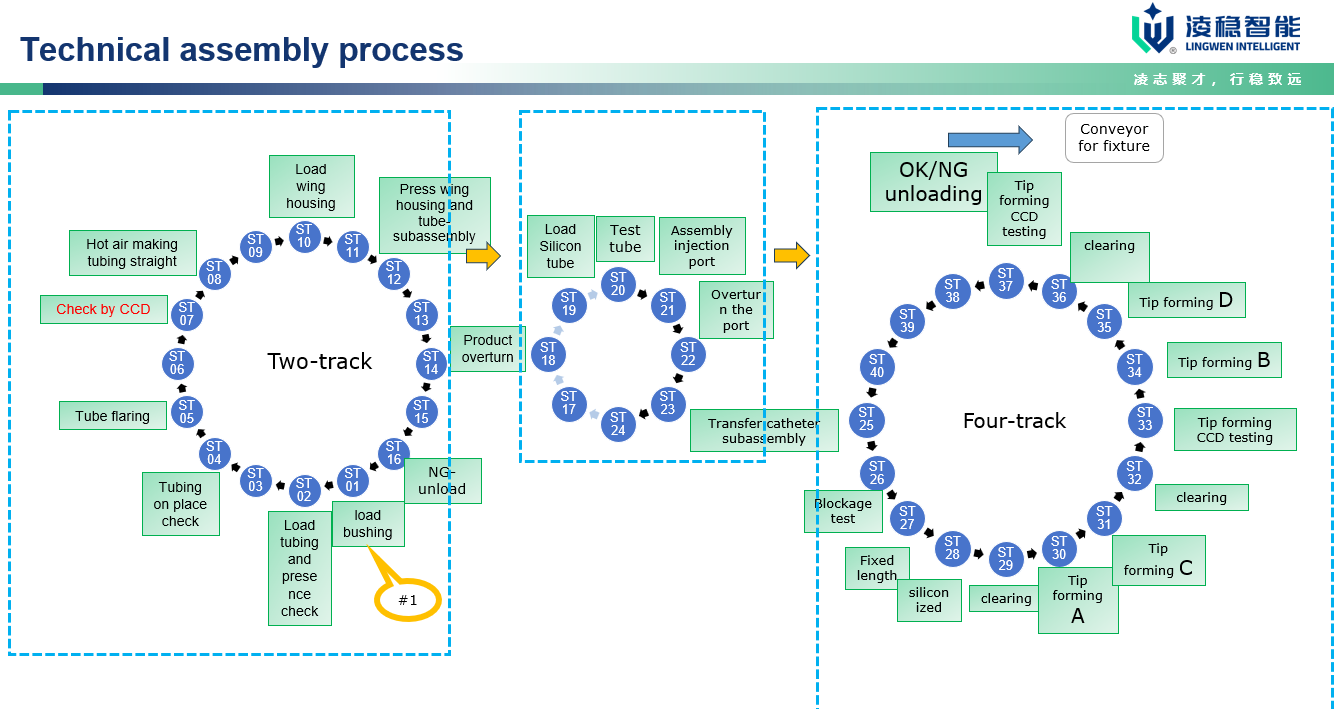

1、Process flow chart:

1) Wing body assembly machine

2) Tip forming machine

3) Needle subassembly machine

4) Final assembly machine

2、Machine Functions:

1) Capacity: 2000pcs/h

2) Operating personnel:1 worker
3) Air compressor:0.6~0.8 MPa

4) With CCD testing device by Basler cammera to make sure the a value and Robot to automatically unloading components to our transfer trays

5) Rejection rate ≤2%
6 ) Utilization rate ≥95%
7 ) Compatible for 18G/20G/22G/24G/26G

8) Automated Final Assembling Machine (Safety IVC)

9 ) Fully feed all the parts by vibratory feeder controller，needle, septum, cannula,needle hub,catheter hub,protective cap,safety connector,safety clamp.

10) Important process: needle tip quality is tested by visual inspection.

needle burr,needle tip damage,needle orientation,needle length and so on

other essential functions are equipped with machine,like apply isopropanol，leakage，blockage,apply UV adhesive..) .

11 ）different capacities are custom-made by clients' requirements

12 ）All stations and productiondata could be monitor by human screen

3、Lead time

4 months

4、Packaging

Wooden case

5、Warranty time

1 year

6、After-sales service
