Wing Type IV Cannula Assembly Machine

         24G Wing type IV Cannula assembly machine

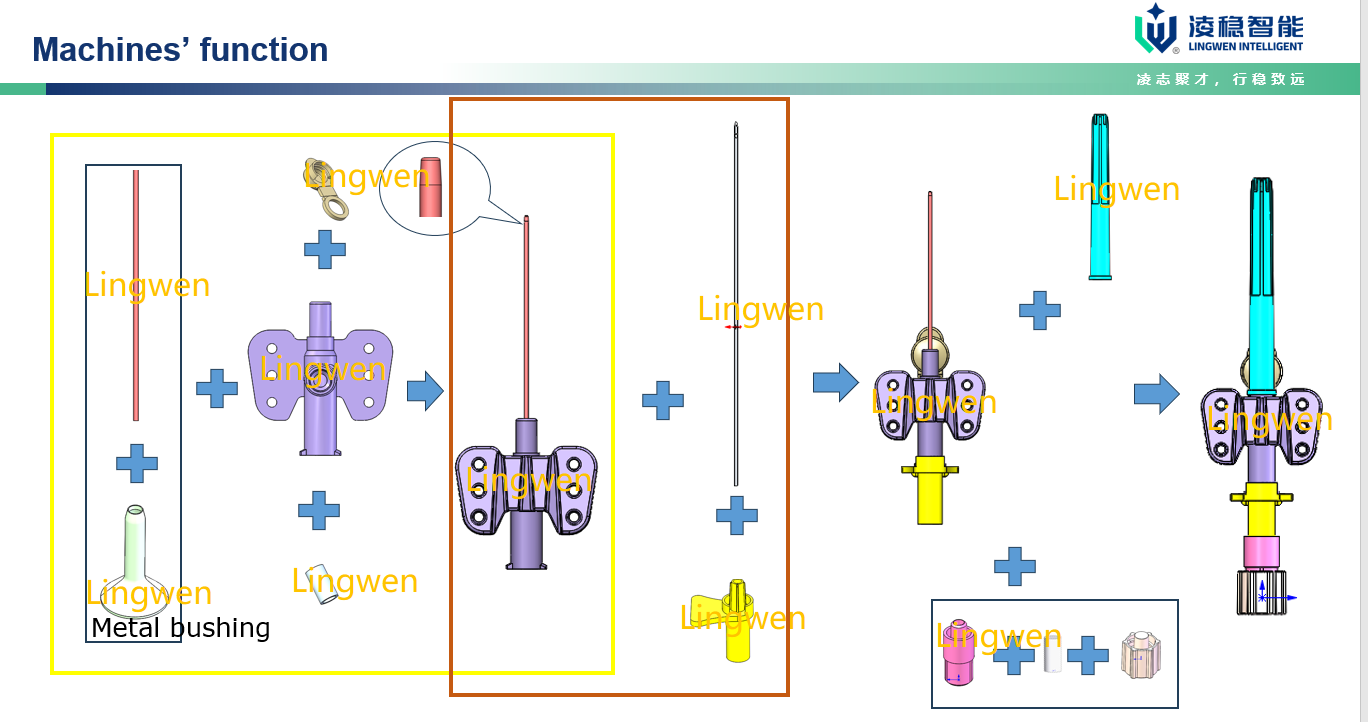

1、Process flow chart

• IV catheter wing housing assembly

• Tip forming assembly

• needle Assembly

• Finaly Assembly Machine

• Filter and flashback assembly

2、Machine Functions

1). Suitable for IV cannula with wing with injection port from 18G ~24G.

2). Automated tip forming technology for lower penetration forces.

3). Minimum clearance between catheter and needle to avoid peel-back.

4). IV catheter production line control and adjust trim length automatically

5). Equipment monitoring needle burr, angle, orientation, needle perpendicularity ,needle value by CCD

6). Needle crosses Teflon holder，proportion of damaged needle is controlled within 1‰

7). Tube of PU and FEP with coil or fixed length tube

8). Device main functions are assemble all components of IV cannula: catheter , holder, needle, needle hub, wing house, injection port cap, stopper, filter , flashback chamber , protective cap, apply glue UV adhesive ,apply silicone oil, curing, test drawing force .

3、lead time

   4  months

4、Packaging

    Wooden case

5、warranty time

      1 year

6、After-sales service

      support 7*24H,training support，Installation, wear parts., training for clients..

Automatic assembly machine for pen type IV cannula is used for Keeping assembling precisely,

The machine is equipped with transfer belts between 3 individual machine.
