Lingwen32
LW

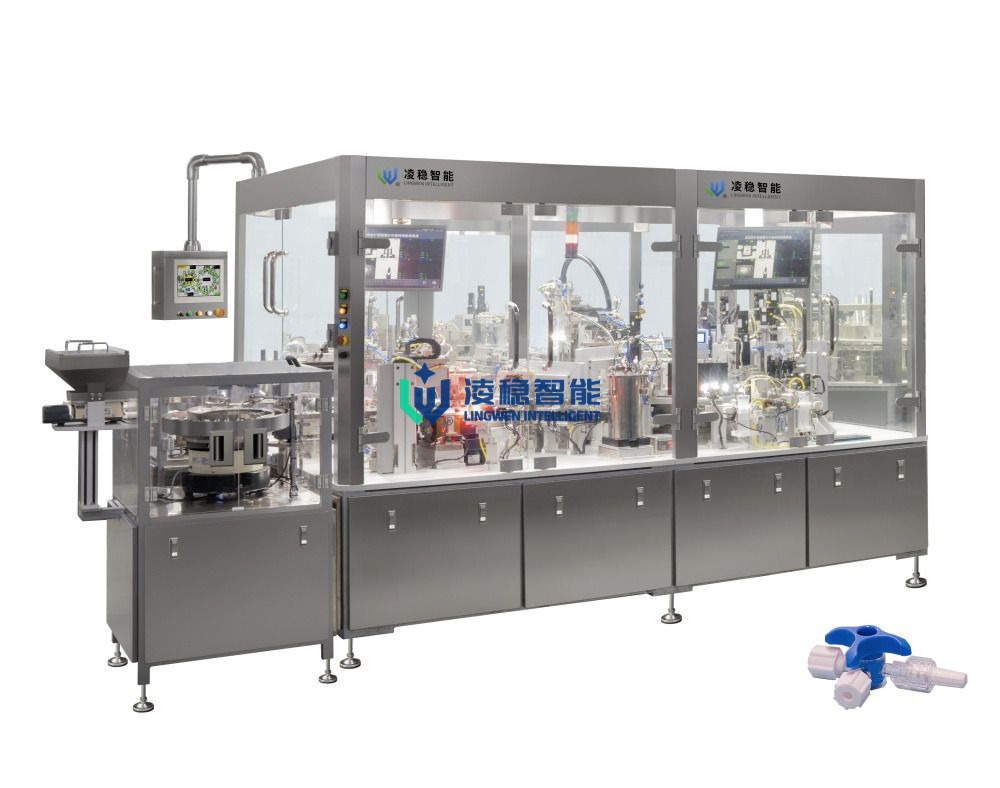

Automatic Assembly Machine for Three Way StopCock

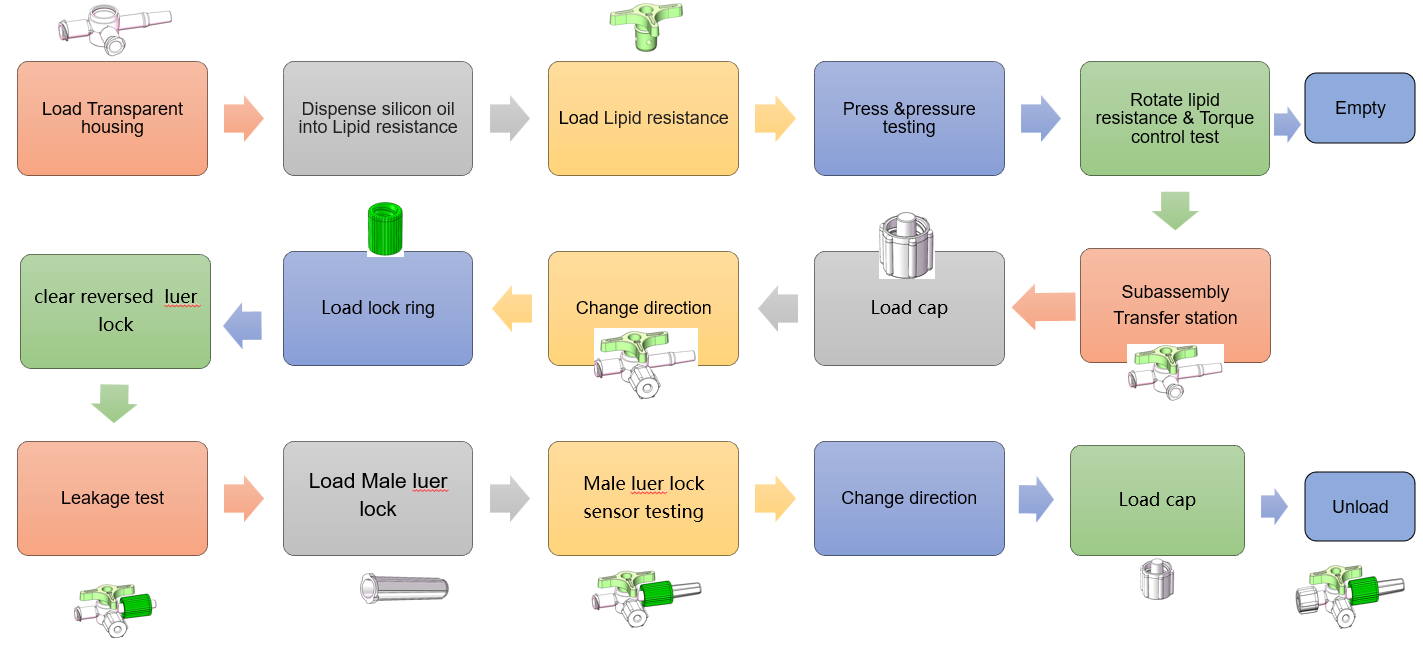

1、Process flow chart:
1) Assembly subassembly : lipid resistance, transparent housing, female luer lock, lock ring, male luer lock
2) Automatic feeding each components
3) With inspection for the leackage testing
4) Unloading valid and invalid products
2、Machine Functions:
4) With precious inspection device
5) Rejection rate ≤2%
6 ) Utilization rate ≥95%
3、Machines' advantage :
1) Equipment basic functions, apply silicone oil, monitor and deal with inverse components,
2) With device to remote torque control and monitoring of production
3) All components could be fed by vibratory feeder controllers
4) The rotation accuracy of cylinder is ±2°
5) The equipment is equipped with detection sensors to detect whether the transfer is ok or not.
4、Lead time
4 months
5、Packaging
Wooden case
6、Warranty time
1 year
7、After-sales service
Support 7*24H,training support，Installation, wear parts.
Automatic Assembly Machine for Three Way StopCock
1、Process flow chart:
1) Assembly subassembly : lipid resistance, transparent housing, female luer lock, lock ring, male luer lock
2) Automatic feeding each components
3) With inspection for the leackage testing
4) Unloading valid and invalid products
2、Machine Functions:
4) With precious inspection device
5) Rejection rate ≤2%
6 ) Utilization rate ≥95%
3、Machines' advantage :
1) Equipment basic functions, apply silicone oil, monitor and deal with inverse components,
2) With device to remote torque control and monitoring of production
3) All components could be fed by vibratory feeder controllers
4) The rotation accuracy of cylinder is ±2°
5) The equipment is equipped with detection sensors to detect whether the transfer is ok or not.
4、Lead time
4 months
5、Packaging
Wooden case
6、Warranty time
1 year
7、After-sales service
Support 7*24H,training support，Installation, wear parts.
