Semi Automatic IV Catheter Assembly Machine

     Semi Automatic IV Catheter Assembly Machine

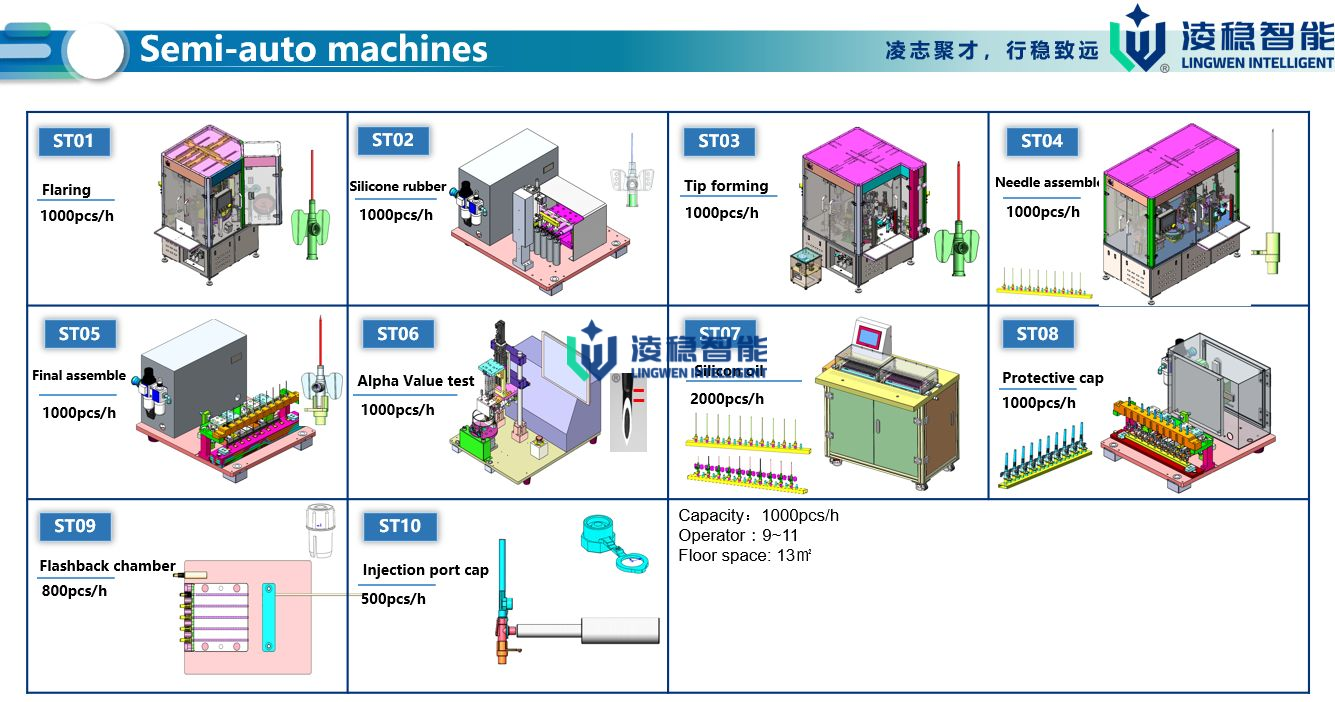

1、Process flow chart

     Semi automatic machine for Catheter and tube assembling

     Semi automatic machine for catheter hub , tube and bushing subassembly

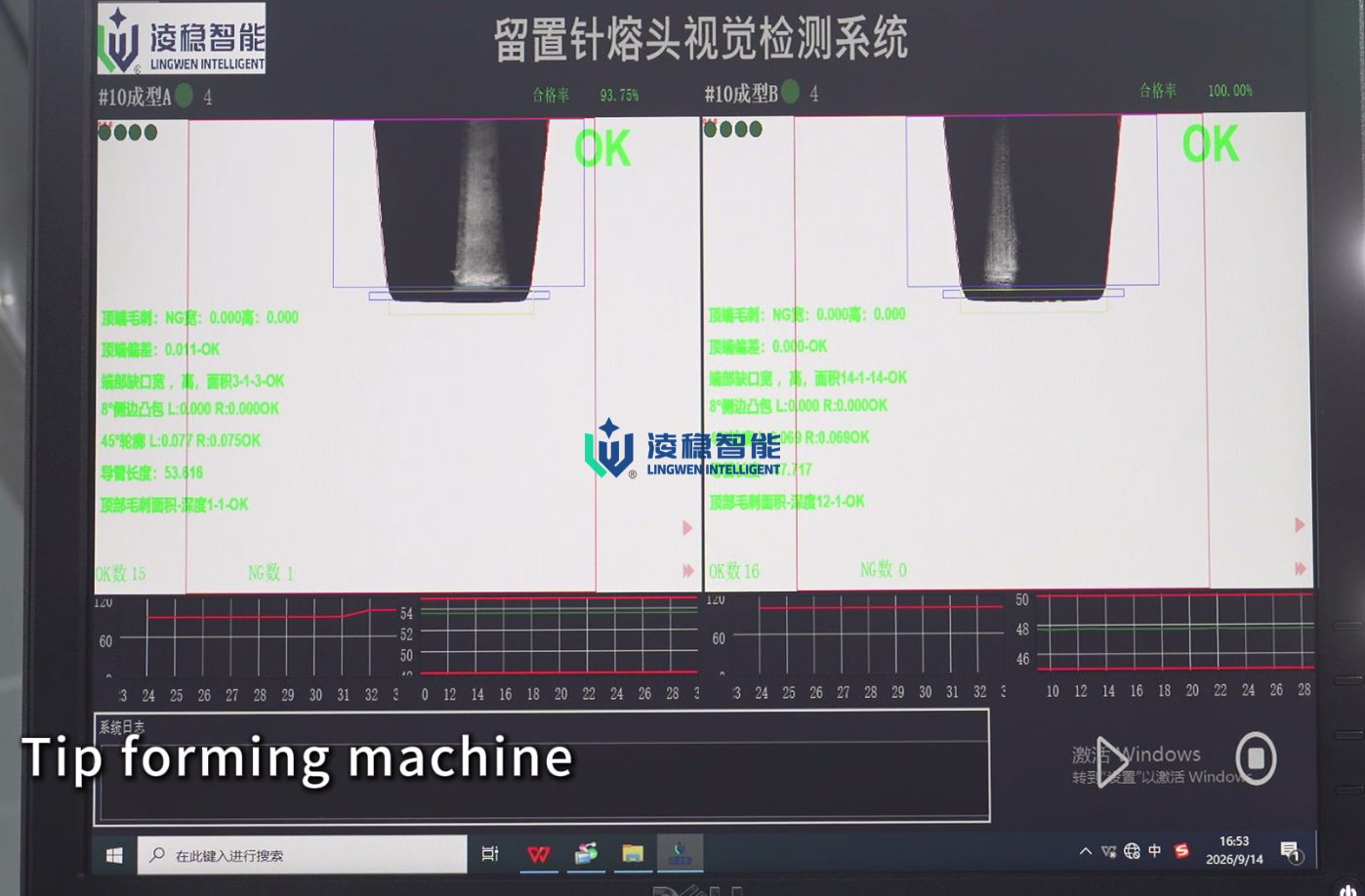

     Semi automatic Tip forming machine

     Semi automatic needle assembly machine

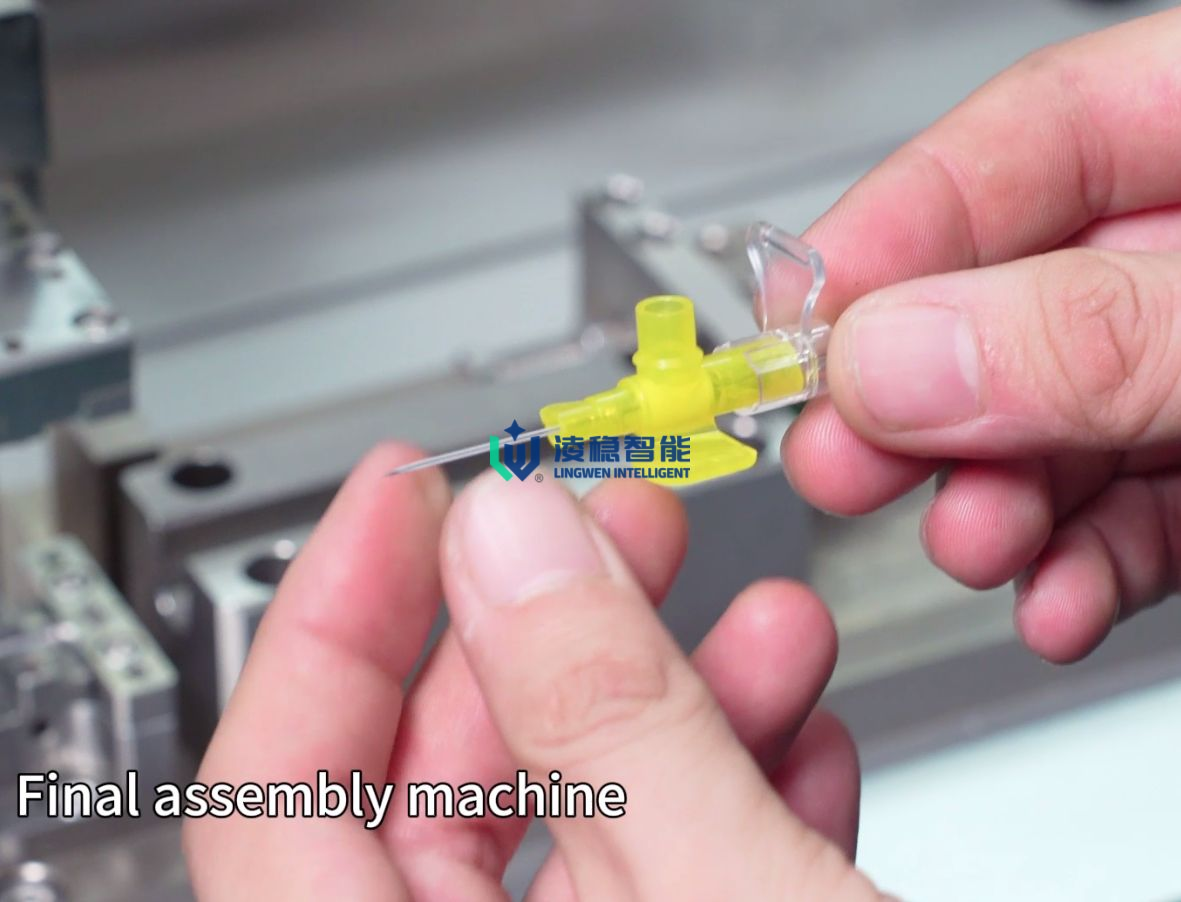

     Semi automatic final assembly machine

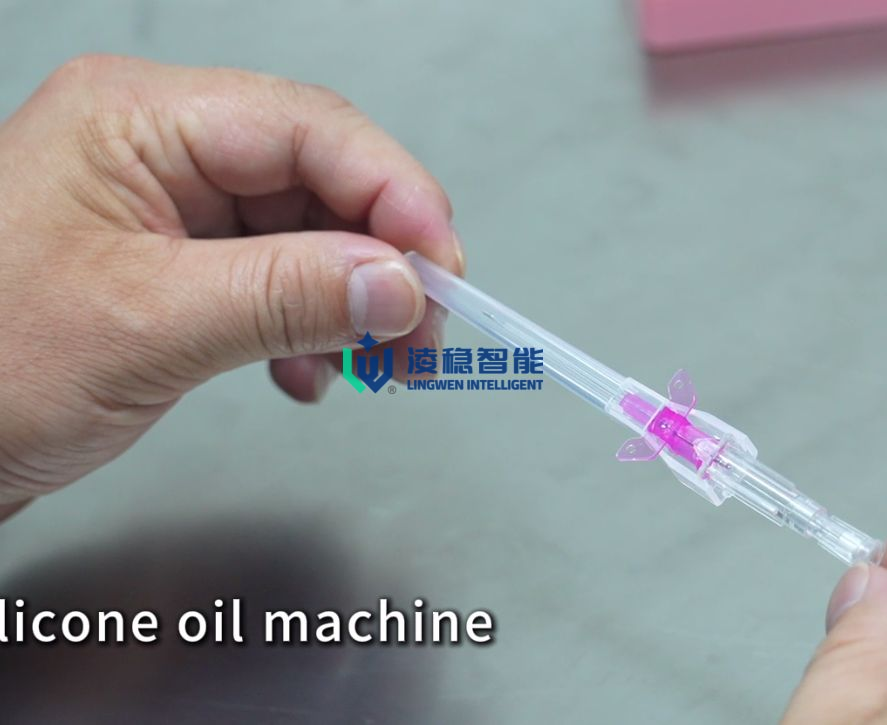

     Semi automatic silicon oil machine

     Semi automatic check Alpha value

     Manual machine for protective cap

     Manual machine for injection port cap

2、Machines ' Functions :

1)  Semi-automatic automatic assembly machine is specially designed for assembling IV cannula (intravenous  catheter) medical consumables.

2)  It completes multiple assembly procedures automatically with manual feeding.
3) The equipment realizes stable assembly of cannula hub, needle, catheter, stopper and other components

4)  It features simple operation, low failure rate and high cost performance.

5) It is widely used in small & medium medical device factories for IV cannula production.

3. Advanate of the machine :

1)  Equipment monitoring needle burr, angle, orientation, needle perpendicularity ,needle value by CCD

2)  Needle crosses Teflon holder，proportion of damaged needle is controlled within 1‰

3)  FEP and TPU raw material are compatible

4)  Extension tube of PU and PVC with coil or fixed length tube

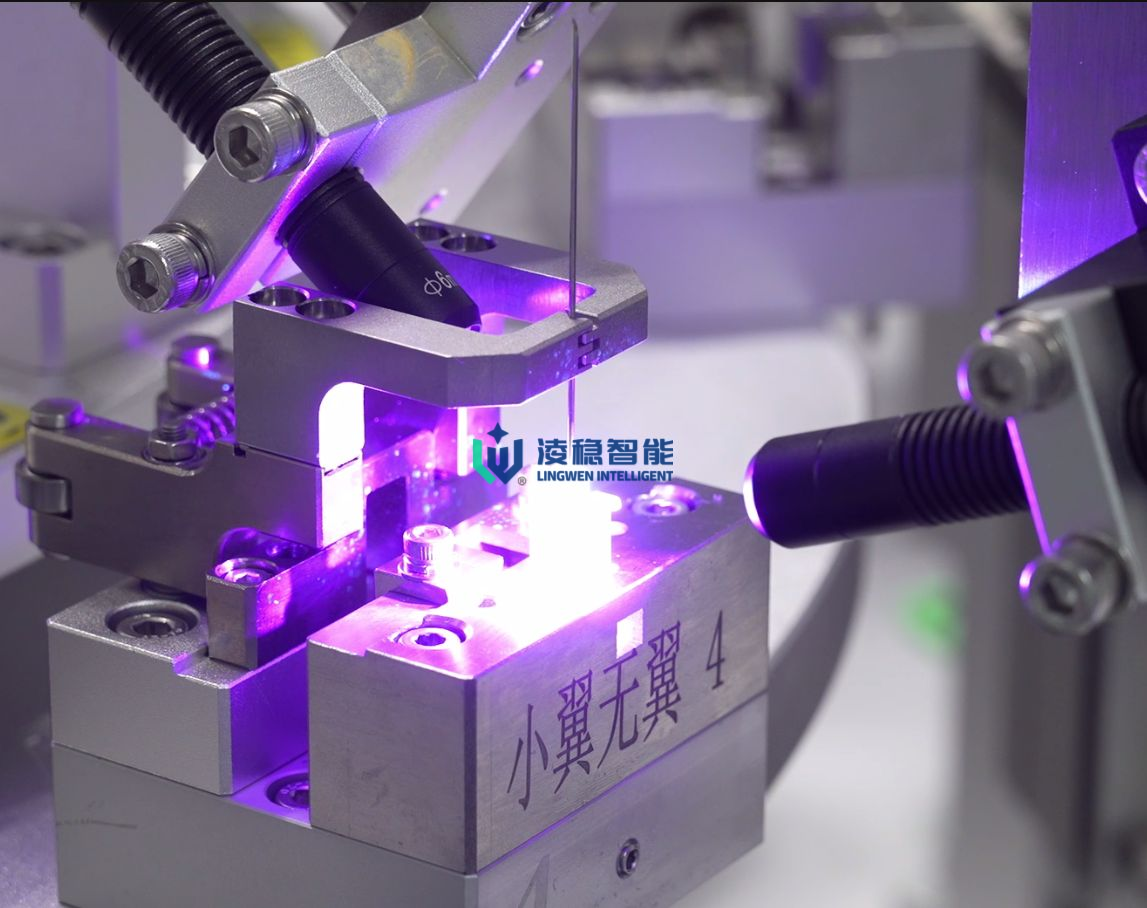

5)  Device main functions are assemble all components of IV cannula :Teflon catheter , Teflon holder, needle, needle hub, wing house, injection port cap, stopper, filter , , flashback chamber ,protective cap, apply glue UV adhesive , apply silicone oil, solidification, test drawing force .

6) Diversified production line pipeline type, circular circulation line, rotating table type to meet the needs of different customers.

7) Guling , solidification

8) CCD、camera testing and  checking

4、lead time

    6  months

5、Packaging

     Wooden case

6、warranty time

     1 year

7、After-sales service

support 7*24H,training support，Installation, wear parts...

Pen- type IV cannulas are for the most part used in the clinical business for various purposes，Pen- type IV cannula machines play an essential effect in streamlining the creation cycle and ensure precision. Assembly machine ensure that each IV cannula is made with consistent quality. the machine keeps a sterile environment of production.
