Lingwen41
LINGWEN

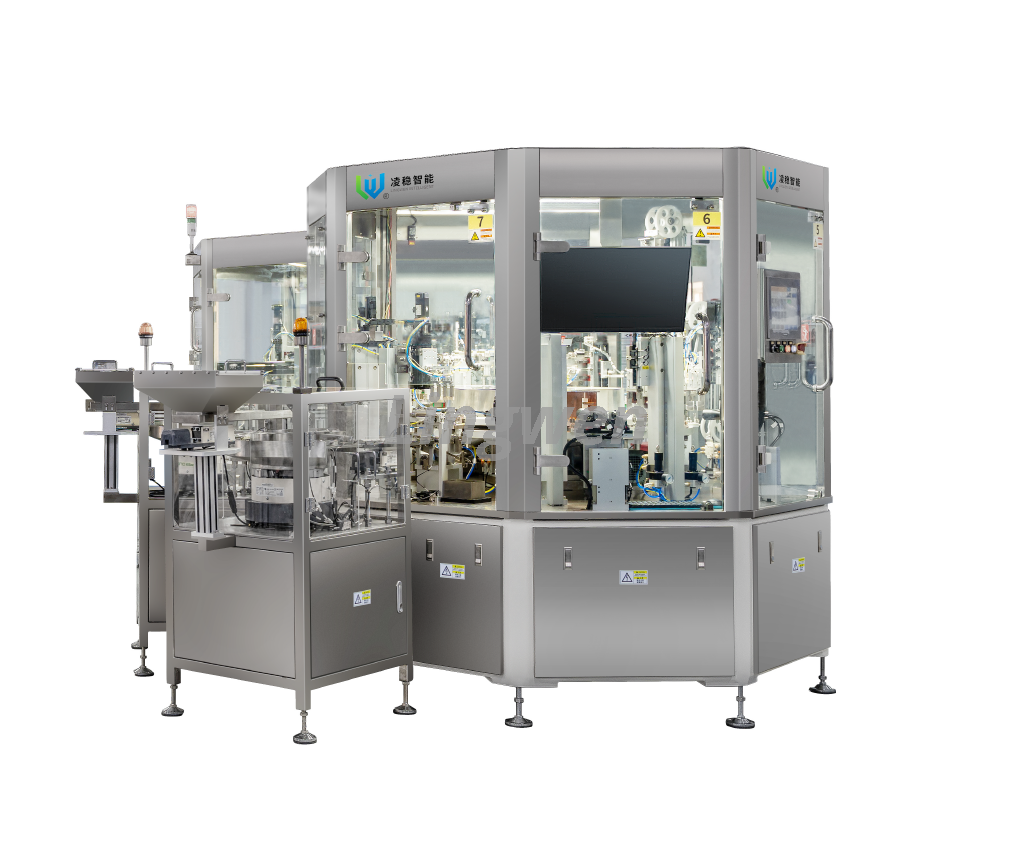

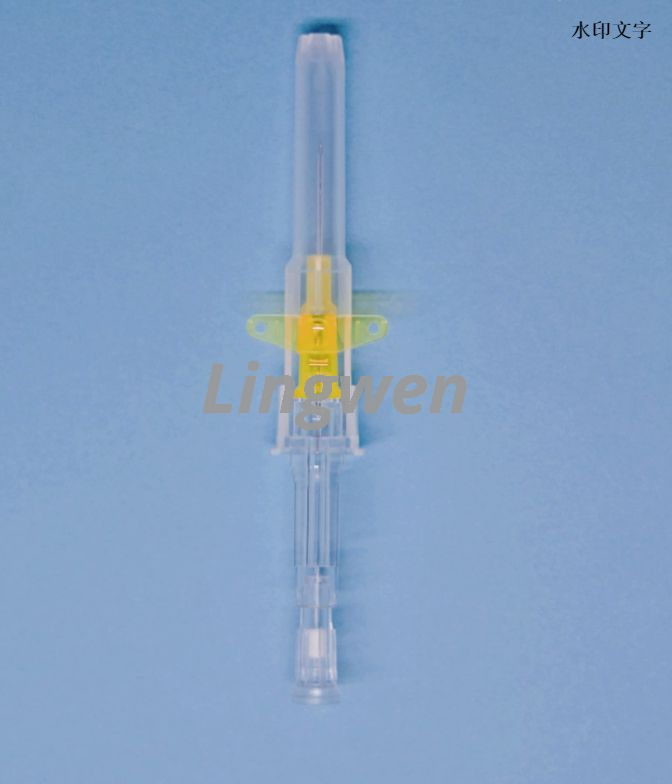

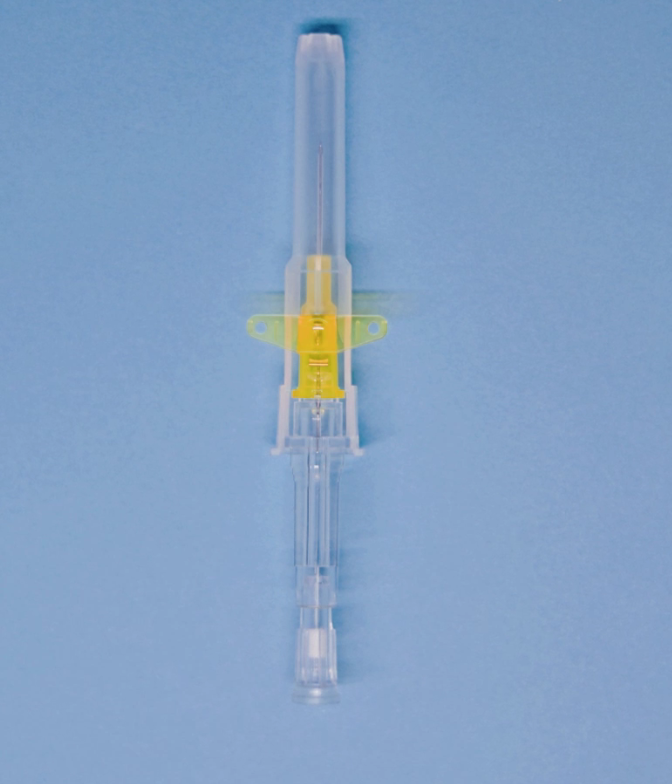

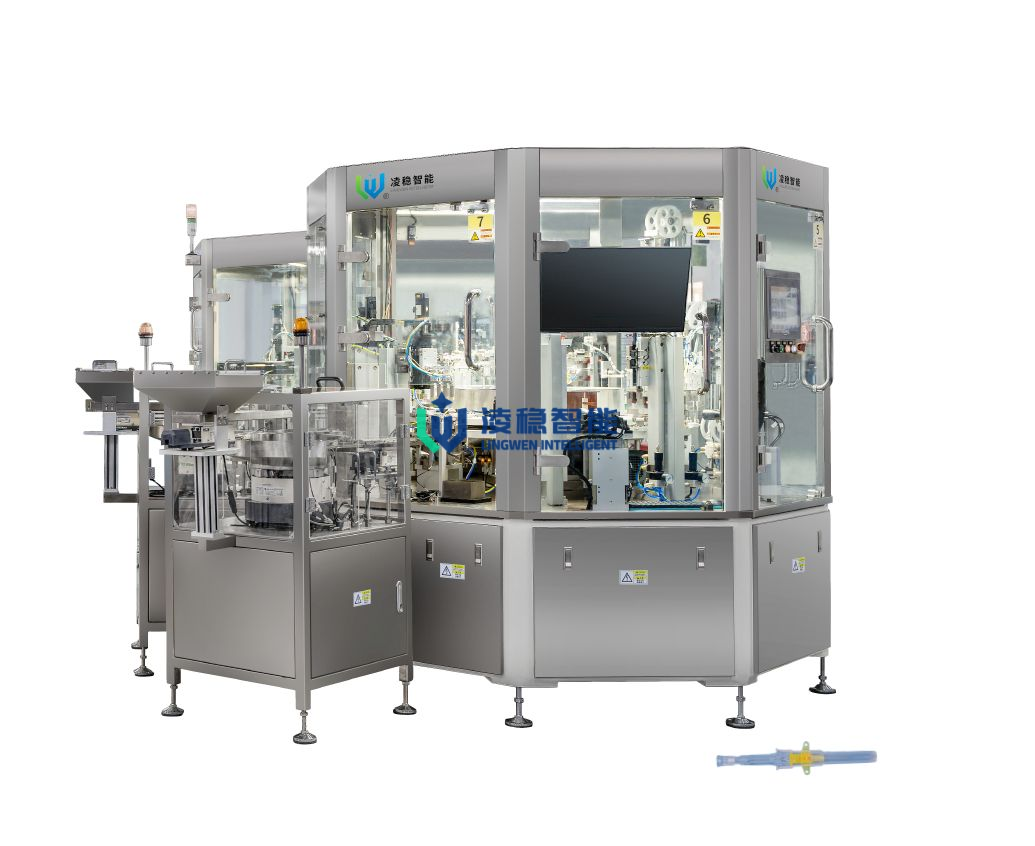

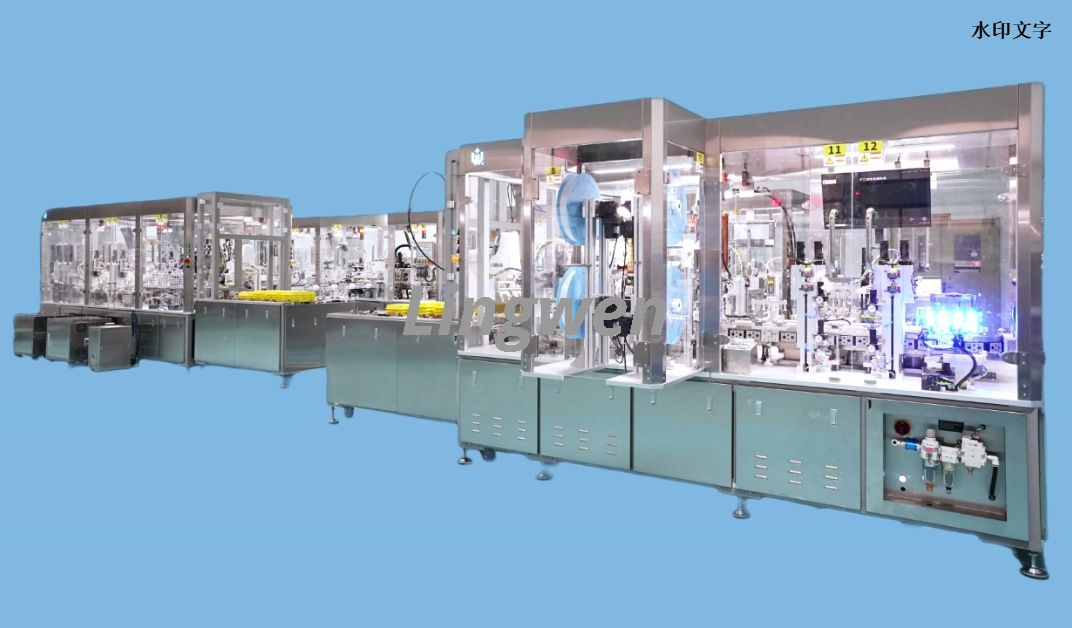

Automatic Safety IV Cannula with wing Assembly Machine with 4 track

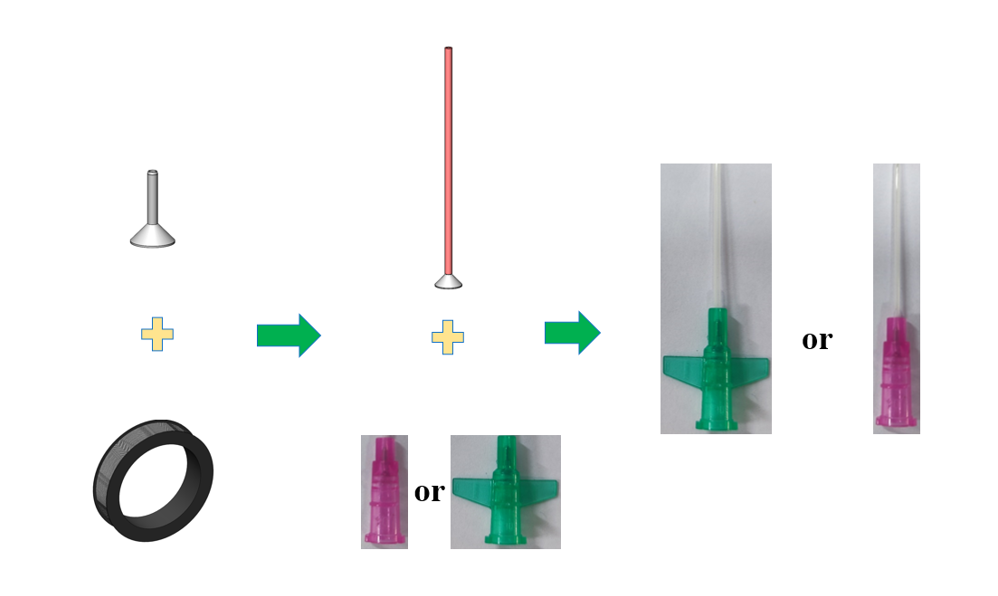

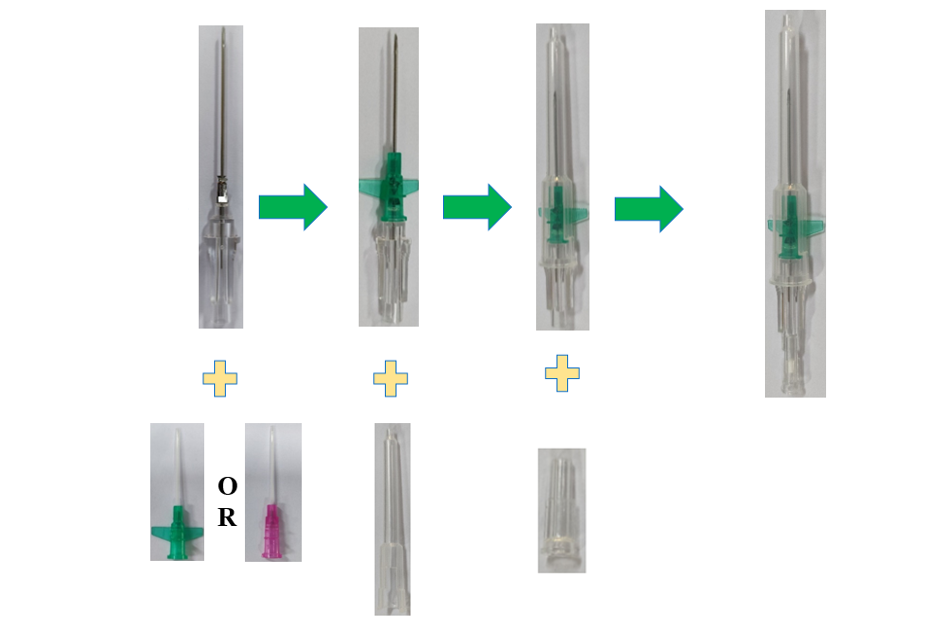

1、Process flow chart:
1) Wing body assembly machine

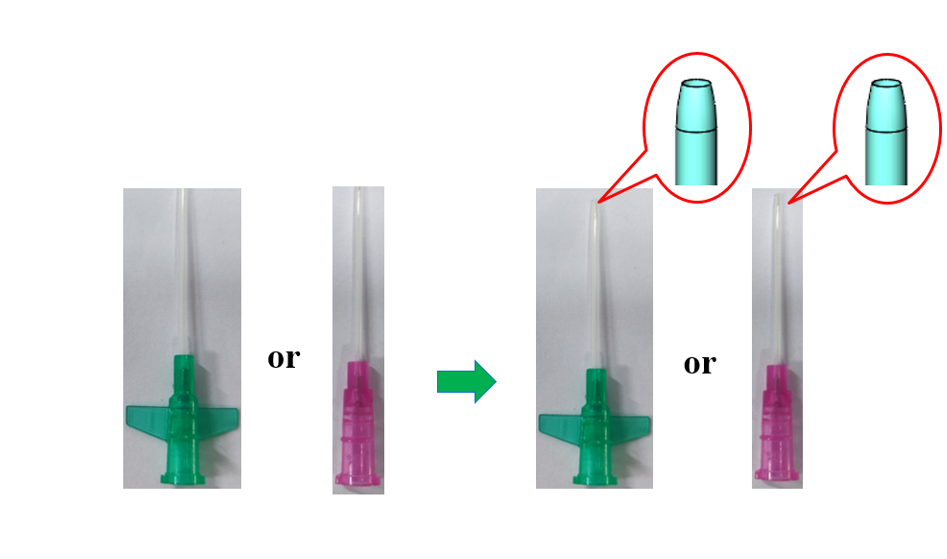

2) Tip forming machine
3) Needle subassembly machine
4) Blood stop assembly machine
5) Final assembly machine
2、Machine Functions:
4) With CCD testing device by Basler cammera to make sure the Alpha value

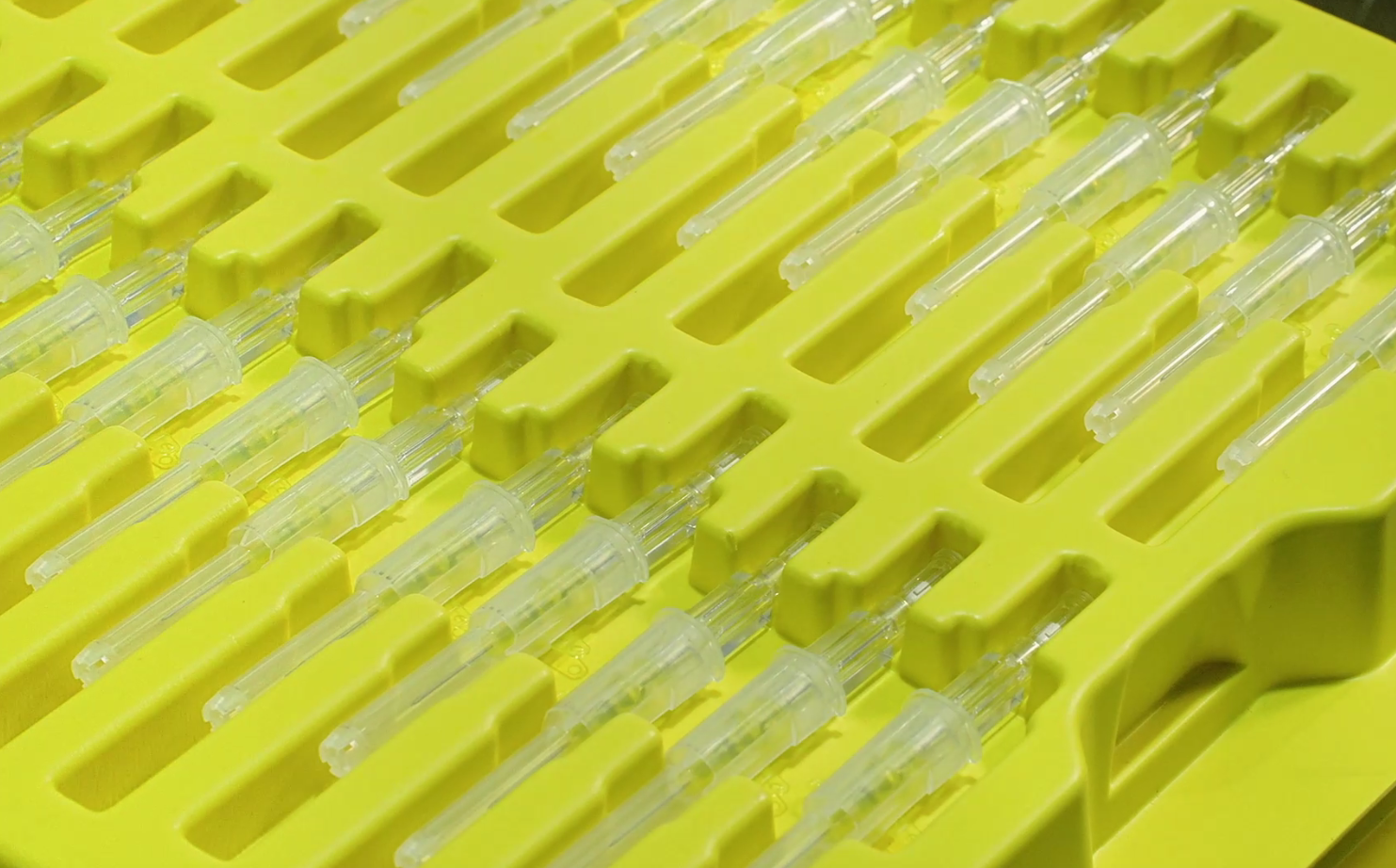

5) Robot to automatically unloading components to our transfer trays
6) Rejection rate ≤ 2%
7 ) Utilization rate ≥ 95%
8 ) Compatible for 18G/20G/22G/24G
9 ) Fully feed all the parts by vibratory feeder controller:
needle, septum, cannula, needle hub, catheter hub,protective cap,safety clip.

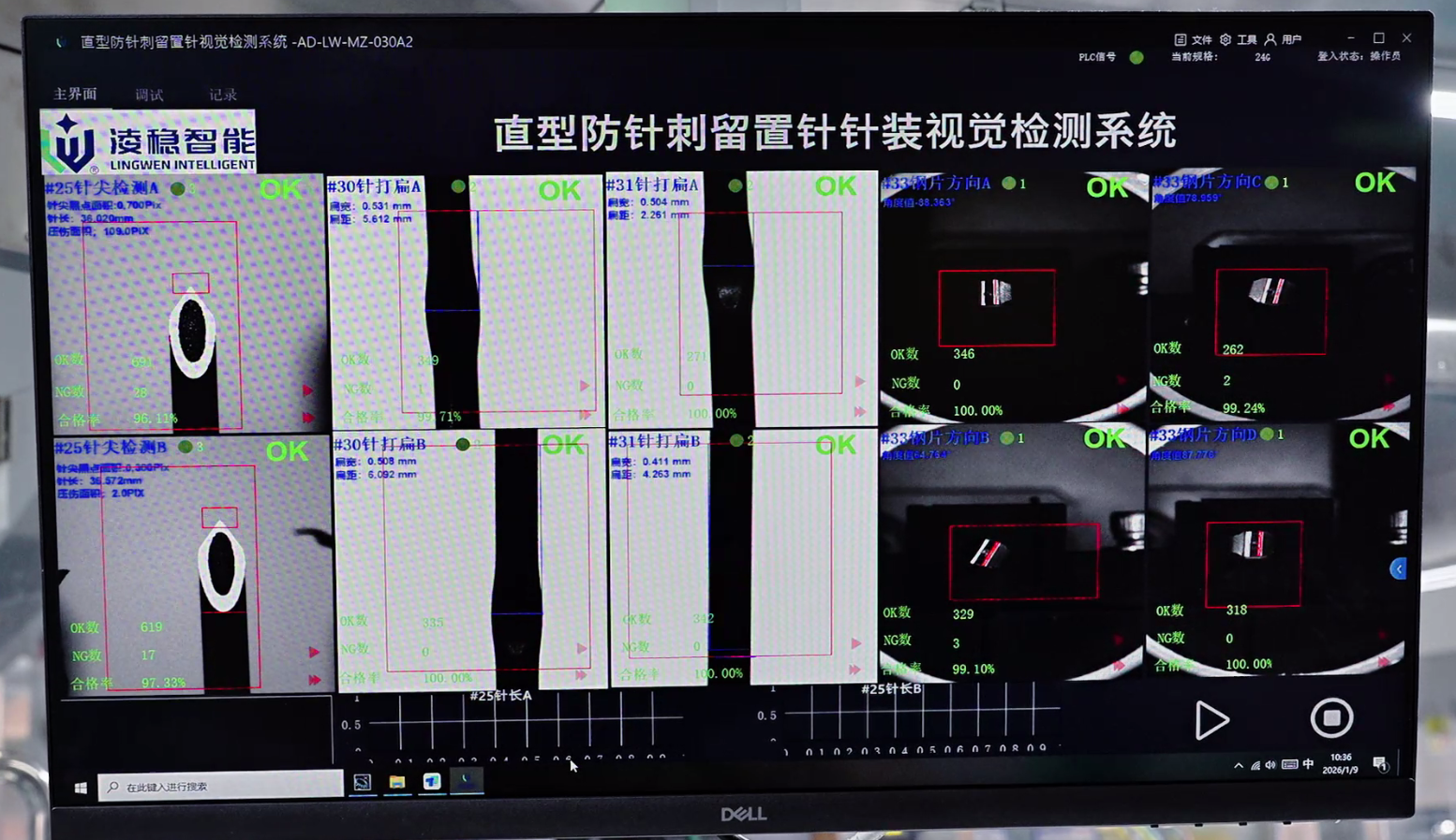

10) Important process: needle tip quality is tested by visual inspection.
needle burr, needle tip damage,needle orientation,needle length and so on
Essential functions are equipped with machine: apply silicon oil,leakage,blockage,apply UV adhesive,Curing.
12 ）All stations and production data could be monitor by touch screen
3、Lead time
6 months
4、Packaging
Wooden case
5、Warranty time
1 year
6、After-sales service
Support 7*24H, training support，Installation, wear parts.
