AADZ+AAZZ+AADR+AFY
LINGWEN

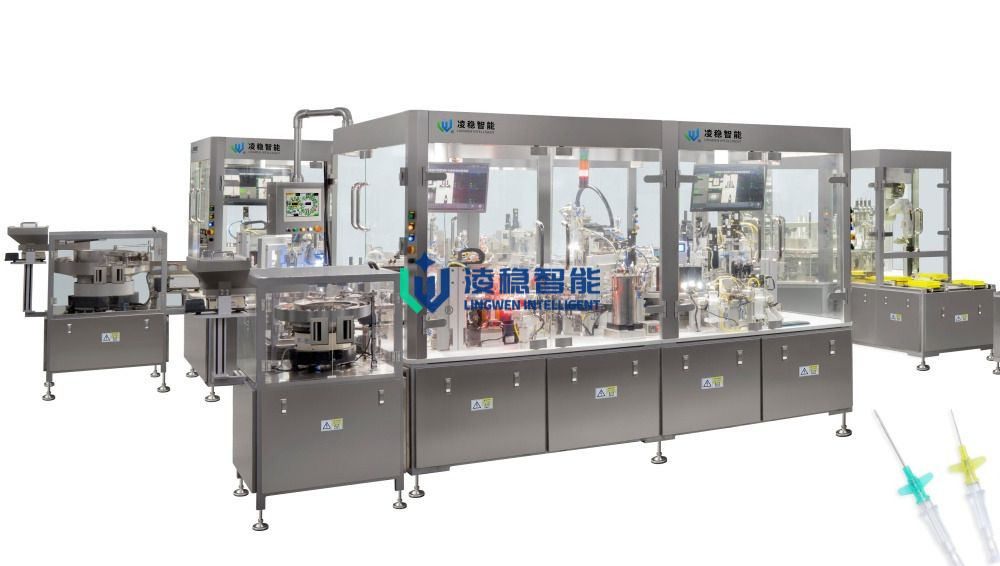

Automatic Safety IV Cannula with wing Assembly Machine

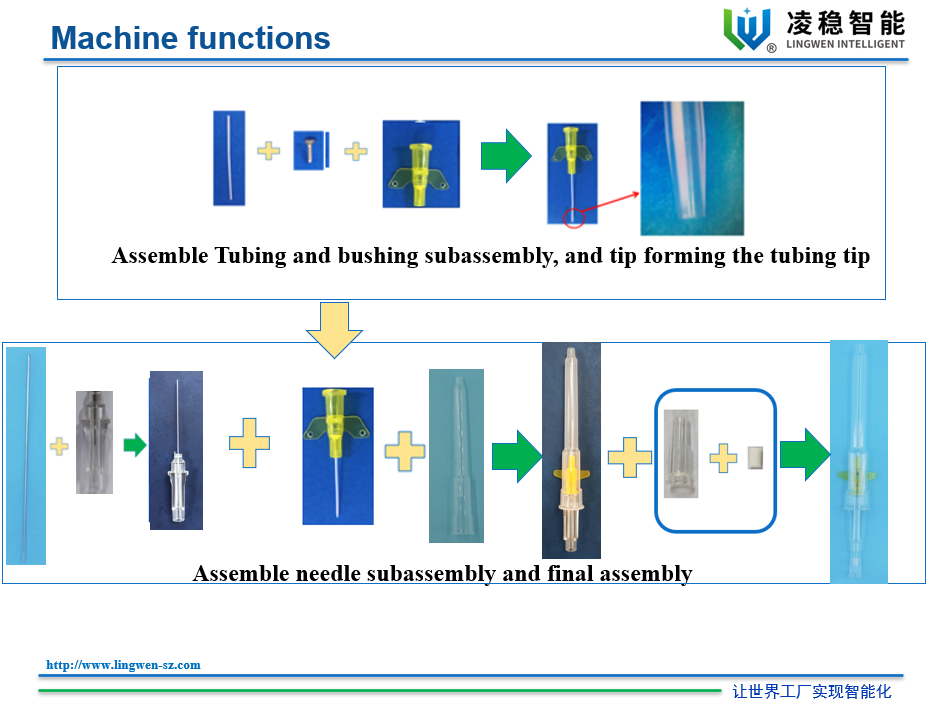

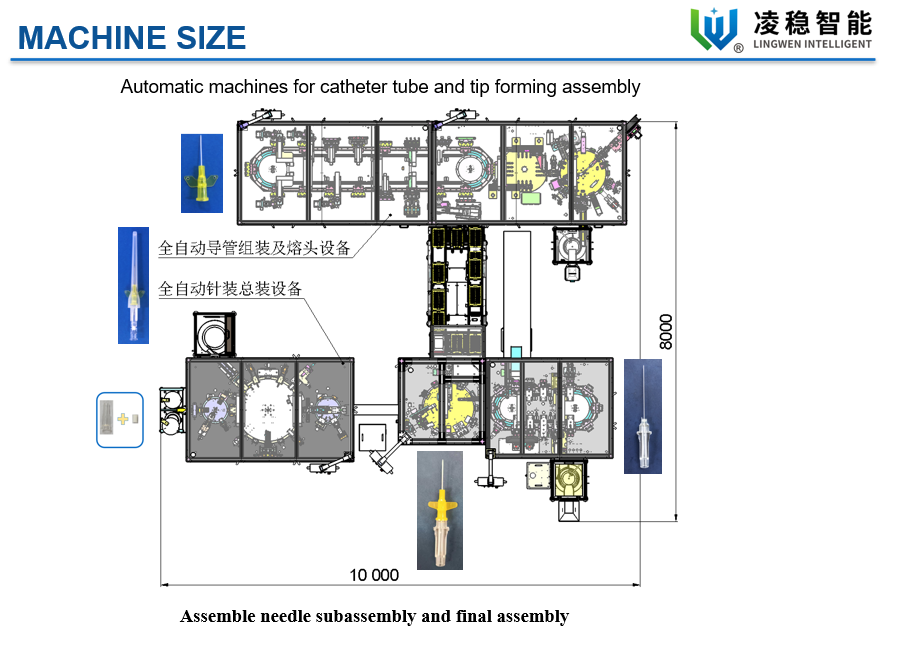

1、Process flow chart:
1) Wing body assembly machine
2) Tip forming machine
3) Needle subassembly machine
4) Final assembly machine
2、Machine Functions:
4) With CCD testing device by Basler cammera to make sure the a value
5) Robot to automatically unloading components to our transfer trays
6) Rejection rate ≤2%
7 ) Utilization rate ≥95%
8 ) Compatible for 18G/20G/22G/24G/26G
9 ) Fully feed all the parts by vibratory feeder controller，needle, septum, cannula, needle hub, catheter hub,protective cap,safety clip.
10) Important process: needle tip quality is tested by visual inspection.
needle burr,needle tip damage,needle orientation,needle length and so on
Other essential functions are equipped with machine,like apply isopropanol，leakage，blockage, apply UV adhesive.Curing.
3、Lead time
4 months
4、Packaging
Wooden case
5、Warranty time
1 year
6、After-sales service
support 7*24H, training support，Installation, wear parts..
