Safety Huber Needle Assembly Machine

        Automatic assembly machine for  safety huber needle for implantable port TIAP
1. Machinery Capacity 900pcs/h
2. Weight 2000 KG
3. Dimension(L*W*H) 6400*2200*2100
4. Voltage 380v/220v
5. Power 26kw
6. capacity 900Pcs/H
7. rejection rate ≤3%
8. Utilization rate ≥95%
9. Size 17G/18G/19G/20G
10. Electrical brand Siemens and Kenyence
Availability:
Quantity:
Inquire Add to Basket

  • 232232AZYS101A

  • LINGWEN

  • ASPM

   Automatic assembly machine for safety huber needle for implantable port TIAP

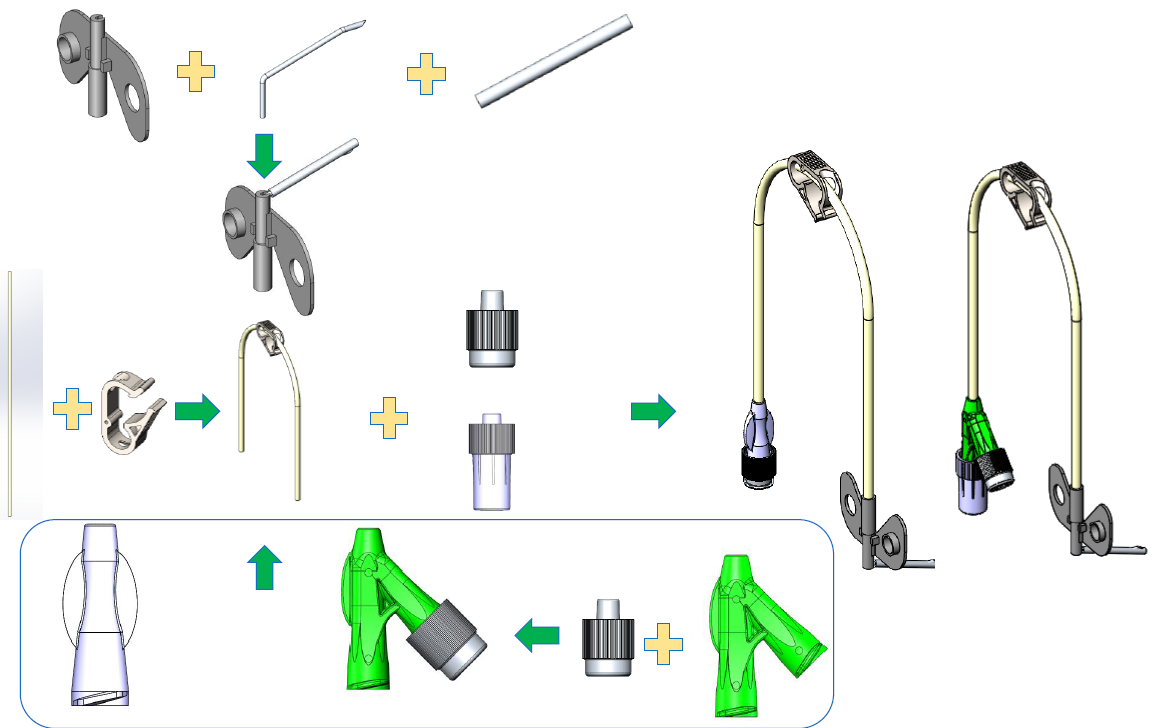

1、Process flow chart:

    Automatic feeding needle and needle hub- UV glue bonding-curving and CCD Testing-- feeding Neeel subassembly --tube --tube clamp-UV glue bonding-curving-connector

huber needle


2、Machine Functions:

1. Capacity: 900pcs/h
2. Operating personnel:1 worker
3. Air compressor:0.6~0.8 MPa1. Automatic assembly external catheter and needle of insulin pump system.

4. With CCD testing device by Basler cammera to make sure the a value and Robot to automatically unloading components to our transfer trays

5. rejection rate ≤2%
6. Utilization rate ≥95%
7. Size 17G/18G/19G/20G/22G/24G


3、lead time


4  months


4、Packaging


Wooden case


5、warranty time


1 year


6、After-sales service


support 7*24H,training support，Installation, wear parts..

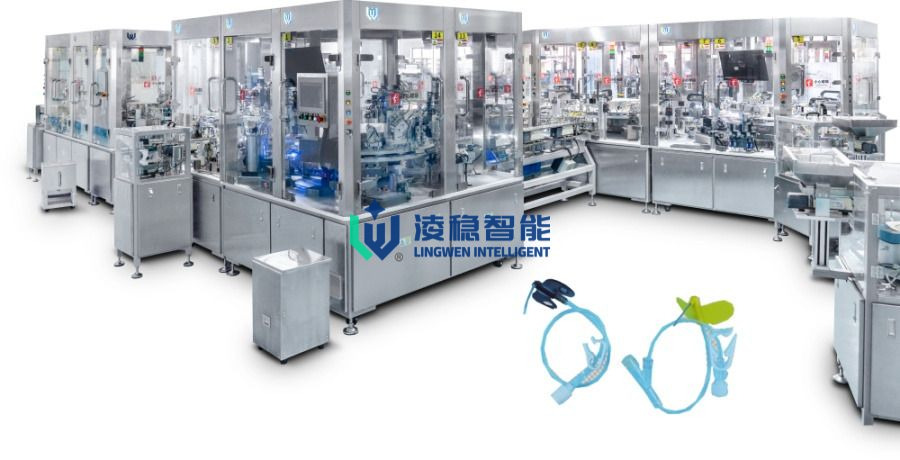

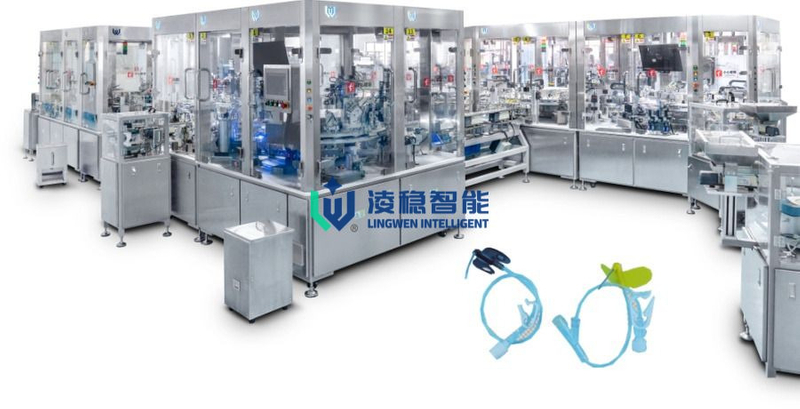

Assembly line workshop2

专用针8_副本
