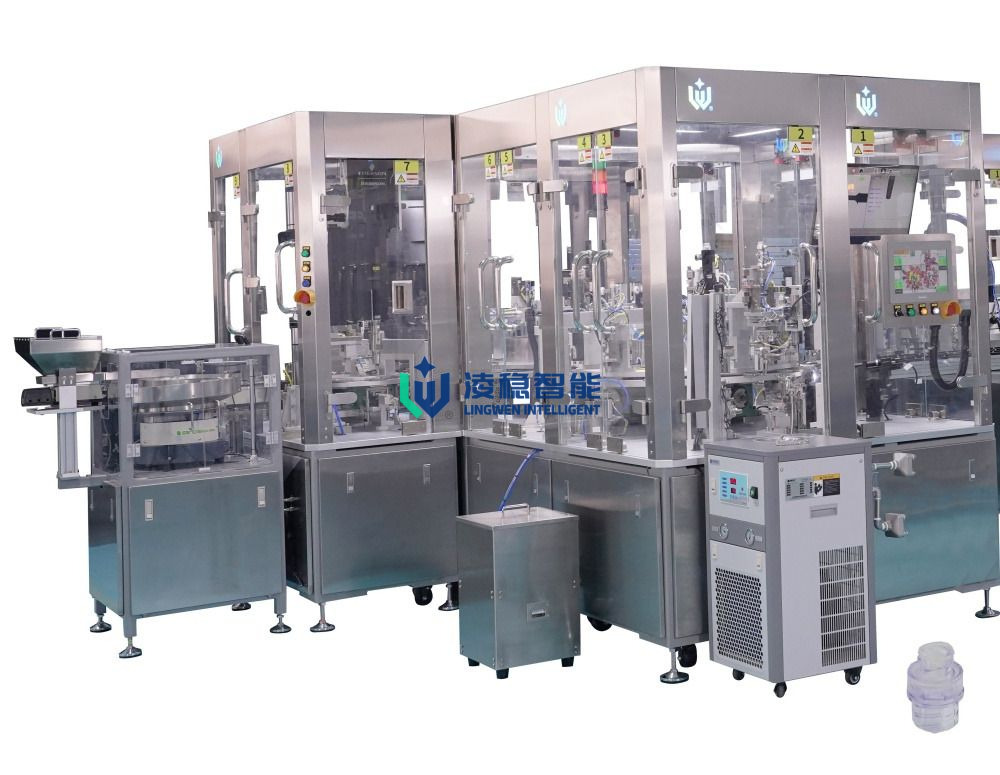

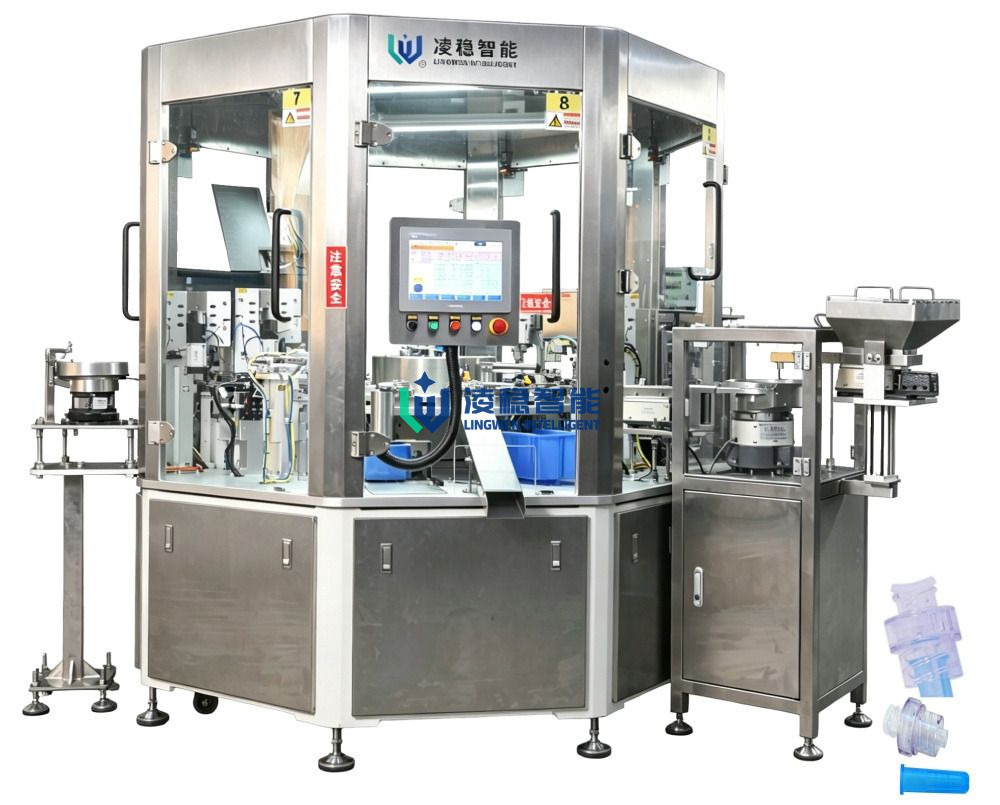

Automatic Assembly Machine for Q-Syte Connector
1、Process flow chart:

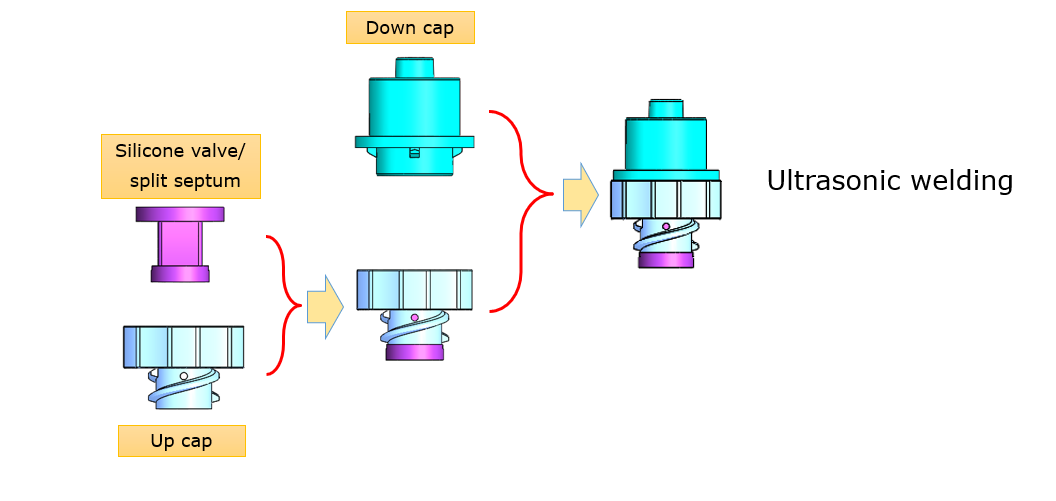

1) Assembly subassembly: silicone film, upper cap, lower cap
2) Automatic feeding each component
3) apply liquid silicone glue
4) With CCD test for glue
5) Ultrasonic welding device
6) Inspection test
7) Unload finished products
2、Machine Functions:
4) With CCD testing device by Basler cammera to make sure glue uniform.
5) Rejection rate ≤2%
6 ) Utilization rate ≥95%
3、Machines' advantage :
1) Q-Syte connector machine feeds silicone pads, cover hubs and apply liquid silicone glue automatically
2) Adjust the depth of apply liquid silicone glue inside of silicone pads
3) Control the position of apply glue and glue thickness
4) Machine is equipped with detection by visual inspection
5) Machine has function of split out rejection and passed products
6) Finished products can be transferred by four-axis robot and put in fixture tray.
4、Lead time
4 months
5、Packaging
Wooden case
6、Warranty time
1 year
7、After-sales service
Support 7*24H, training support, Installation, wear parts.
