Lingwen28
LW

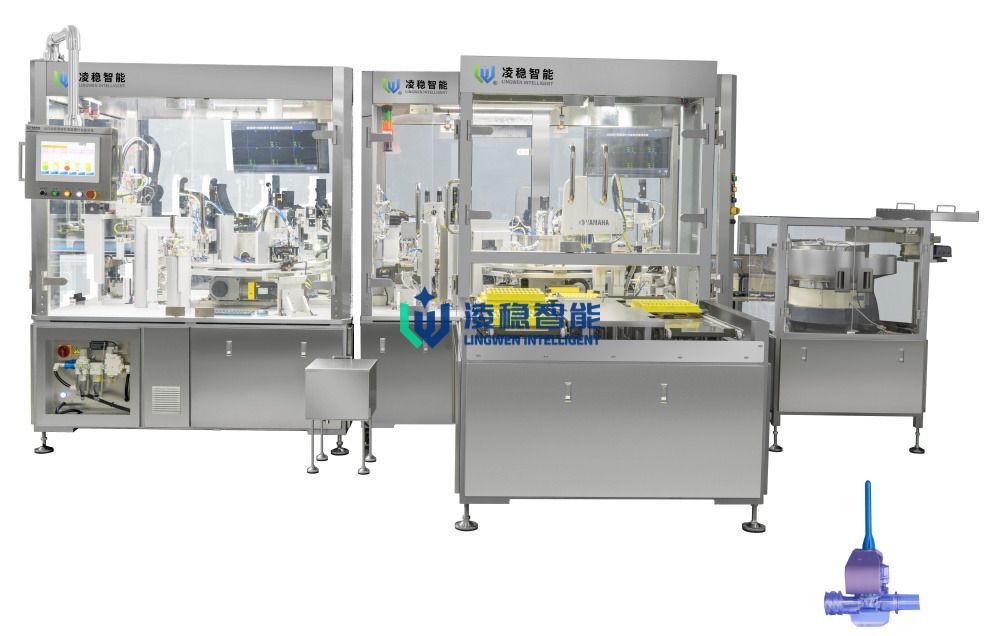

Fully Automatic Assembly Machine for Pressure Transducer

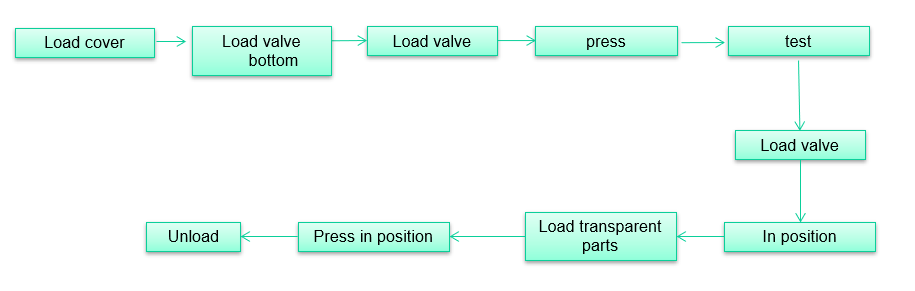

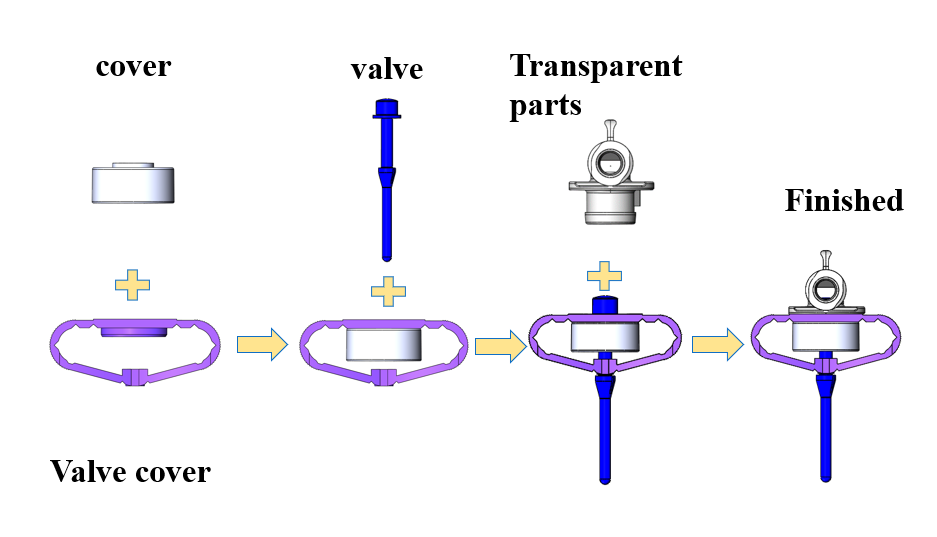

1、Process flow chart:
1) Automatic feeding cover
2) Automatic feeding valve bottom
3) Automatic feeding valve pin and transparent parts
4) CCD test each components in position
5) Unload finished products
2、Machine Functions:
1 ) Automatic loading components
2 ) Production data can be traced
3 ) Vision inspection
4 ) Monitoring forming shape quality by CCD
5 ) High efficient and capacity 1000~2000PCS/H
3. Machine features:
1) Non-magnetic stainless steel used for each Fab parts at the feeding station of steel needle
2) During product conversion , the change of mechanical position is realized through the adjustment of servo position, which can be realized with one button in the touch screen
3) The equipment structure ergonomically convenient for maintenance
4) Each station of the equipment be able to reset and run a cycle independently;
5) Use vision system CCD check
6) Servo press ensures rivet stability
4、lead time
4 months
5、Packaging
Wooden case
6、warranty time
1 year
7、After-sales service
Support 7*24H,training support，Installation, wear parts..
