Lingwen42
LW

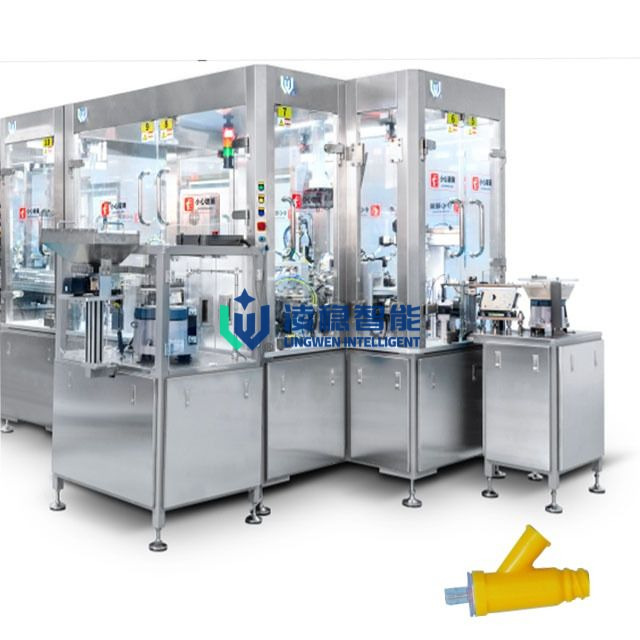

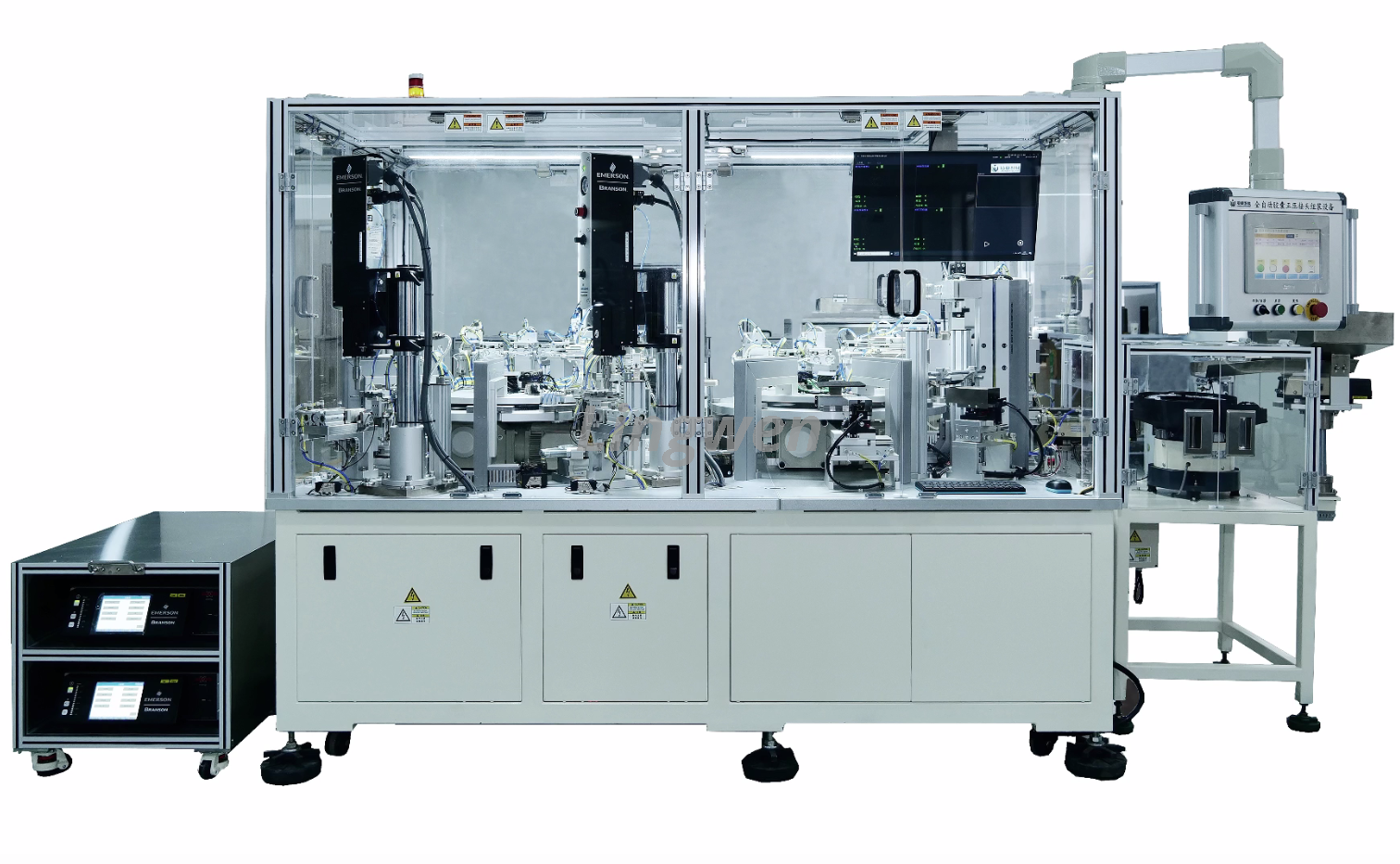

Automatic Positive Needlefree Connector Assembly Machine

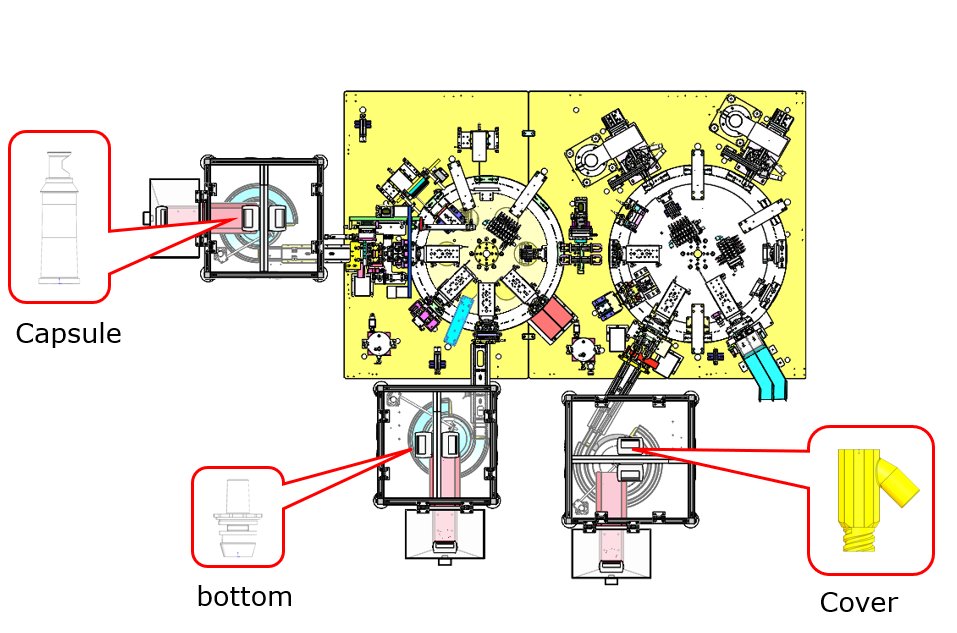

1、Process flow chart:

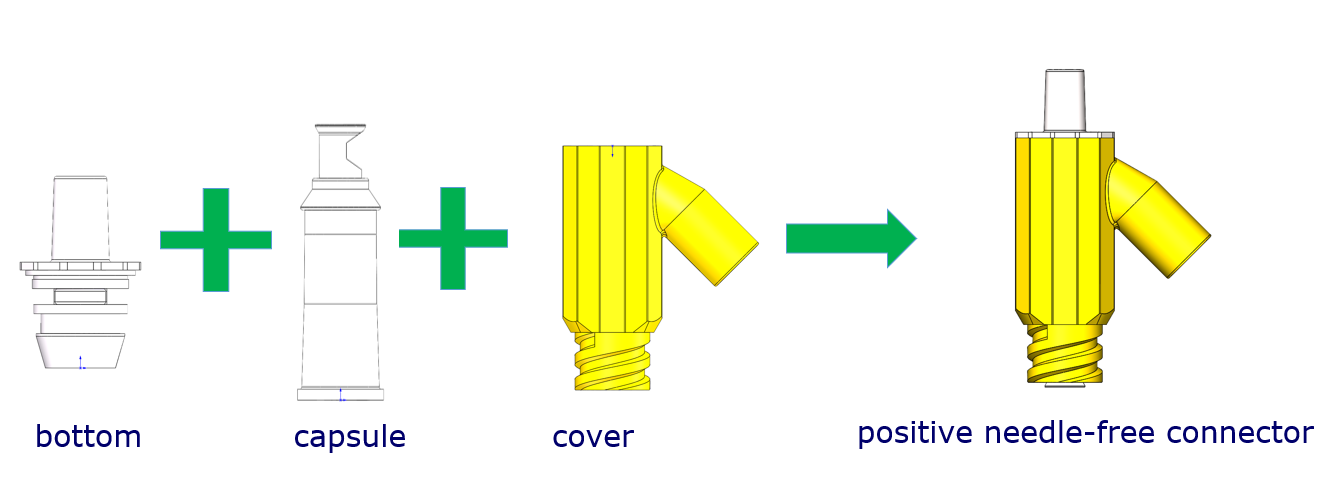

1) Automatic feeding bottom
2) Apply silicon oil
3) Automatic feeding capsule

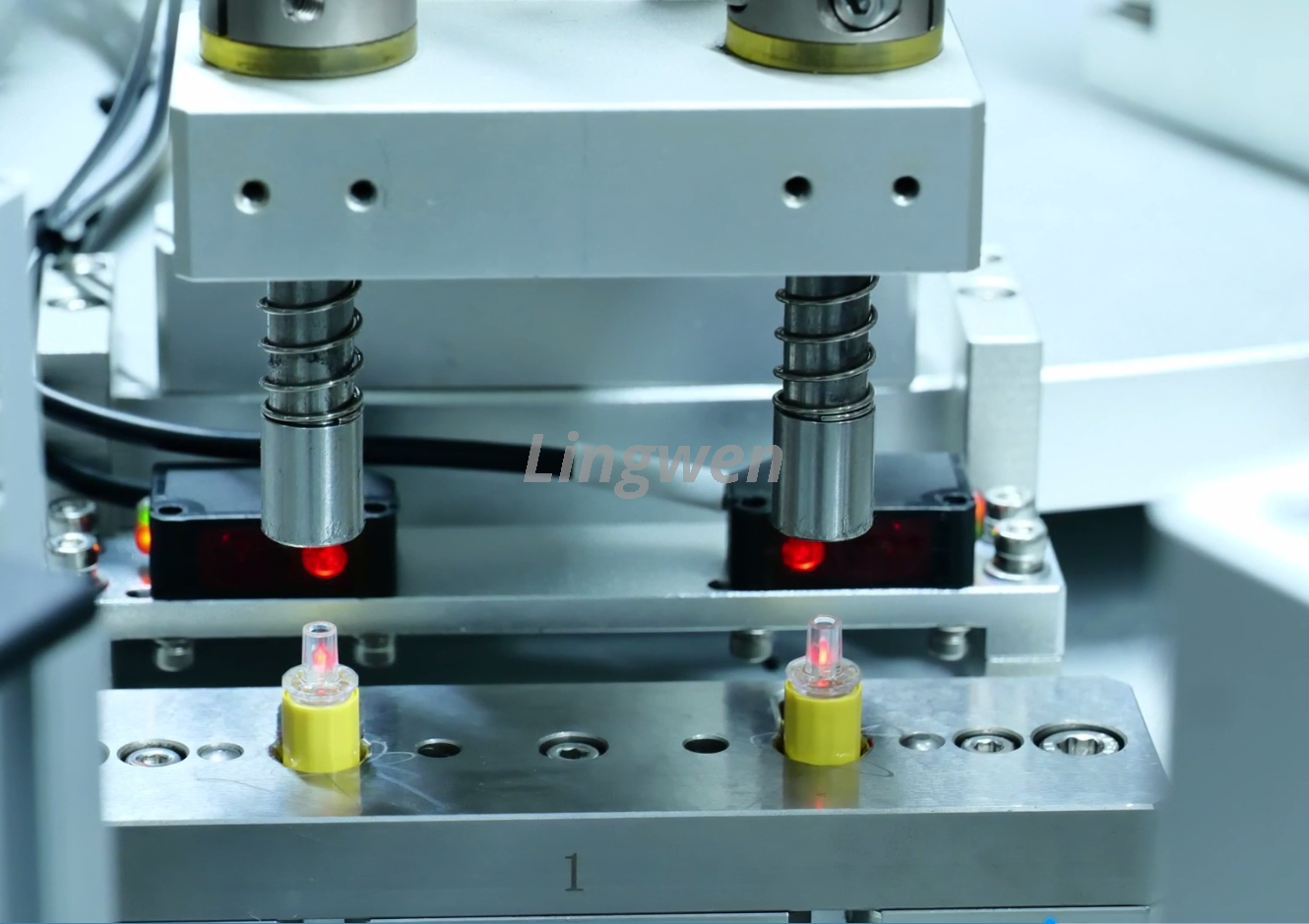

4) CCD test in place

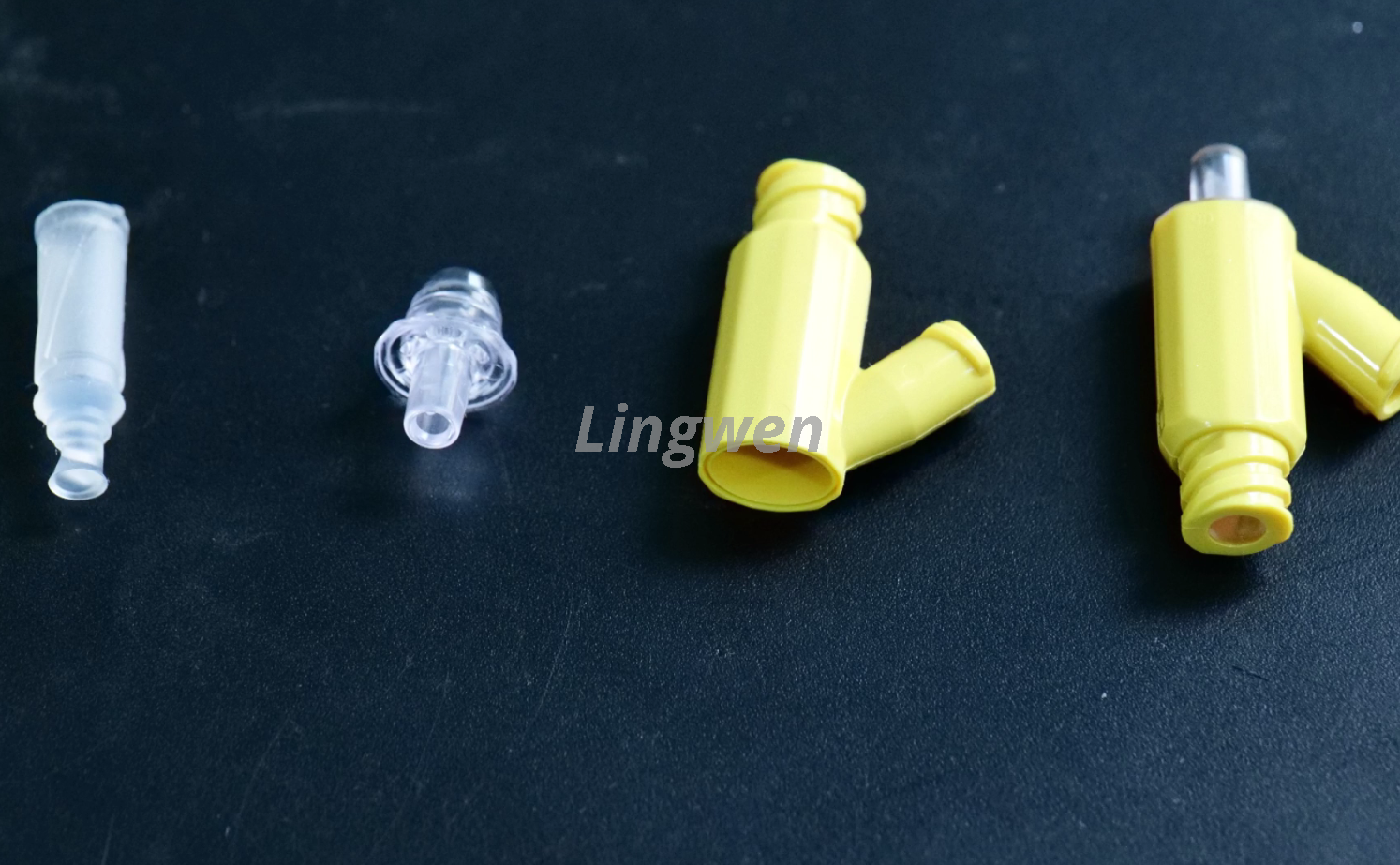

5) Automatic assembly bottom and capsule
6）Transfer

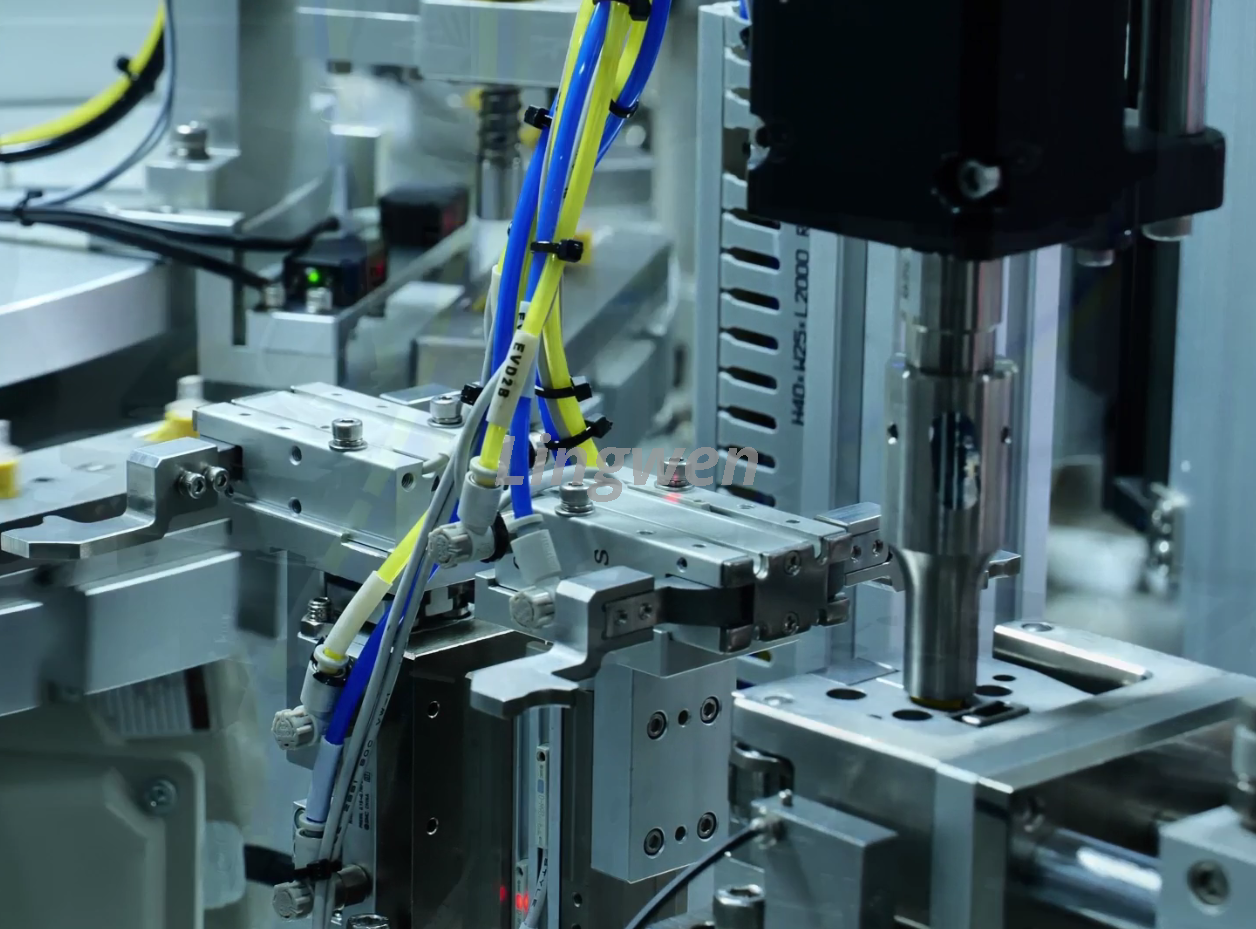

7) Ultrasonic welding A & B
8) Activate
9) Unloading valid and invalid products
2、Machine Functions:
4) With precious inspection device
5) Rejection rate ≤2%
6 ) Utilization rate ≥98%
3、Machines' advantage :
1) Equipment basic functions, apply silicon oil , utrasonic welding , monitor and deal with inverse components,
2) With device to remote torque control and monitoring of production

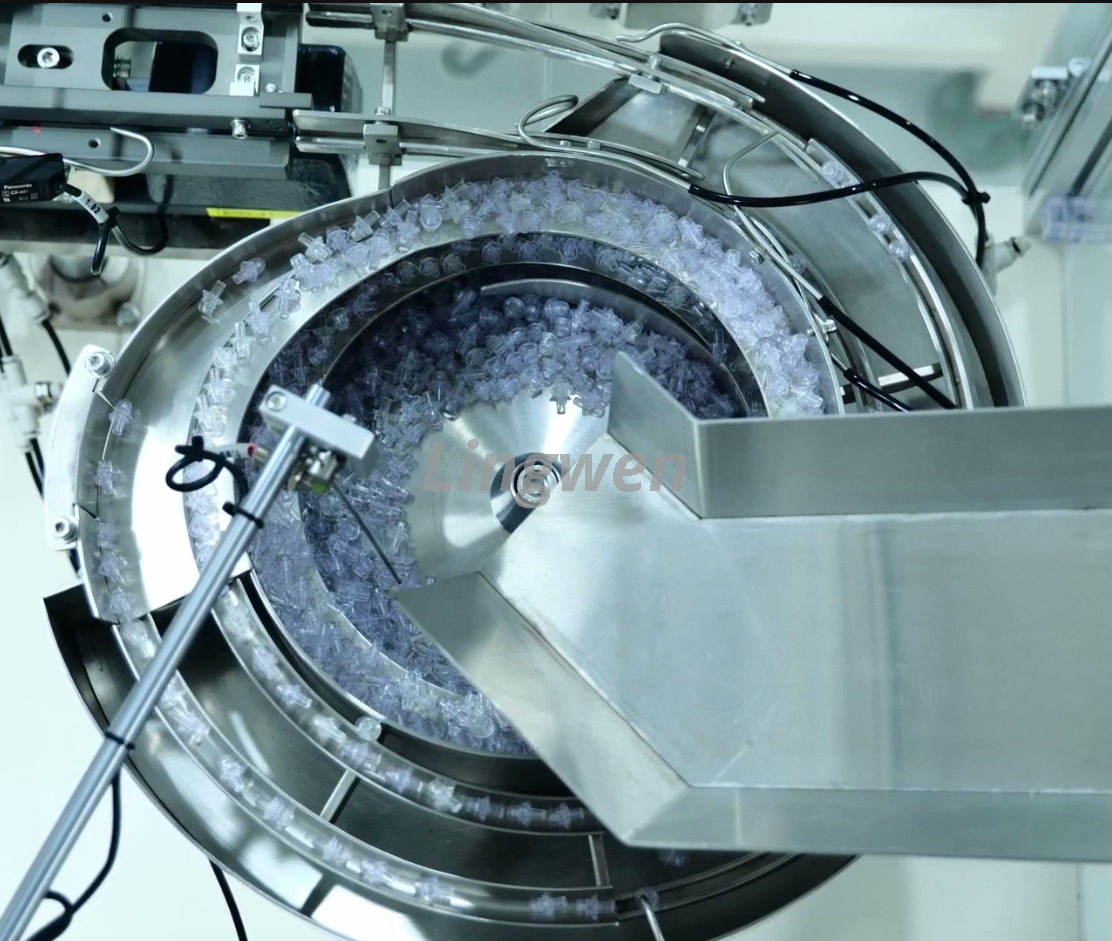

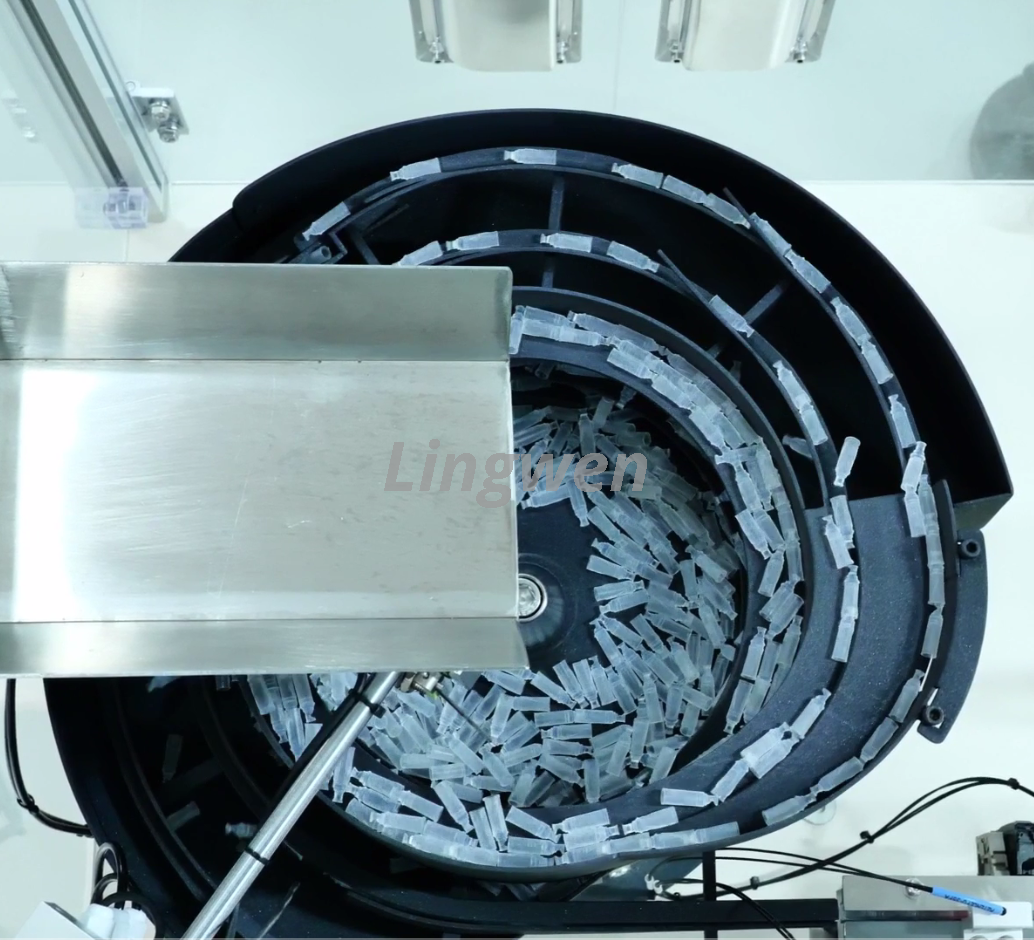

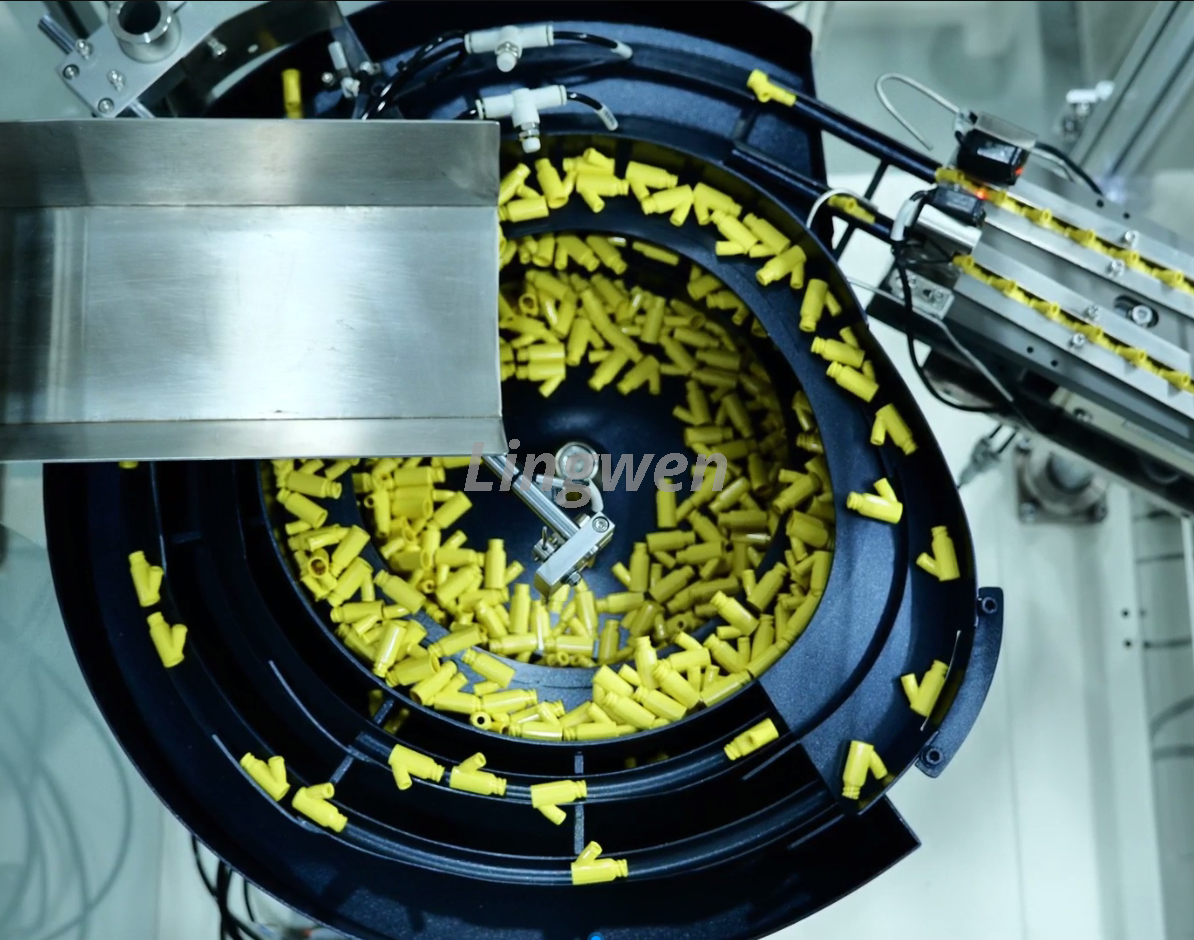

3) All components could be fed by vibratory feeder controllers
4) The rotation accuracy of cylinder is ±2°
5) The equipment is equipped with detection sensors to detect whether the transfer is ok or not.
4、Lead time
4 months
5、Packaging
Wooden case
6、Warranty time
1 year
7、After-sales service
Support 7*24H,training support，Installation, wear parts.
