AHS
LINGWEN

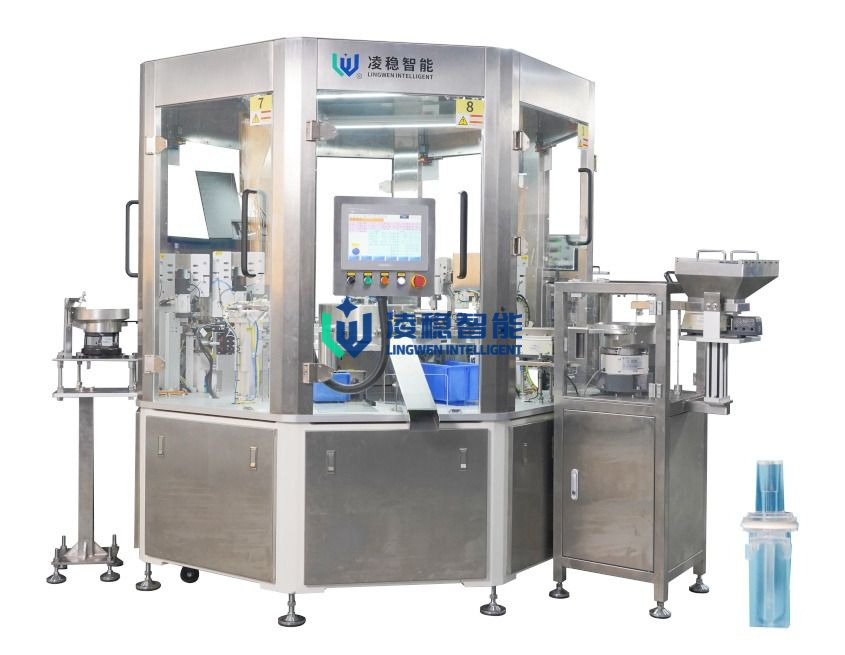

Automatic O Ring Needle free Connector Assembly Machine

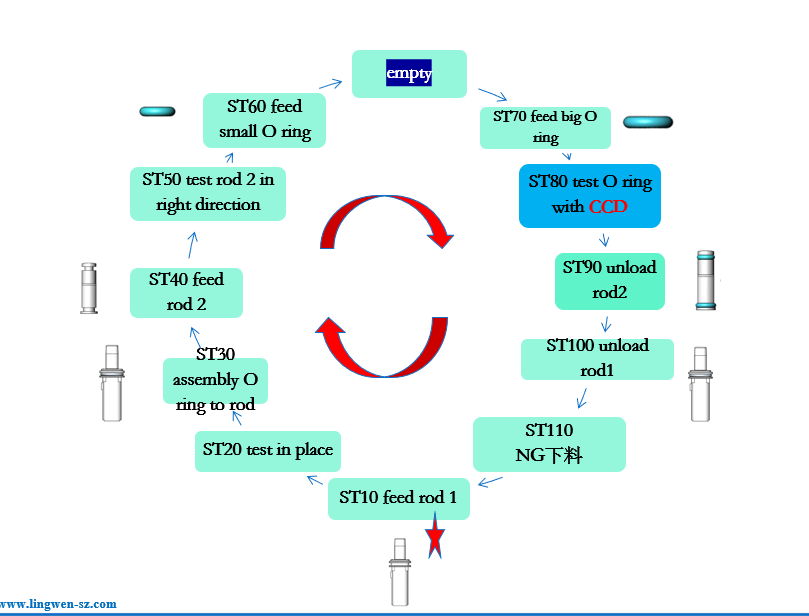

1、Process flow chart:

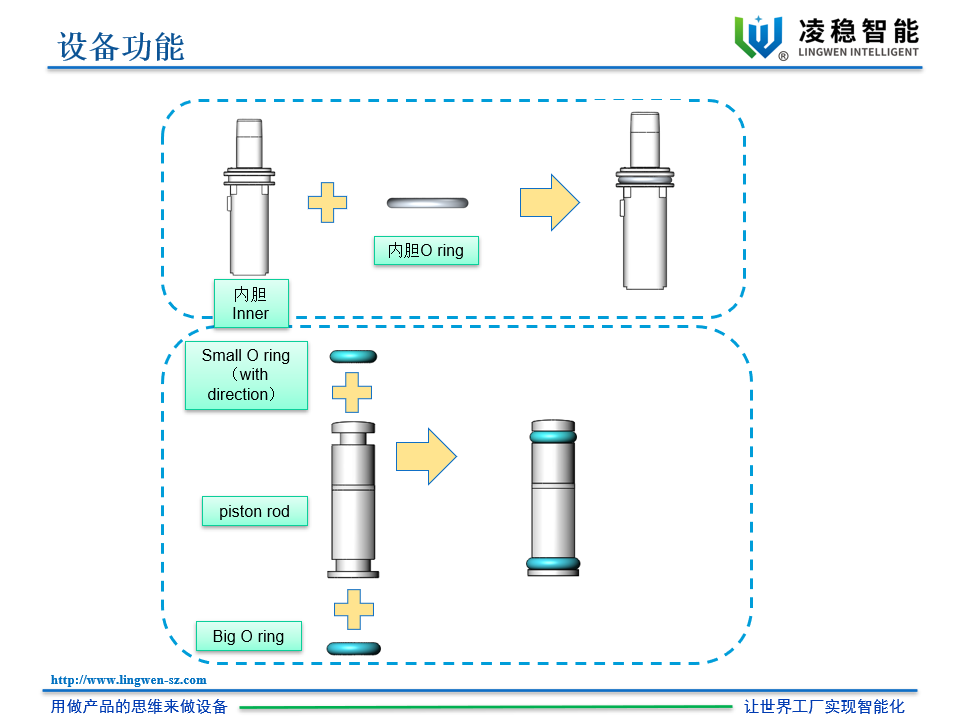

1) Feeding inner pod 1
2) Feeding O ring and assembly
3) Test O ring and pod 1
4) Feeding piston rod 2
5) Feeding small O ring and Big O ring and assembly
6) Testing the O ring with CCD system
7) Unload finished products
2、Machine Functions:
4) With CCD testing device by Basler cammera to make sure O ring in right place.
5) Rejection rate ≤2%
6 ) Utilization rate ≥95%
7 ) Fully feed all the parts by vibratory feeder controller: rod, O ring, and piston rod
8) Important process: O ring in right place by visual inspection.
9) Different capacities are custom-made by clients' requirements
3、Lead time
4 months
4、Packaging
Wooden case
5、Warranty time
1 year
6、After-sales service
support 7*24H,training support，Installation, wear parts..
