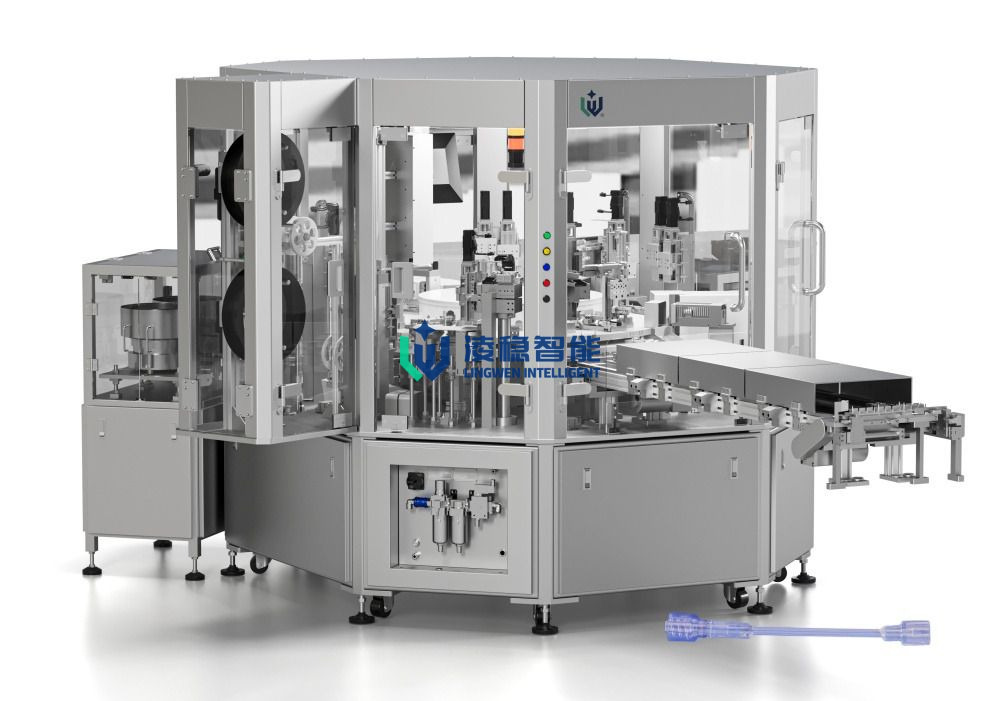

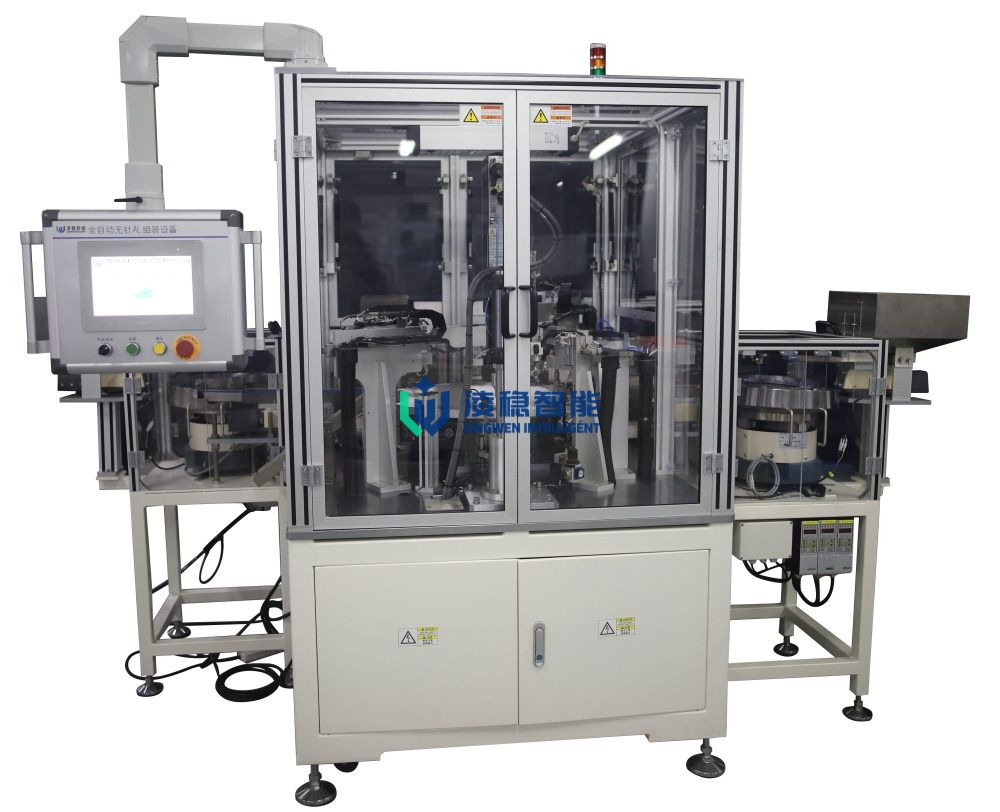

Luer-lock IV Extension Tube Assembly Machine

Automatic Disposable Luer-lock IV Extension Tube assembly machine

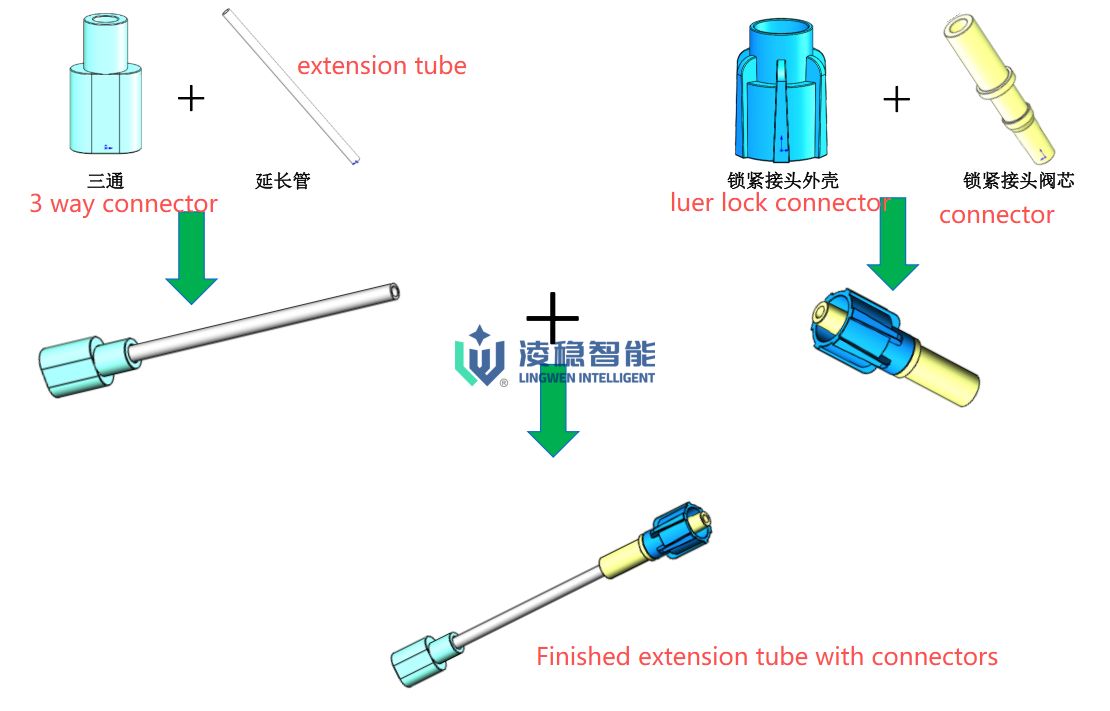

1、Process flow chart:

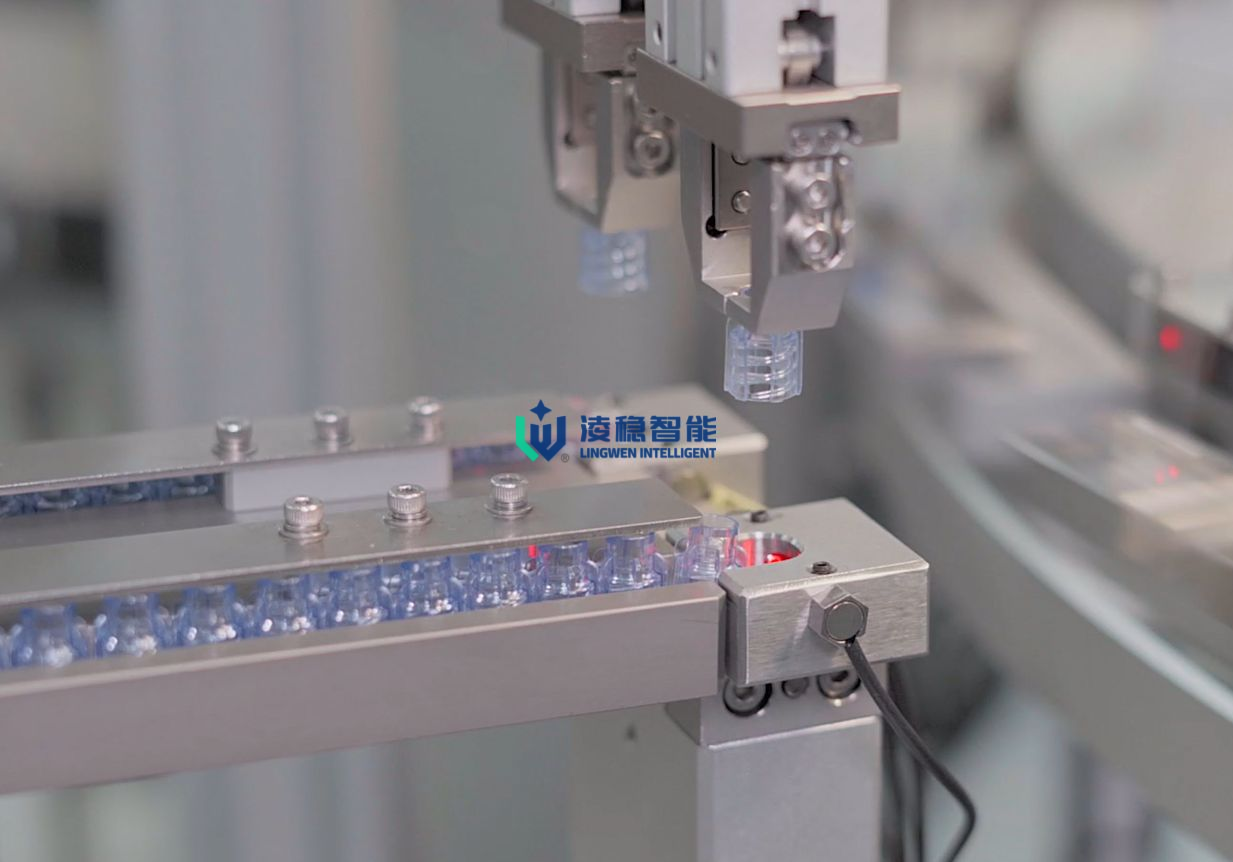

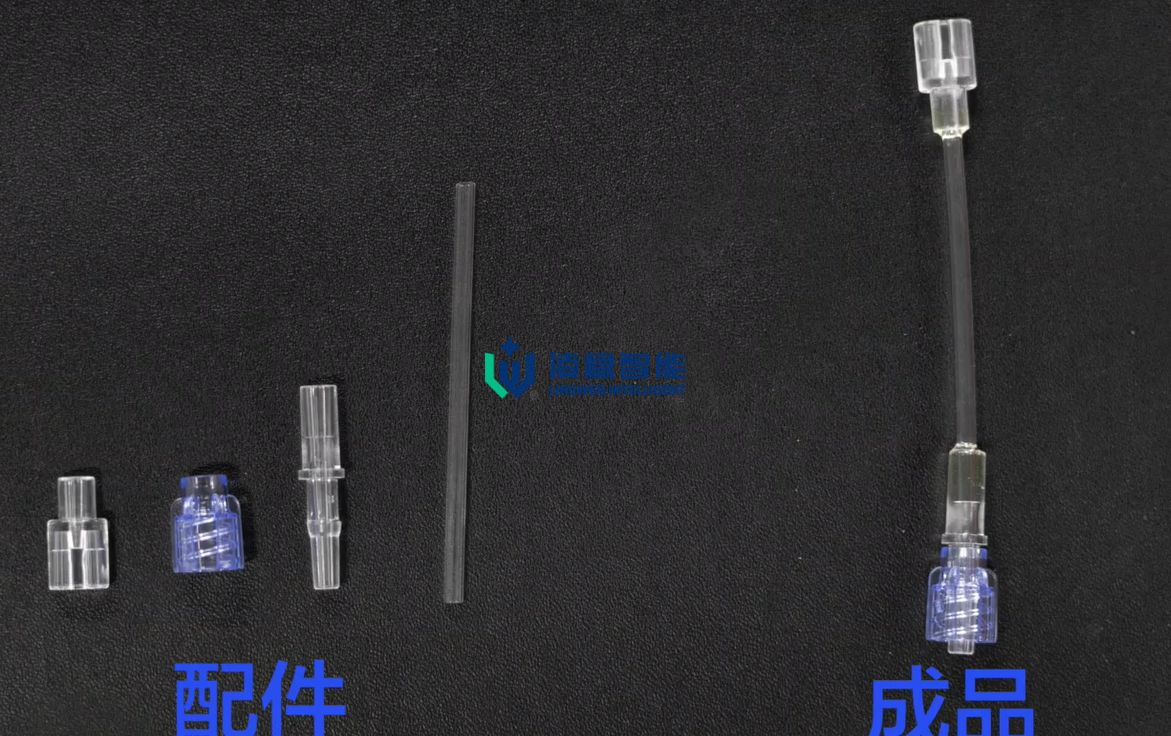

1)  Automatic feeding 3 way connector

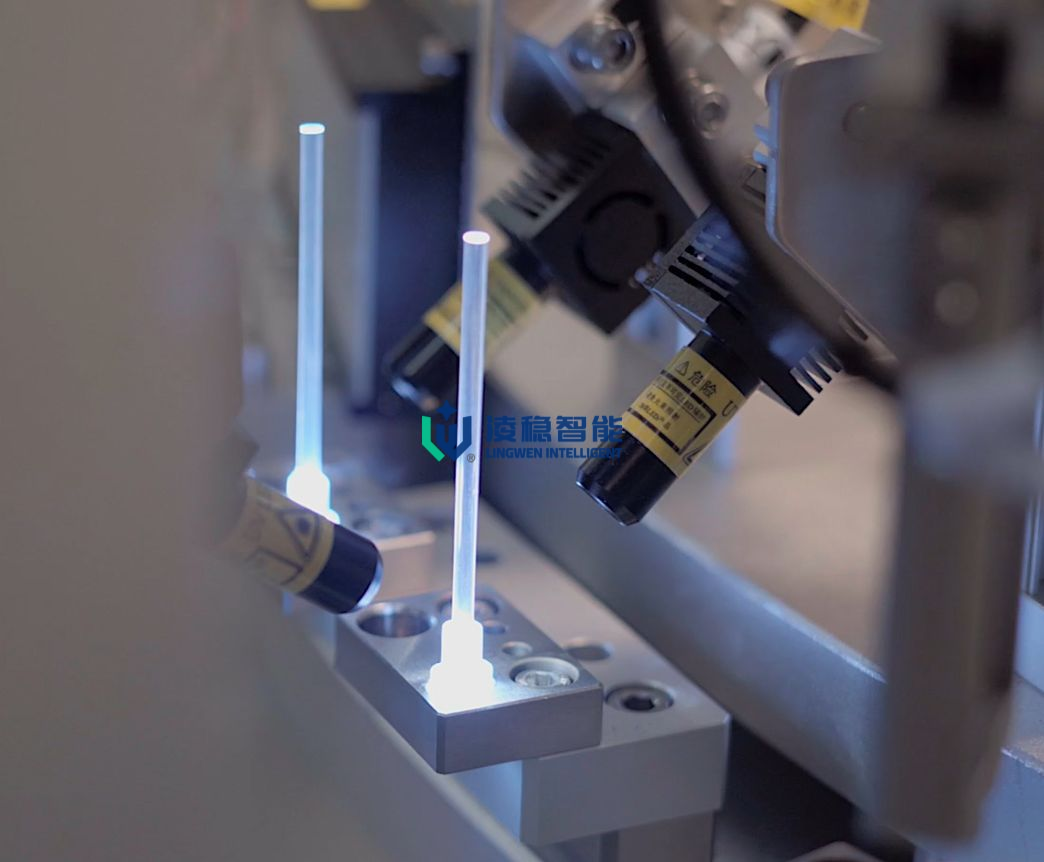

2)  Automatic feeding tube

3)  Automatic apply UV glue

4)  Curving

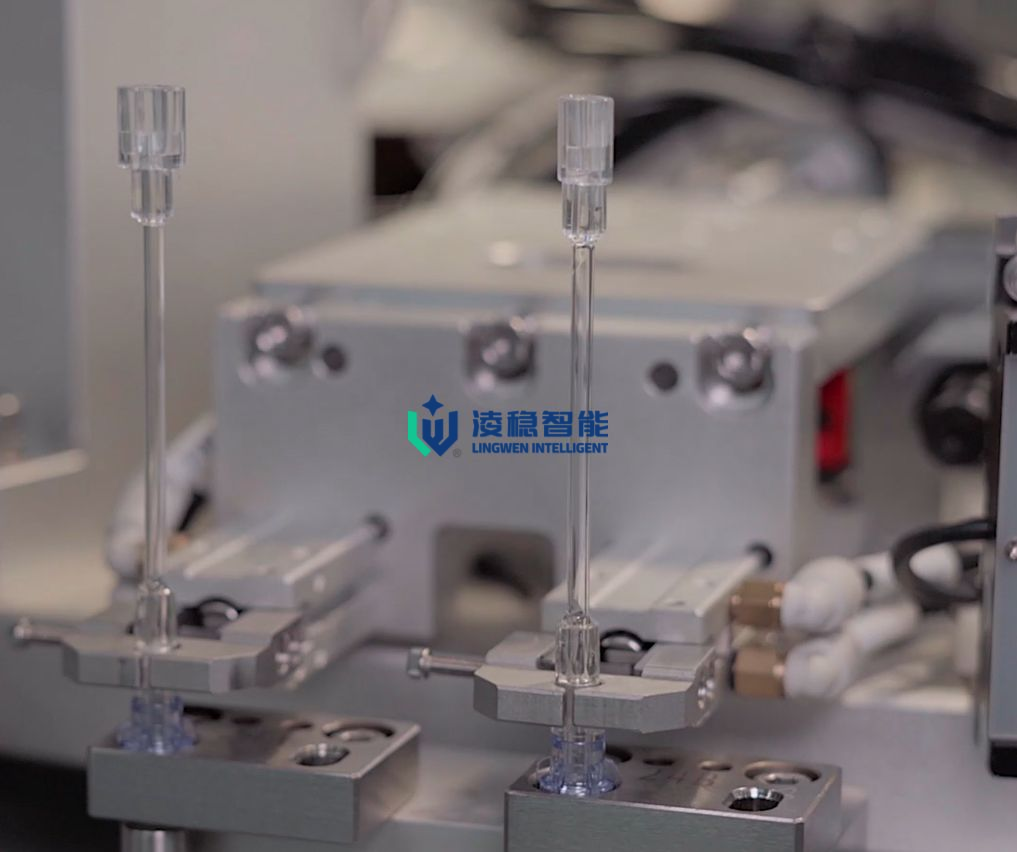

5）Automatic feeding luer lock connector

6)  Automatic feeding connecotr

7)  Assembly luer lock connector and connector

8)  Automatic feeding luer lock connector subassembly

9)  Apply UV glue

10) Curving

11) With flow inspection with CCD system

12)  Unloading valid and invalid products

2、Machine Functions:

3、Machines' advantage :

1)  Equipment basic functions, apply UV glue, CCD monitor

2)  All components could be fed by vibratory feeder controllers

3)  The rotation accuracy of cylinder is ±2°

4)  Occlusion test with flow meter

5)  The equipment is equipped with detection sensors to detect whether the comonents in right place

4、Lead time

      5  months

5、Packaging

      Wooden case

6、Warranty time

       1 year

7、After-sales service

      Support 7*24H,training support，Installation, wear parts.
