Views: 0 Author: Site Editor Publish Time: 2026-04-12 Origin: Site
To address the limitations of traditional manual assembly—such as high contamination risk, inconsistent product quality, low production efficiency and high labor costs—medical automatic IV catheter assembly equipment has emerged as a core solution, integrating precision machinery, electronic control, sensor detection and intelligent management technologies to realize the full-process automated assembly of IV catheter, setting a new benchmark for the standardized and intelligent production of medical devices.
The medical automatic IV catheter assembly equipment is specially designed for the structural characteristics and production process requirements of indwelling needles, covering the full assembly process of key components such as inner needle, outer needle, needle hub, catheter, catheter hub, silicone tube, heparin cap, extension tube and protective cap. Its core functions include automatic feeding, precision assembly, adhesive bonding, siliconization oil, intelligent detection and automatic blanking, tip forming production line with high integration and high continuity.

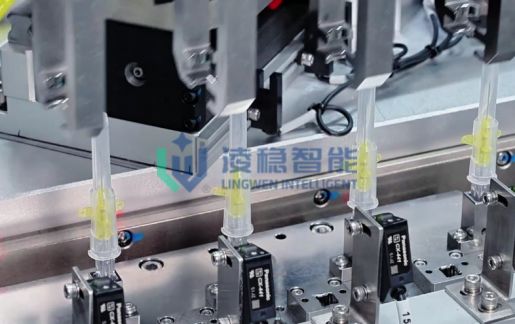

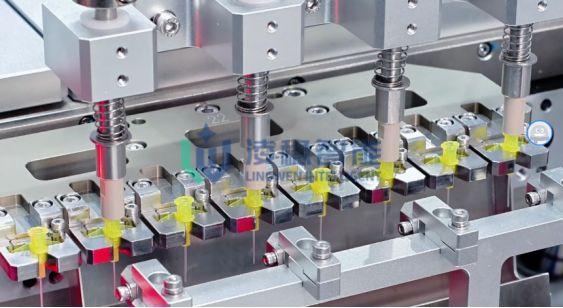

The whole assembly process is fully automated without manual intervention, which fundamentally avoids the pollution risk caused by manual contact. Specifically, the equipment first realizes the automatic sorting and accurate feeding of each component through the customized feeding mechanism, ensuring that the components are positioned correctly and stably; then, through the precision mechanical structure and servo control system, it completes the assembly of inner needle and outer needle, the connection of catheter and catheter hub, the installation of hemostatic valve and heparin cap, and other key processes with micron-level precision; in the process, the automatic siliconization mechanism adopts vertical silicification and air blowing technology to evenly coat the needle tip, greatly reducing the risk of residual silicone oil and improving the smoothness of needle insertion to reduce patient pain; finally, the finished products are automatically collected and sorted after passing multi-channel detection, and unqualified products are rejected in time to ensure the qualification rate of outgoing products.
Compared with traditional manual assembly and semi-automatic equipment, the medical automatic indwelling needle assembly equipment has obvious technical advantages in efficiency, quality, safety and cost control, which can effectively help medical device manufacturers improve their core competitiveness:
· High Efficiency and Stable Output: The equipment can operate 24 hours a day continuously, with only a small number of personnel needed for monitoring and maintenance. The assembly speed can reach 10-90 pieces per minute, which is 10 times higher than manual assembly. It can significantly break through the production capacity bottleneck, and the standardized operation ensures stable output, which is suitable for large-scale mass production. At the same time, the equipment can complete the switching of different specifications of indwelling needles in a few minutes through program adjustment, adapting to the production needs of small batches and multiple varieties.
· Precision Assembly and High Qualification Rate: Relying on high-precision sensors, precision fixtures and advanced motion control technology, the equipment achieves micron-level assembly precision, and the repeat error tends to zero, effectively ensuring the consistency of product size and assembly quality. It can accurately control the fitting gap between components, avoid assembly defects such as needle tip damage and loose connection. In addition, the equipment is equipped with an intelligent detection module, which can automatically detect burrs, angles, glue dosage, needle blockage and other defects in the assembly process, and immediately shut down and alarm when abnormalities are found, reducing the product defect rate from more than 5% in manual assembly to less than 0.5%.
· Sterile and Safe Production: The whole assembly process is carried out in a closed environment, and the equipment adopts food-grade and medical-grade materials that meet the international medical standards, which is corrosion-resistant and easy to clean and sterilize. It fundamentally avoids the pollution caused by manual contact, and strictly complies with the GMP production standards of medical devices, ensuring that the produced indwelling needles meet the clinical sterile requirements and reducing the risk of cross-infection in clinical use.
· Intelligent Management and Easy Maintenance: The equipment is integrated with Internet of Things technology and industrial control system, which can real-time collect production data such as output, qualification rate and equipment operation status, and display it in the form of data charts on the terminal, facilitating enterprises to carry out data-driven lean management. It can also predict equipment failures and carry out preventive maintenance, reducing unplanned downtime by 30%. In addition, the equipment adopts a modular design, which is convenient for layout and installation according to the actual production environment of customers, and greatly reduces the difficulty of maintenance and repair.
· Cost-saving and Long-term Value: Although the initial investment of the equipment is relatively high, it can replace a large number of repetitive labor positions, saving a lot of labor costs, management costs and training costs for enterprises. At the same time, the high-precision operation reduces the material waste caused by manual assembly errors, improving the material utilization rate by more than 25%. Generally, the equipment investment can be recovered within 2-3 years, bringing long-term economic benefits to enterprises.
Catheter assembly machines significantly enhance production efficiency by automating key stages of manufacturing. Automation streamlines repetitive tasks such as component assembly and quality control, enabling faster production cycles while reducing human error.
By minimizing manual labor, these machines not only speed up the manufacturing process but also ensure consistency across large-scale production. Automation guarantees that each catheter is assembled precisely, meeting the required specifications and reducing defects.

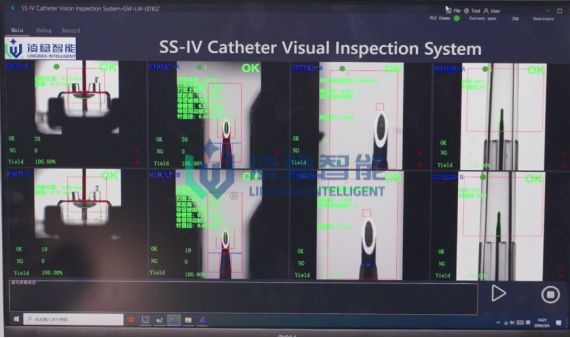

A key advantage of catheter assembly machines is their integration of advanced technology for quality control. Machines equipped with CCD cameras, sensors, and laser systems can monitor the production process in real-time, detecting even minor defects.
For example, CCD systems can identify issues like burrs on needles or irregularities in the catheter tubing, ensuring that only high-quality products are sent for further processing. This precision helps maintain safety standards and reduces the risk of faulty products reaching the market.
While the initial investment in catheter assembly machines can be substantial, their long-term cost-effectiveness is significant. By automating production, these machines reduce the need for manual labor, increasing both output and efficiency.
Over time, the machines lower operational costs by minimizing defects, waste, and material costs. The reduction in product recalls and the increased consistency in manufacturing provide a clear return on investment, making them financially advantageous in the long run.
For urinary catheters, assembly machines are designed to handle delicate materials like silicone or latex. These machines ensure that the balloon and valve systems are assembled with precision, allowing the catheter to function effectively and safely within the human body.
Automation guarantees consistency, preventing errors that could compromise the catheter’s performance or patient safety.
For complex catheter designs, such as those used in cardiovascular procedures, catheter assembly machines accommodate intricate components like guidewires, reinforcements, and specialized tips. These machines ensure that all parts are assembled with precision and tested for flexibility, strength, and resistance to pressure.
Catheter manufacturers must comply with several essential regulatory standards to ensure their products meet safety, quality, and performance criteria. Among the most significant are FDA and ISO standards, which govern the entire lifecycle of medical devices.
The table below summarizes key regulatory standards relevant to catheter manufacturing:
Regulation | Description |
FDA 21 CFR Part 820 | Covers the quality system regulations (QSR) for medical devices, ensuring safe and effective production. |
ISO 13485 | Quality management systems standard for medical devices, ensuring consistent design and production. |
ISO 10993 | Focuses on the biological evaluation of medical devices to ensure biocompatibility. |
Sterilization is a critical process in catheter manufacturing, ensuring that the product is free from harmful microorganisms before reaching the patient. Two widely used sterilization methods are ethylene oxide (EtO) and gamma radiation.
EtO sterilization works by introducing the ethylene oxide gas into a sealed chamber containing the catheters. The gas penetrates the materials and kills bacteria, viruses, and fungi, while maintaining the integrity of delicate catheter components.
Gamma radiation sterilization uses high-energy gamma rays to kill microorganisms. This method is ideal for products that can withstand radiation, such as disposable medical devices. It ensures thorough sterilization while maintaining product safety.
Both methods are essential for ensuring sterility in medical catheters, allowing them to be safely used in medical procedures.
Smart catheters represent a significant advancement in catheter technology, equipped with sensors and electronic components that enable real-time monitoring. These innovations enhance the precision and safety of medical procedures by providing clinicians with immediate data on the catheter’s position, pressure, and other critical factors during use.
As smart catheters gain traction, catheter assembly machines are evolving to accommodate the integration of advanced components, such as sensors and microelectronics. These machines now include specialized features to assemble and test catheters with integrated technologies, ensuring smooth functionality and precise manufacturing.
The future of catheter manufacturing is heavily influenced by advancements in automation and artificial intelligence (AI). These technologies promise to revolutionize how catheters are produced, offering greater efficiency and precision.
● Automation: With automated systems, manufacturers can achieve faster production rates and improve quality control by reducing human error.
● AI and predictive analytics: AI will enable real-time monitoring of production quality, predicting potential failures before they occur and optimizing workflows.
● 3D printing: 3D printing is expected to further disrupt catheter production, enabling highly customized catheter designs tailored to individual patient needs.
Catheter construction involves precision, material selection, and advanced machinery. Catheter assembly machines play a crucial role in automating the process, ensuring efficiency and quality. These machines integrate components like the catheter tube, needle, and wing house, maintaining high safety standards. Suzhou Ling Wen Intelligent Equipment Co., Ltd. provides innovative solutions in catheter production, offering machines that enhance efficiency and meet strict regulatory requirements. Their products ensure quality, precision, and compliance in the manufacturing process.
A: A catheter assembly machine automates the process of integrating various catheter components, ensuring precision and consistency in manufacturing, critical for meeting medical standards.
A: It enhances speed, reduces human error, and ensures consistent quality control, which is vital for large-scale catheter manufacturing.
A: Catheter assembly machines can handle various materials, including polyurethane, PTFE, and silicone, depending on the type of catheter being produced.
A: While the initial investment may be high, the machine's automation improves efficiency, reduces labor costs, and ensures fewer defects, ultimately lowering long-term production costs.
A: Yes, these machines can be customized to assemble various types of catheters, such as urinary and cardiovascular catheters, based on specific production requirements.
