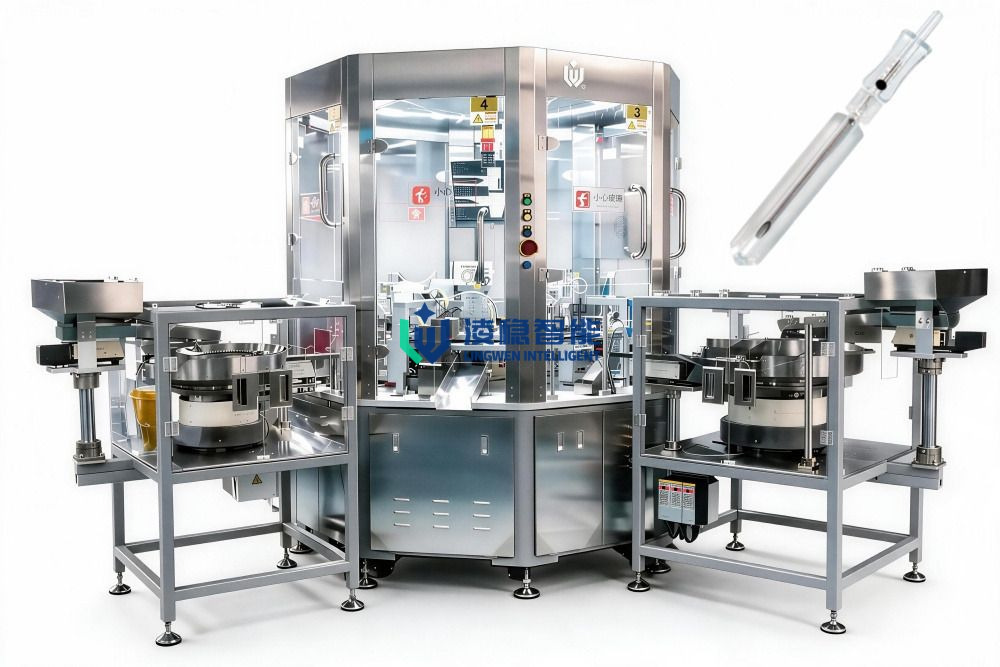

Automatic Spike Needle Assembly Machine

Automatic Spike Needle Assembly Machine

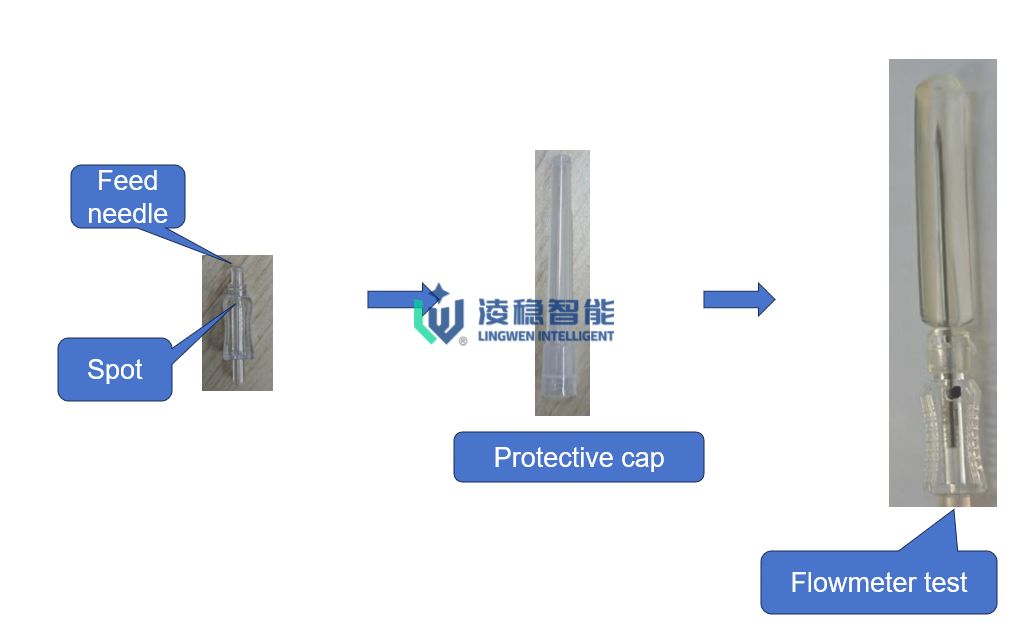

1、Process flow chart:

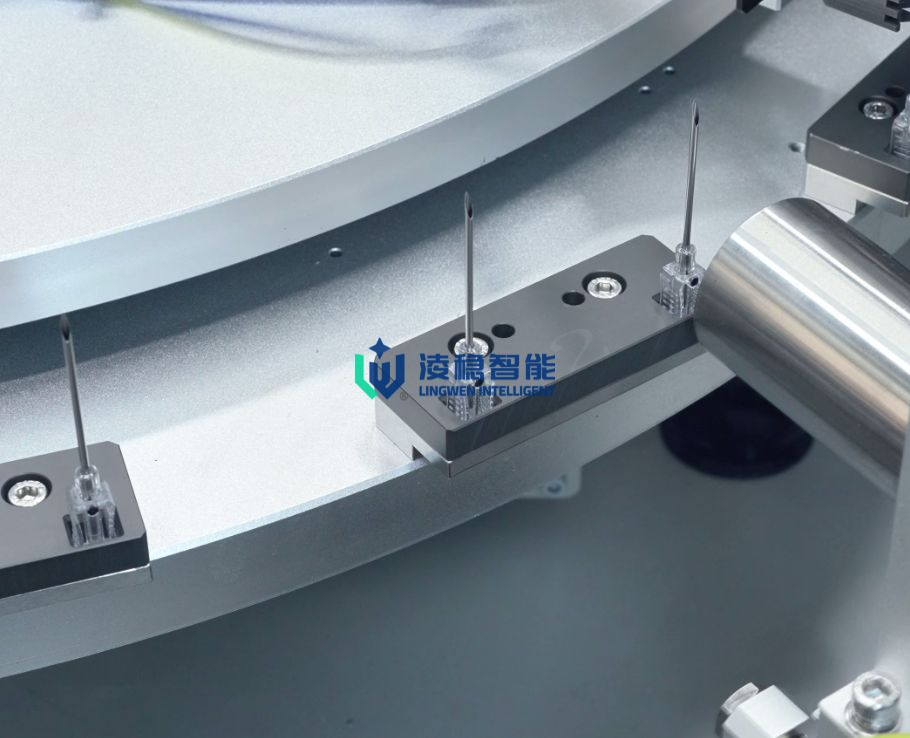

1)  Automatic feeding needle hub and needle

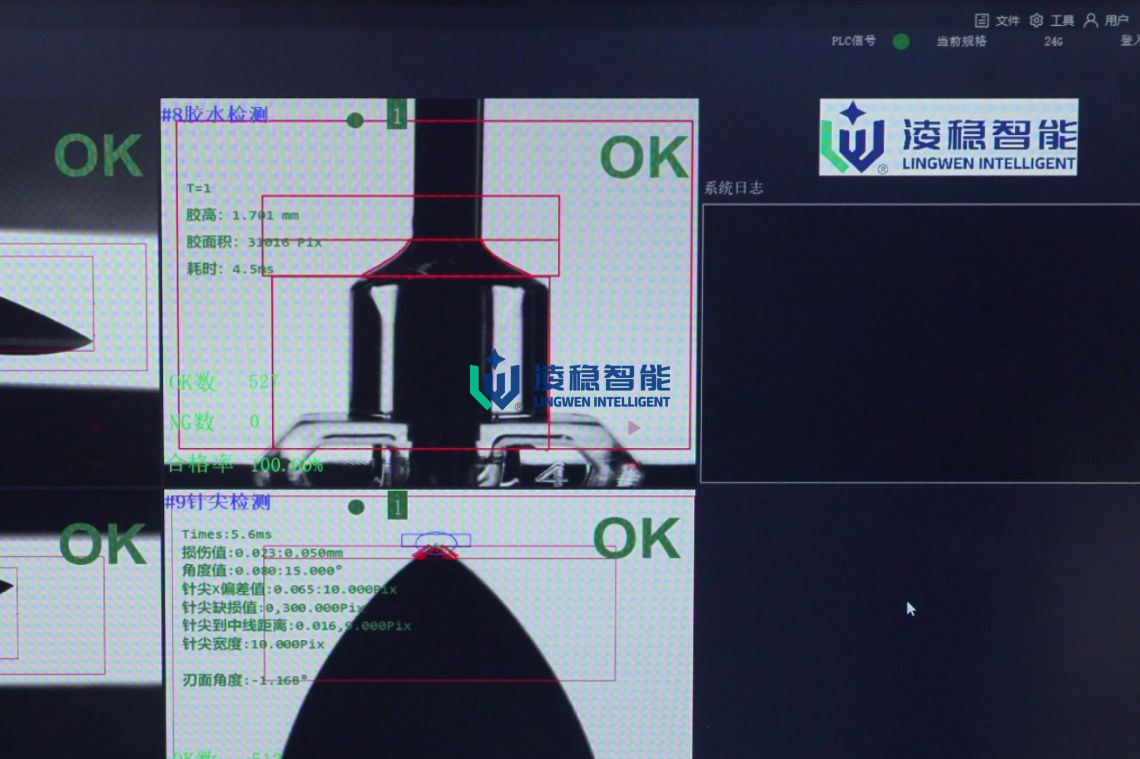

2)  Apply uv gule and CCD check

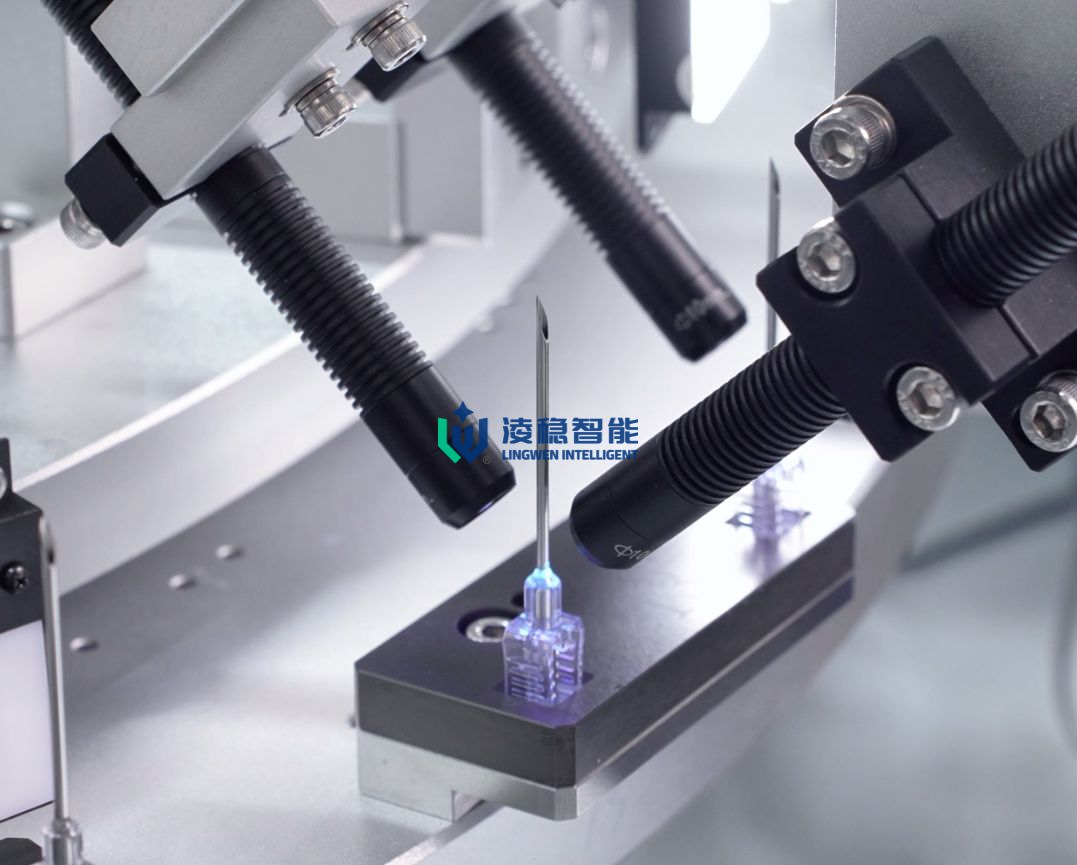

3)  Solidification

4)  The Quality checky by CCD

5)  Automatic feeding protectivecover

6)  Automatic printing black spot

7)  Unloading valid and invalid products

2、Machine Functions:

3、Machines' advantage :

1)  Precise measurement by CCD camera.

2)  Automatically control the UV gule volume.

3)  With device to remote torque control and monitoring of production

4)  All components could be fed by vibratory feeder controllers

5)  The needle angle ±15°

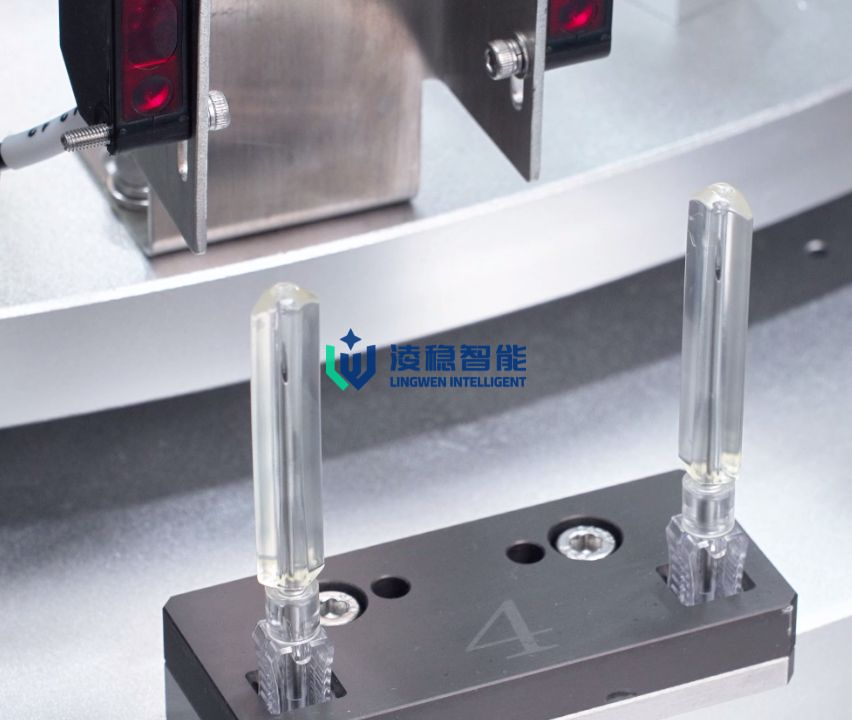

5)  The equipment is equipped with detection sensors to detect whether the transfer is ok or not.

4、Lead time

      3~4 months

5、Packaging

      Wooden case

6、Warranty time

       1 year

7、After-sales service

      Support 7*24H,training support，Installation, wear parts.
