Lingwen30
LW

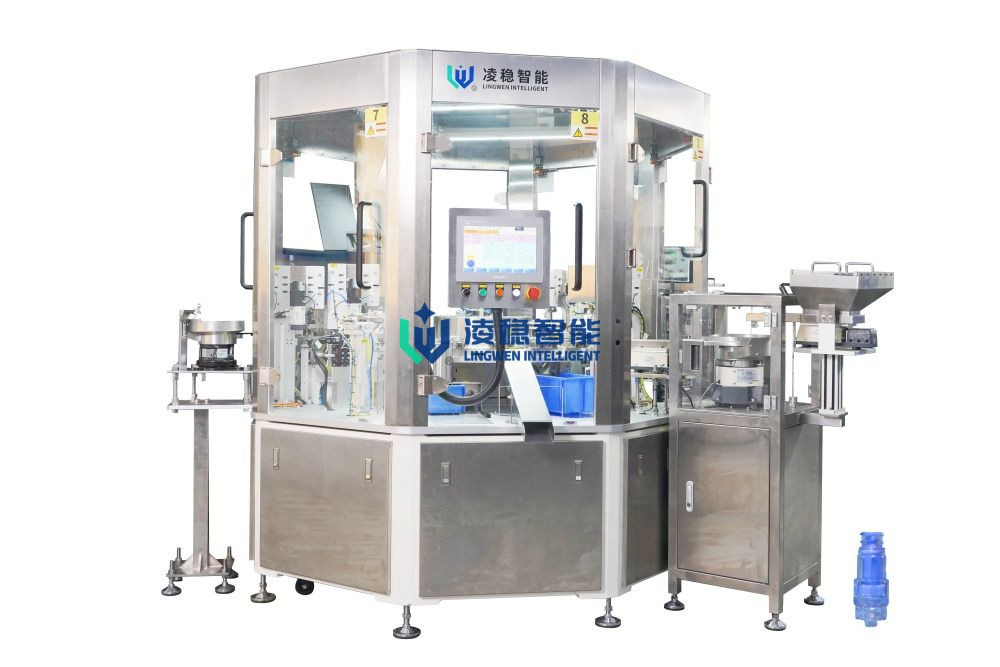

Automatic Assembly Machine for Positive Connector

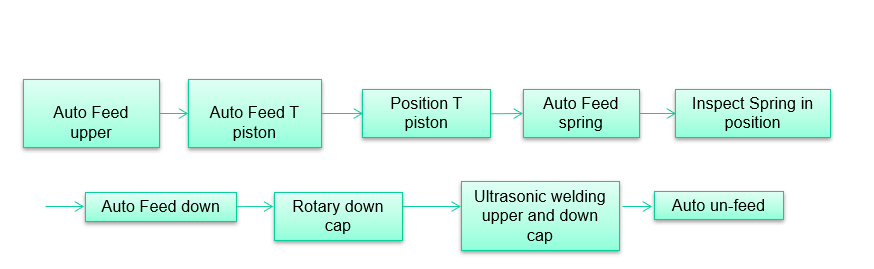

1、Process flow chart:

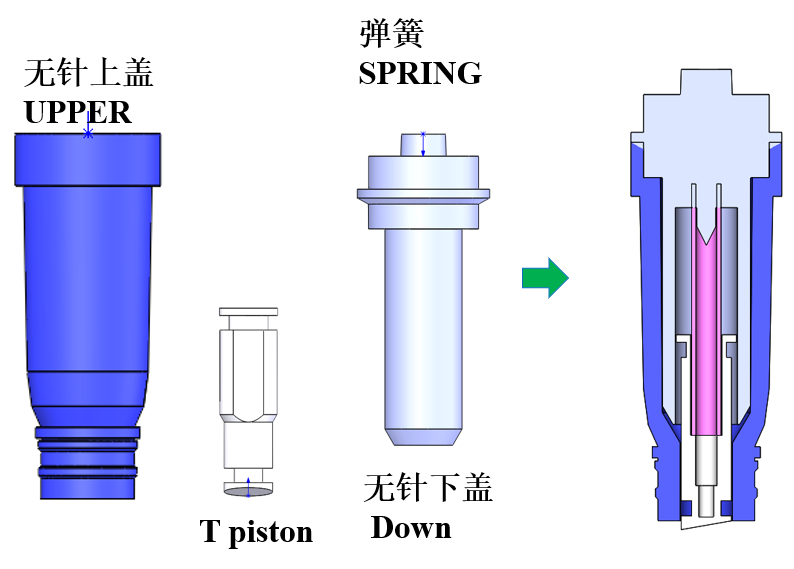

1) Automatically feeding needlefee upper cap
2) Automatically feeding T piston
3) Automatically feeding needlefree down cap
4) With CCD test for each parts in position
5) Ultrasonic welding down and upper
6) Automatically unloading finished products
2、Machine Functions:
4) With CCD testing for components
5) Rejection rate ≤2%
6 ) Utilization rate ≥95%
7 ) Power: 5KW
3、Machines' advantage :
1) Automatically Feed spring ,cover cap, and all components by vibratory feeder controllers
2) More functions： Apply silicone oil, Ultrasonic welding activation test ,flow amount test
3) Machine is equipped with OK and NG products stations by CCD.
4) With stable sideway device make sure all fixtures moving smoothly
5) With automatic unloading system，Precision flow sensor for flow detection
6) With automatic unloading system
7) For negative products could be recognized ,and then designed with negative station.
4、Lead time
4 months
5、Packaging
Wooden case
6、Warranty time
1 year
7、After-sales service
Support 7*24H,training support，Installation, wear parts.
