LW02
Lingwen

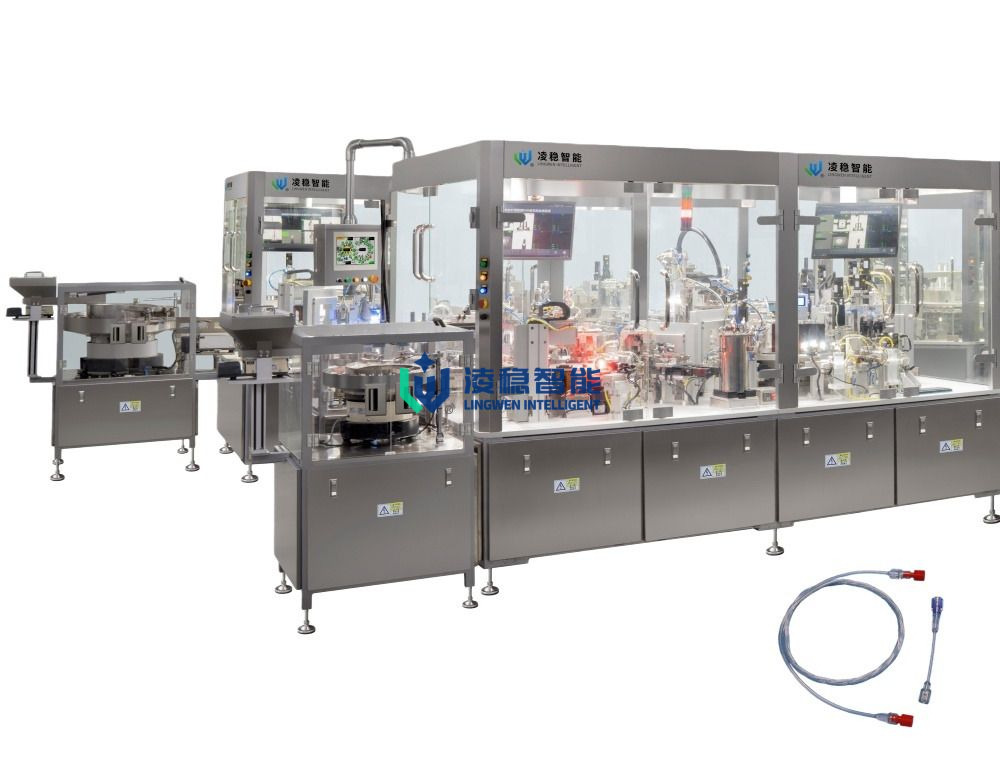

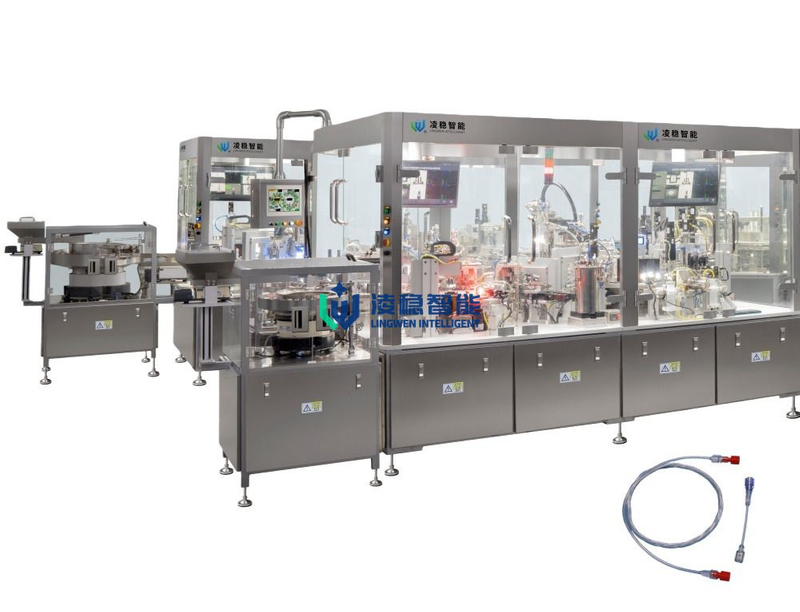

Automatic Assembly Machine for Extension Tube

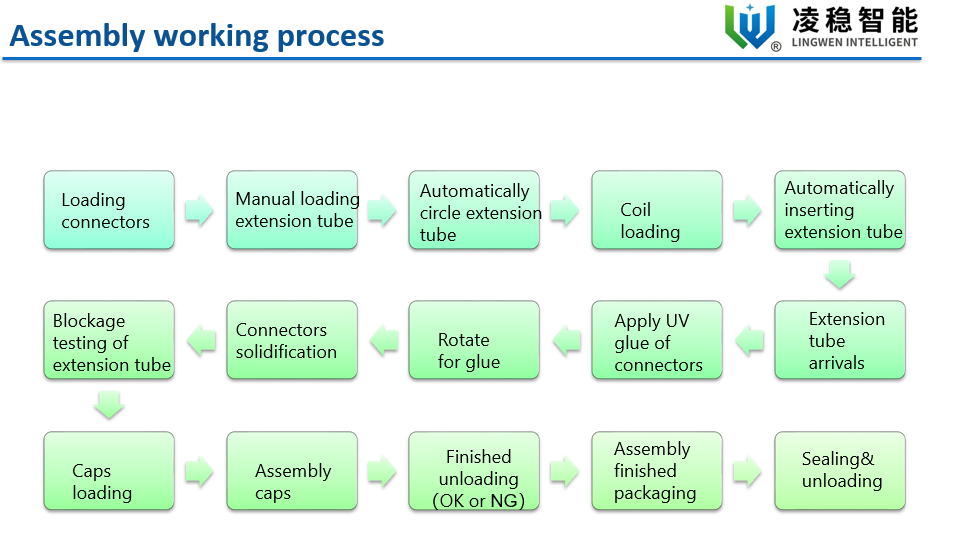

1、Process flow chart:
1) Automatic feeding connectors
2) Feed tube
3) Dispense UV glue
4) Curing
5) Leakage testing
6)Unload finished products

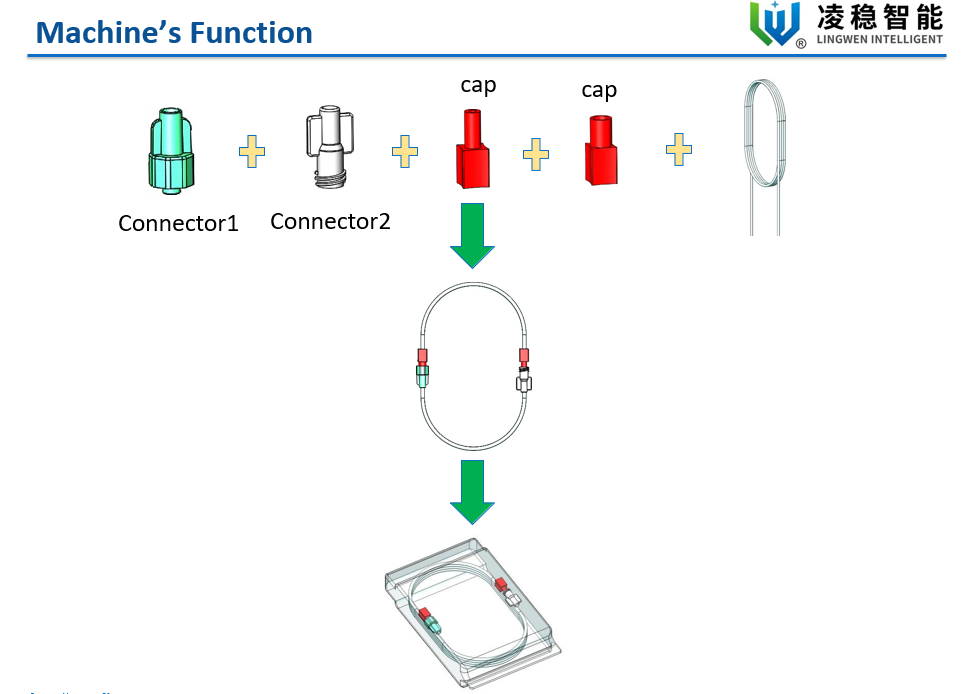

2、Machine Functions:
1 ) Machine can feed all the components automatically
2 ) Apply UV adhesive and make solidification by mineralight
3 ）Rolling straight tube to coil tube
4 ）Extension tube machine can test blockage and leakage functions
5 ）Checking the product is properly inserted or not by sensors
6 ） The blocking lifting cylinder rises, and the sealing core seals the product for blowing
7 ) Automatic assembly machine for extension tube ,flow sensors detect the flow within the product to determine whether it is leaked or blocked
3、lead time
4 months
4、Packaging
Wooden case
5、warranty time
1 year
6、After-sales service
support 7*24H,training support，Installation, wear parts..
