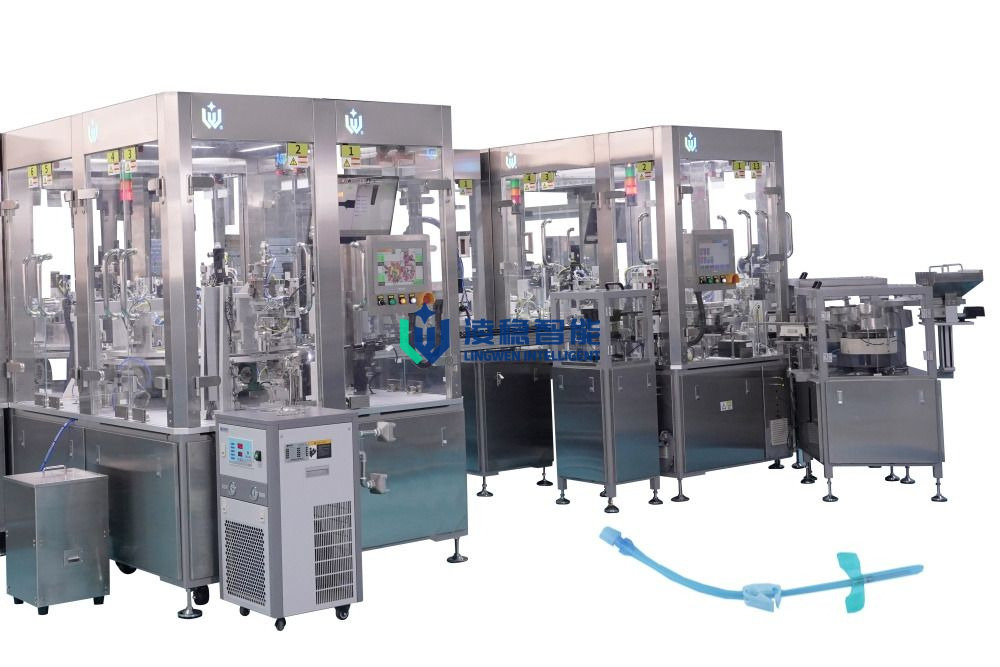

AV Fistula Needle Subassembly Machine

Automatic Assembly Machine for AV Fistula Needle Subassembly

1、Process flow chart:

1) Automatically feeding needle

2) Automatically feeding needle hub with wing

3) Dispense UV glue for needle and needle hub bonding and curing

4) With CCD test for needle tip ,

5) Apply silicon oil for needle tip and blowing air to clean .

6) Automatically feeding protective cap

7) Unload finished products

2、Machine Functions:

3、Machines' advantage :

1) AV-fistula needle machine could feed all components by vibratory feeder controllers

2) Machine is equipped with adhesive dispensing system

3) With automatic testing device for glue and flow meters

4) Inside of needle with silicone oil two times

5) With stable sideway device make sure all fixtures moving smoothly

6) With automatic unloading system，Precision flow sensor for flow detection.

7) With automatic unloading system

8) AV fistula needle subassembly machine is designed with monitoring date for NG/OK products

9) For negative products could be recognized ,and then designed with negative station.

4、Lead time

      4  months

5、Packaging

      Wooden case

6、Warranty time

      1 year

7、After-sales service

       support 7*24H,training support，Installation, wear parts..
