Lingwen20
LW

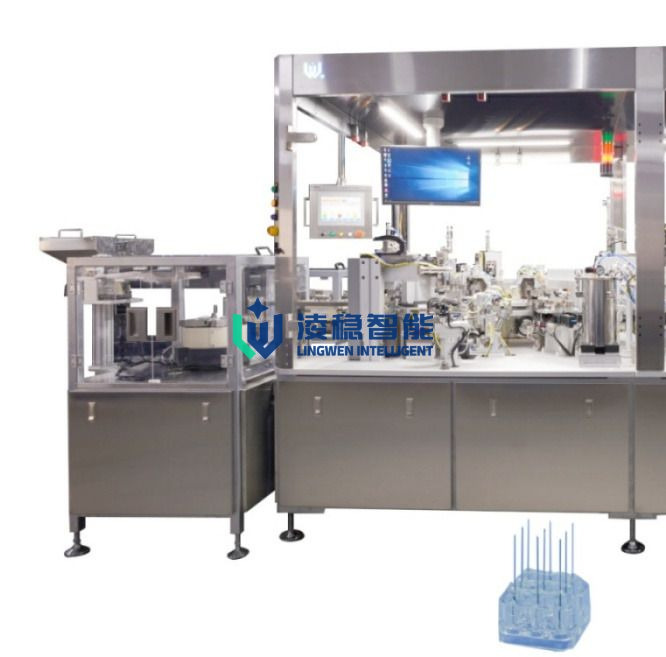

Automatic Assembly Machine for 9pin Screw Multi Needle
1、Process flow chart:
1) Automatic feeding cover subassembly to fixtures
2) Automatic feeding needles
3) Press the needle to the cover
4) CCD test needle
5) Automatic Robot unload the products
2、Machine Functions:
1 ) Use vision system to check tip needle quality and needle length, needle length control accuracy ±0.05mm
2 ) Production data can be traced
3 ) Monitoring needle quality by CCD
4 ) High efficient and capacity
5 ）Assembly machine with precise mechanical operation and sensors.
4. Machine Advantages:
1) Monitoring has no needle station by CCD, apply UV adhesive, feed needle with vacuum suctions
2) 9pin screw multi needle machine is equipped with four-axis robot for unloading finish products
3) The equipment structure ergonomically convenient for maintenance
4) Each station of the equipment be able to reset and run a cycle independently
5) We have fully auto and semi-auto machine for choosing
3、lead time
4 months
4、Packaging
Wooden case
5、warranty time
1 year
6、After-sales service
Support 7*24H,training support，Installation, wear parts..
