LW19
Lingwen

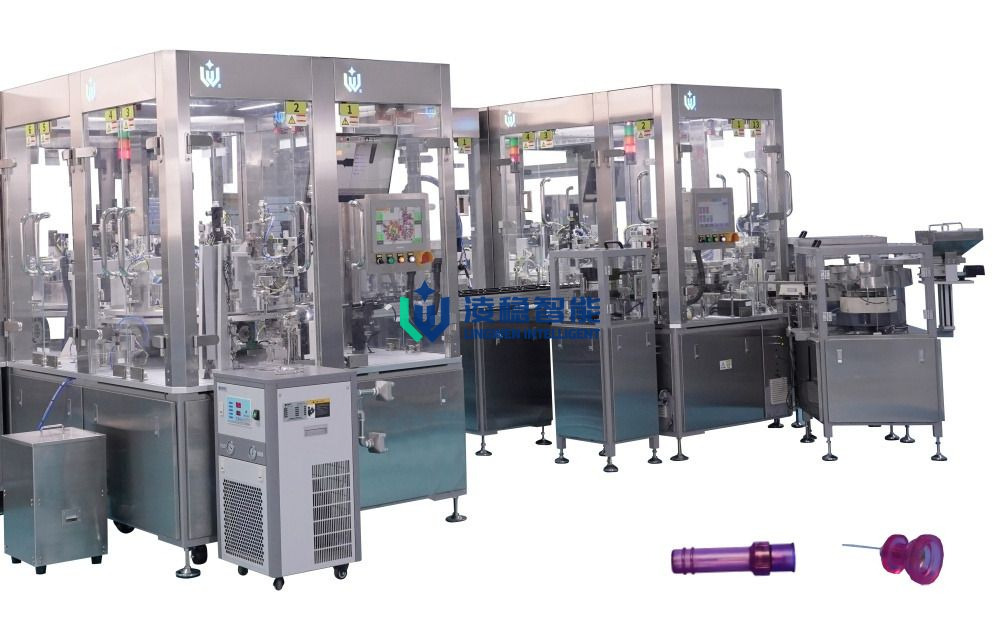

Automatic Assembly Machine for Insulin Pump Needle

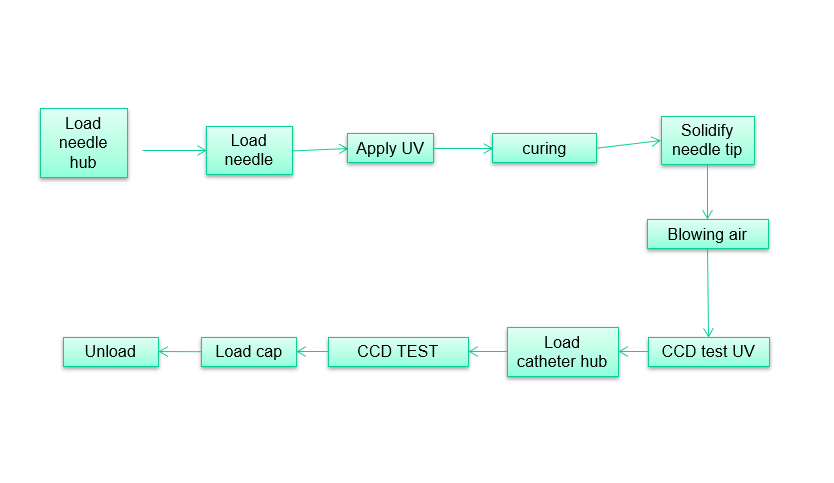

1、Process flow chart:

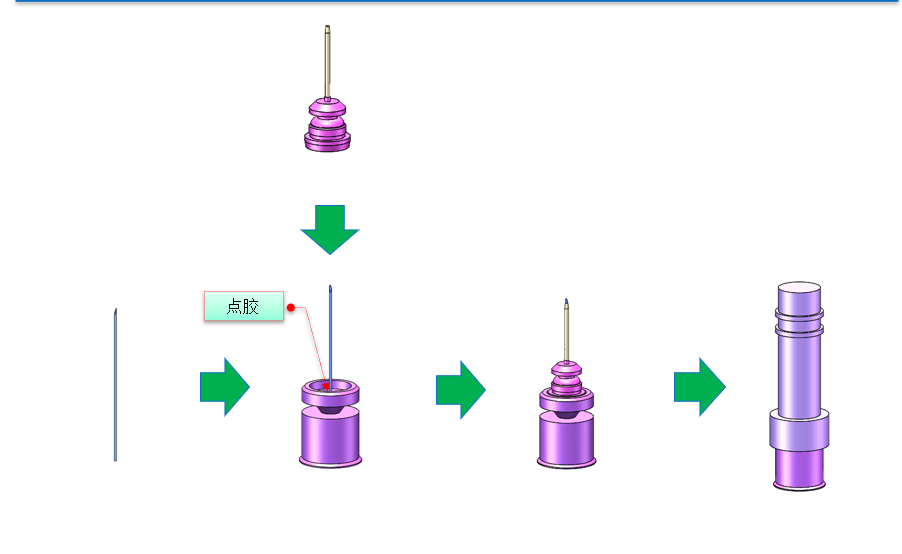

1) Automatic needle subassembly machine: needle, needle hub with UV glue
2) Assembly tube subassembly : catheter hub, tube, bushing, and tip forming
3) With CCD test for needle tip , glue , and distance
4) Unloading valid and invalid products
2、Machine Functions:
4) With CCD testing device by Basler cammera to make sure needle tip quality.
5) Rejection rate ≤2%
6 ) Utilization rate ≥95%
7 ) Compatible for 29G/30G/31G/32G/33G
3、Machines' advantage :
1) Automatic device for insulin pump needle could realize lots of functions,
2) CCD detect the tip forming result of cannula
3) We own special tip forming craft to make sure the mold using 200000times
4) With stable temperature control system to make sure the quality of tip forming
5) With our CCD testing to make sure the quality of insulin pump
6) Needle through the rivet, needle tip damage ratio less than 1/1000.
4、Lead time
4 months
5、Packaging
Wooden case
6、Warranty time
1 year
7、After-sales service
Support 7*24H,training support，Installation, wear parts..
